air/water hose reel 10x14 - 10 metres
ONLINE CATALOGUE › HOSE REEL › Hose reel for compressed air and water
Download sheet in pdf format

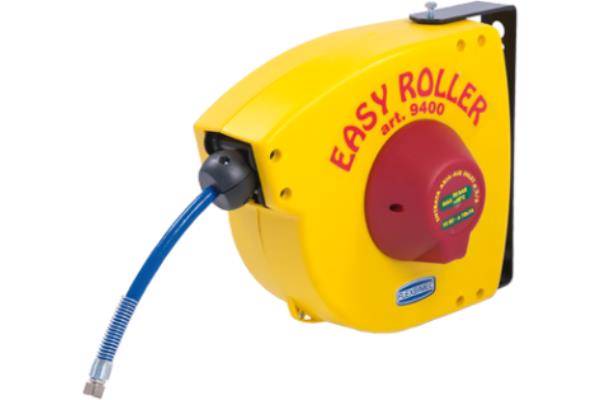

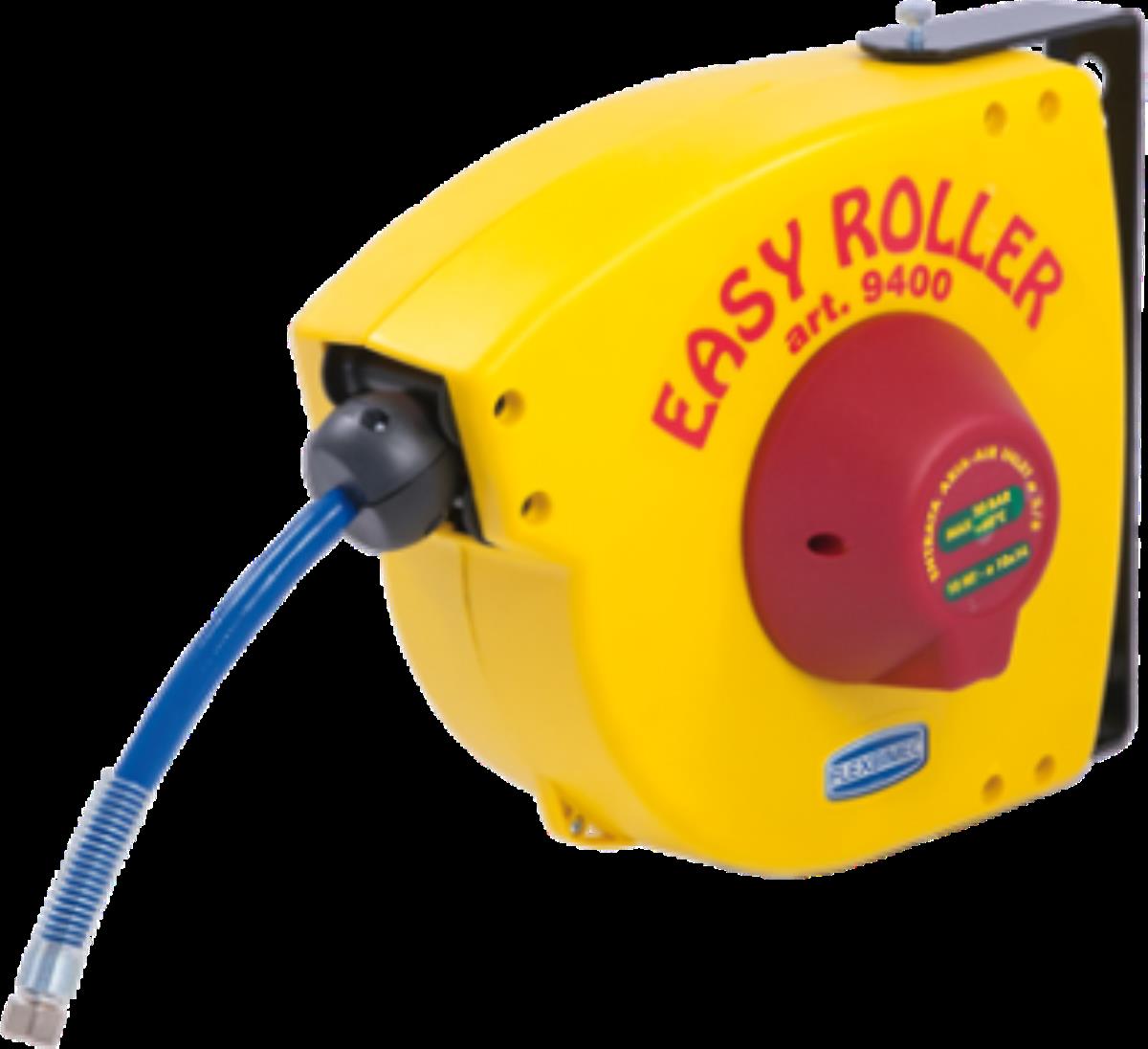

AUTOMATIC HOSE REEL WITH PLASTIC HOSE (NYLON+POLYPROPYLENE) WITH ADJUSTABLE FIXING BRACKET, SUITABLE FOR BEING USED FOR PASSING COMPRESSED AIR OR WATER AT A MAXIMUM PRESSURE OF 20 BAR.
COMPLETE WITH 10 METERS LONG BLUE POLYURETHANE HOSE DN 10x14.
MAXIMUM USE TEMPERATURES: -10° +60°C
3/8" BSP MALE BRASS INLET AND OUTLET FITTINGS
STANDARD COLOR RED WITH YELLOW COVER
ALSO AVAILABLE: BLUE with red cover - Dark GRAY - YELLOW with red cover - WHITE
WEIGHT: 8.20 kg
Dimensions 200x310x380
COMPLETE WITH 10 METERS LONG BLUE POLYURETHANE HOSE DN 10x14.
MAXIMUM USE TEMPERATURES: -10° +60°C
3/8" BSP MALE BRASS INLET AND OUTLET FITTINGS
STANDARD COLOR RED WITH YELLOW COVER
ALSO AVAILABLE: BLUE with red cover - Dark GRAY - YELLOW with red cover - WHITE
WEIGHT: 8.20 kg
Dimensions 200x310x380
