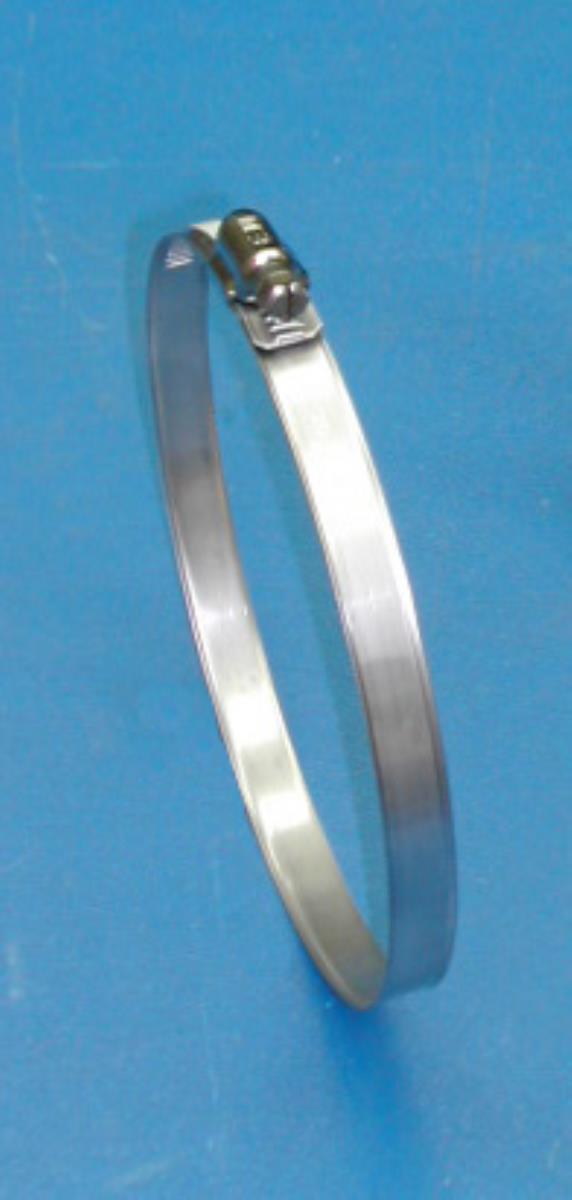

NORMAL CLAMP W2 9mm band
ONLINE CATALOGUE › CLAMPS AND TIGHTENING SYSTEMS › SCREW CLAMP AISI 430 - W2
Download sheet in pdf format
TORRO cable tie made in Germany with high performance and seals.
The shape of the screw/drawer system is able to guarantee high tightening torques and satisfy the most demanding applications; the edges of the band are rounded to avoid damage to the tubes.
BAND 9 mm
standard supply entirely in W2 AISI 430 steel
– Asymmetrical case to prevent the drawer from twisting when closing
– uniform distribution of forces and safe assembly. Screw with integrated guide collar
– ease of assembly thanks to the collar integrated into the screw that guides the cable tie tape
– Construction material and clamping range indicated on the tape
– prevention of errors Asymmetric drawer position
– prevents the case from tilting when tightening the small drawer saddle clamp
– uniform distribution of contact pressure
– better efficiency Smooth or internally printed ribbon
– optimal protection of the tube thanks to the band with rounded edges
The shape of the screw/drawer system is able to guarantee high tightening torques and satisfy the most demanding applications; the edges of the band are rounded to avoid damage to the tubes.
BAND 9 mm
standard supply entirely in W2 AISI 430 steel
– Asymmetrical case to prevent the drawer from twisting when closing
– uniform distribution of forces and safe assembly. Screw with integrated guide collar
– ease of assembly thanks to the collar integrated into the screw that guides the cable tie tape
– Construction material and clamping range indicated on the tape
– prevention of errors Asymmetric drawer position
– prevents the case from tilting when tightening the small drawer saddle clamp
– uniform distribution of contact pressure
– better efficiency Smooth or internally printed ribbon
– optimal protection of the tube thanks to the band with rounded edges
closing field | PACKAGING |
| 8-12 | 100 |
| 8-16 | 100 |
| 12-20 | 100 |
| 16-25 | 100 |
| 16-27 | 100 |
| 25-32 | 100 |
| 25-40 | 100 |
| 30-45 | 100 |
| 35-50 | 50 |
| 40-60 | 50 |
| 50-70 | 50 |
| 60-80 | 25 |
| 70-90 | 25 |
| 80-100 | 25 |
| 90-110 | 25 |
| 100-120 | 10 |
| 110-130 | 10 |
| 120-140 | 10 |
| 130-150 | 10 |
| 140-160 | 10 |
