FOOD GRADE PVC HOSE
ONLINE CATALOGUE › HOSES › Water delivery hoses
Download sheet in pdf format

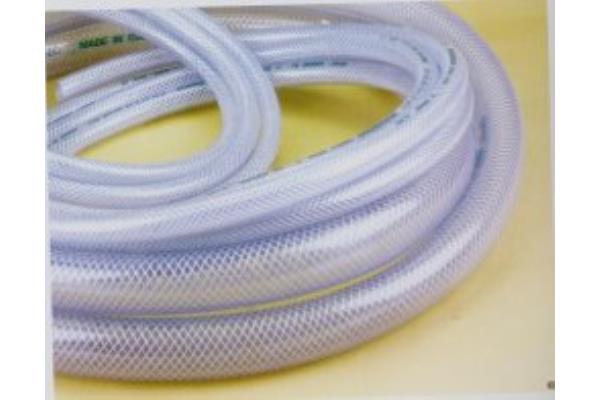

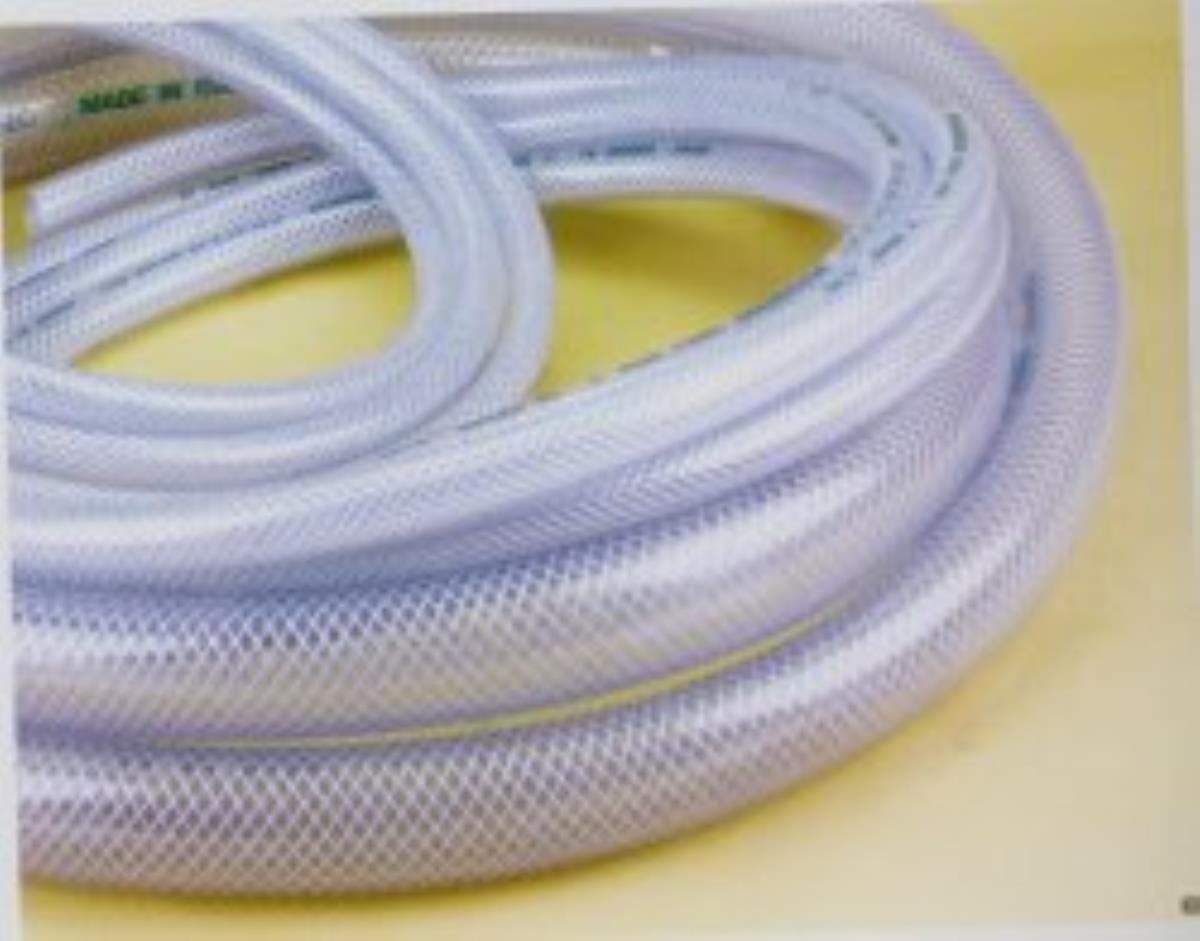

NON-TOXIC transparent wired PVC flexible hose. Phthalate free with internal polyester fiber reinforcement.
Suitable for contact with food according to:
- Ministerial Decree 21/03/73 and subsequent updates
- EU Regulation 10/2011, 2007/19 simulants ABCD1 and subsequent amendments.
Operating temperature from -5°C to +60°C
APPLICATIONS:
chemical plants, automatic cleaning systems, pneumatic equipment, level indicators, transfer of acids, salts, bases, transport of aggressive chemicals, compressed air, food industry.
Suitable for contact with food according to:
- Ministerial Decree 21/03/73 and subsequent updates
- EU Regulation 10/2011, 2007/19 simulants ABCD1 and subsequent amendments.
Operating temperature from -5°C to +60°C
APPLICATIONS:
chemical plants, automatic cleaning systems, pneumatic equipment, level indicators, transfer of acids, salts, bases, transport of aggressive chemicals, compressed air, food industry.
| diameter INTERNAL |
diameter EXTERNAL |
PRESSURE BAR |
ROLL m |
| 4 | 10 | 17 | 100 |
| 5 | 11 | 17 | 100 |
| 6 | 12 | 20 | 100 |
| 8 | 14 | 15 | 100 |
| 10 | 16 | 15 | 100 |
| 12 | 18 | 12 | 50 |
| 13 | 19 | 12 | 50 |
| 15 | 21 | 10 | 50 |
| 16 | 22 | 10 | 50 |
| 19 | 26 | 8 | 50 |
| 22 | 30 | 8 | 50 |
| 25 | 33 | 8 | 50 |
| 30 | 38 | 5 | 50 |
| 32 | 42 | 5 | 50 |
| 35 | 45 | 5 | 50 |
| 38 | 48 | 5 | 50 |
| 40 | 50 | 3 | 50 |
| 50 | 62 | 3 | 25 |
