Conical male hose connector
ONLINE CATALOGUE › FITTINGS FOR COMPRESSED AIR › FITTINGS AND CONNECTIONS FOR PNEUMATIC SYSTEMS › Standard 400 series
Download sheet in pdf format
Code: 454

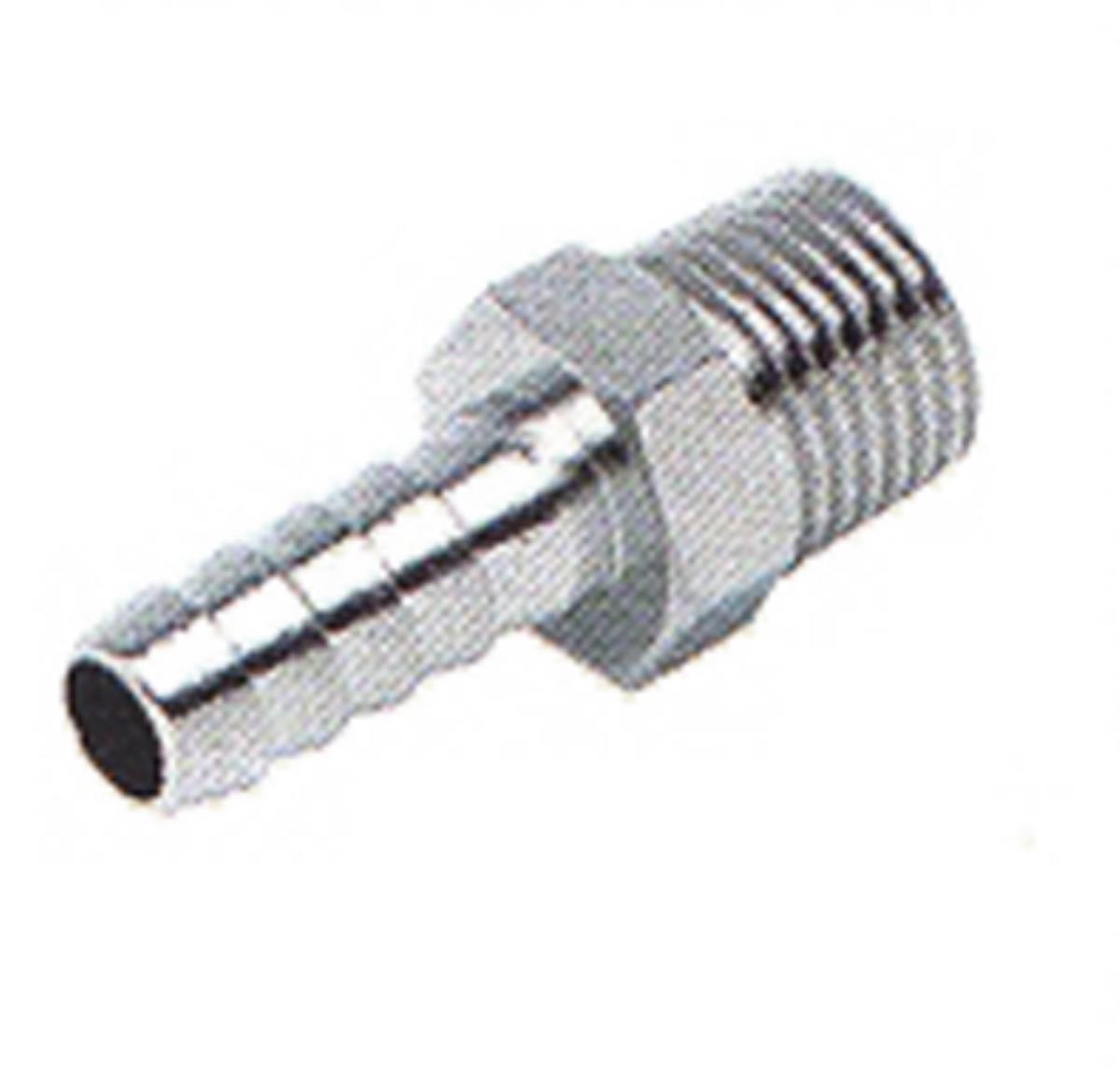

Nickel-plated brass fitting with barbed hose holder and BSPT conical male thread
MINIMUM PACKAGES OF 10 PIECES.
Nickel-plated brass fitting with barbed hose holder and BSPT conical male thread
MINIMUM PACKAGES OF 10 PIECES.
| Code | Measure |
|---|---|
| 32A45404-5M | 4 - 5M |
| 32A45404-1/8 | 4 - 1/8 |
| 32A45406-1/8 | 6 - 1/8 |
| 32A45406/1/4 | 6 - 1/4 |
| 32A45407-1/8 | 7 - 1/8 |
| 32A45407-1/4 | 7 - 1/4 |
| 32A45408-1/8 | 8 - 1/8 |
| 32A45408-1/4 | 8 - 1/4 |
| 32A45409-1/8 | 9 - 1/8 |
| 32A45409-1/4 | 9 - 1/4 |
| 32A45409-3/8 | 9 - 3/8 |
| 32A45409-1/2 | 9 - 1/2 |
| 32A45410-1/8 | 10 - 1/8 |
| 32A45410-1/4 | 10 - 1/4 |
| 32A45410-3/8 | 10 - 3/8 |
| 32A45410-1/2 | 10 - 1/2 |
| 32A45412-1/4 | 12 - 1/4 |
| 32A45412-3/8 | 12 - 3/8 |
| 32A45412-1/2 | 12 - 1/2 |
| 32A45414-3/8 | 14 - 3/8 |
| 32A45414-1/2 | 14 - 1/2 |
| 32A45416-3/8 | 16 - 3/8 |
| 32A45416-1/2 | 16 - 1/2 |
| 32A45416-3/4 | 16 - 3/4 |
| 32A45417-3/8 | 17 - 3/8 |
| 32A45417-1/2 | 17 - 1/2 |
| 32A45418-3/8 | 18 - 3/8 |
| 32A45418-1/2 | 18 - 1/2 |
| 32A45418-3/4 | 18 - 3/4 |
| 32A45420-3/8 | 20 - 3/8 |
| 32A45420-1/2 | 20 - 1/2 |
| 32A45420-3/4 | 20 - 3/4 |
| 32A45425-3/4 | 25 - 3/4 |
| 32A45425-1 | 25 - 1 |
