Standard 400 series
ONLINE CATALOGUE
›
FITTINGS FOR COMPRESSED AIR
›
FITTINGS AND CONNECTIONS FOR PNEUMATIC SYSTEMS
Threaded fittings, nipples, reductions, sleeves in nickel-plated BRASS.

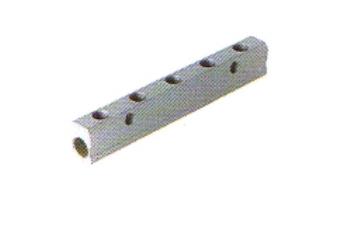

Aluminum distributor
Code measure - 1/4 - 1/8 x 2 32a4101/4-1/8x3 1/4 - 1/8 x 3 32a4101/4-1/8x4 1/4 - 1/8 x 4 32a4101/4-1/8x5 1/4 - 1/8 x 5 3...

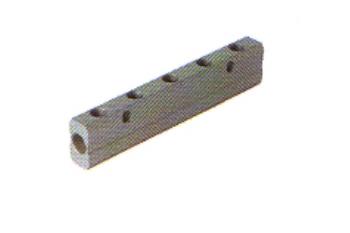

Aluminum distributor
Code measure - 1/4 - 1/8 x 2 32a4111/4-1/8x3 1/4 - 1/8 x 3 - 1/4 - 1/8 x 4 32a4101/4-1/8x5 1/4 - 1/8 x 5 32a4101/4-1/8x6...

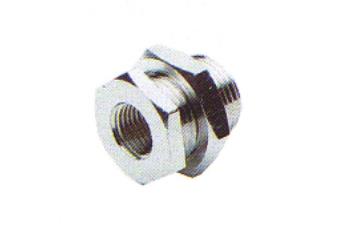

Bulkhead
Code measure - 5m 32a4201/8 1/8 32a4201/4 1/4 32a4203/8 3/8 32a4201/2 1/2

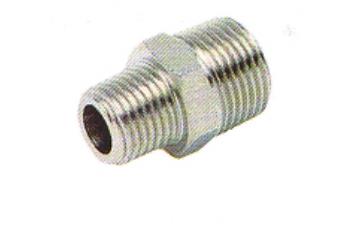

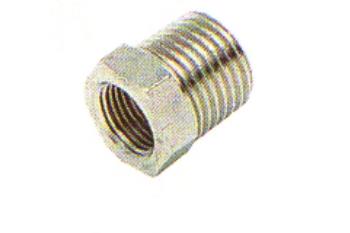

Conical M/M reduction
Code measure 32a4301/8-1/4 1/8 - 1/4 32a4301/8-3/8 1/8 - 3/8 32a4301/8-1/2 1/8 - 1/2 32a4301/4-3/8 1/4 - 3/8 32a4301/4-1...

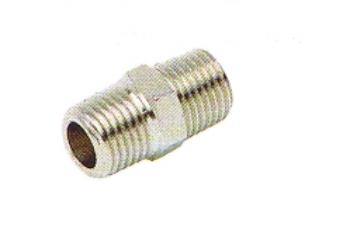

Conical M/M nipple
Code measure 32a4411/8 1/8 32a4411/4 1/4 32a4413/8 3/8 32a4411/2 1/2 32a4413/4 3/4 32a4411 1"

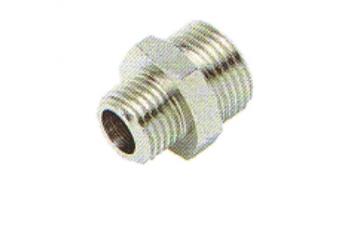

Cylindrical M/M nipple
Code measure 32a4425m 5m 32a4421/8 1/8 32a4421/4 1/4 32a4423/8 3/8 32a4421/2 1/2

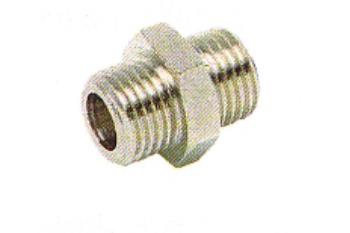

Cylindrical M/M reduction
Code measure 32a44305m-1/8 5m - 1/8 32a4431/8-1/4 1/8 - 1/4 32a4431/8-3/8 1/8 - 3/8 32a4431/4-3/8 1/4 - 3/8 32a4431/4-1/...

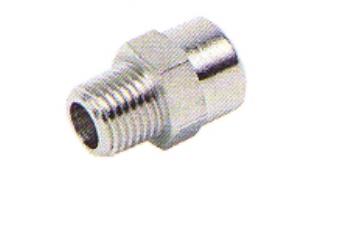

Conical M/F reduction
Code measure 32a4441/8-1/8 1/8 - 1/8 32a4441/4-1/8 1/8 - 1/4 32a4443/8-1/8 1/8 - 3/8 32a4441/4-1/4 1/4 - 1/4 32a4443/8-1...

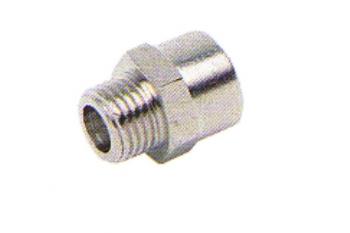

Cylindrical M/F reduction
Code measure 32a4451/8-05m 5m - 1/8 32a4451/8-1/8 1/8 - 1/8 32a4451/4-1/8 1/8 - 1/4 32a4453/8-1/8 1/8 - 3/8 32a4451/4-1/...

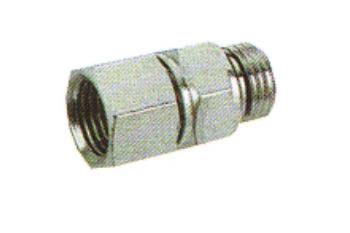

Rotating cylindrical male-female reduction
Code measure 32a4461/8 1/8 32a4461/4 1/4 32a4463/8 3/8

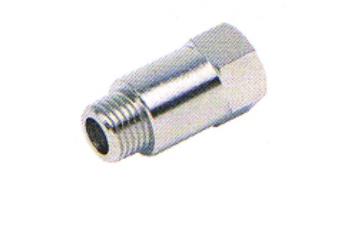

Cylindrical M/F extension
Code measure 32a4471/8-25 1/8 l= 22 32a4471/8-45 1/8 l=42 32a4471/4-35 1/4 l=35 32a4471/4-50 1/4 l=51
Conical M/F reduction
Code measure 32a4481/8-1/4 1/4 - 1/8 32a4481/8-3/8 3/8 - 1/8 32a4481/8-1/2 1/2 - 1/8 32a4481/4-3/8 3/8 - 1/4 32a4481/4-1...
Cylindrical M/F reduction
Code measure 32a44905m-1/8 1/8 - 5m 32a4491/8-1/4 1/4 - 1/8 32a4491/8-3/8 3/8 - 1/8 32a4491/8-1/2 1/2 - 1/8 32a4491/4-3/...

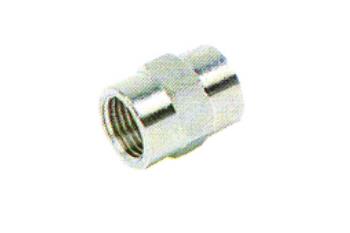

Sleeve
Code measure 32a4505m 5m 32a4501/8 1/8 32a4501/4 1/4 32a4503/8 3/8 32a4501/2 1/2 32a4503/4 3/4

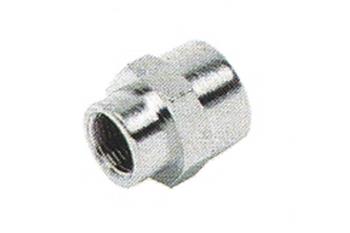

Reduced sleeve
Code measure - 5m - 1/8 32a4511/4-1/8 1/8 - 1/4 32a4513/8-1/8 1/8 - 3/8 32a4511/2-1/8 1/8 - 1/2 32a4513/8-1/4 1/4 - 3/8 ...

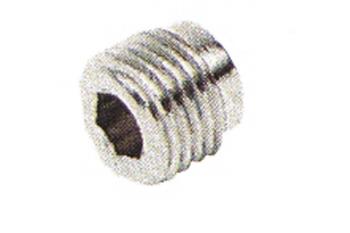

452/B Male cap cylindrical hexagon socket
Code measure - 1/8 - 1/4 32a452b3/8 3/8 32a452b1/2 1/2

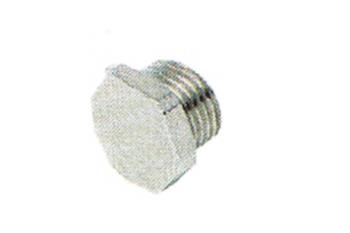

Cylindrical cap
Code measure 32a45205m 5m 32a4521/8 1/8 32a4521/4 1/4 32a4523/8 3/8 32a4521/2 1/2 32a4523/4 3/4 - 1"

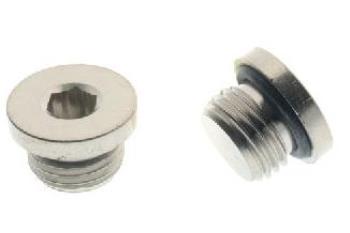

Cylindrical cap recessed with o-ring
Bspp cylindrical male cap with socket hex and oil-proof nbr rubber o-ring also in version with fkm (viton) gasket pack o...

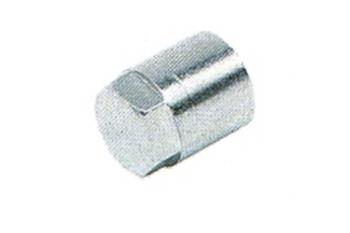

Female cap
Code measure 32a4531/8 1/8 32a4531/4 1/4 32a4533/8 3/8 32a4531/2 1/2
Conical male hose connector
Nickel-plated brass fitting with barbed hose holder and bspt conical male thread minimum packages of 10 pieces. code mea...
Female hose holder
Nickel-plated brass fitting with barbed hose holder and female thread. minimum packages of 10 pieces. code measure 32a4...

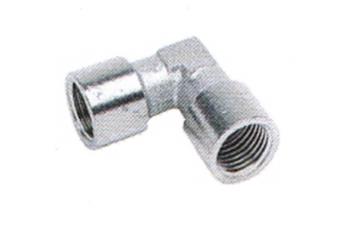

Female-Female Elbow
Code measure 32a4561/8 1/8 32a4561/4 1/4 32a4563/8 3/8 32a4561/2 1/2 32a4563/4 3/4 - 1"

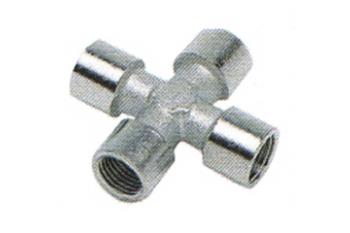

Cross fitting
Code measure 32a4571/8 1/8 32a4571/4 1/4 32a4573/8 3/8 32a4571/2 1/2

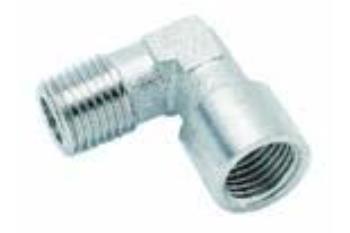

Male-Female corner fitting
Code measure 32a4581/8-1/8 1/8 32a4581/4-1/4 1/4 32a4583/8-3/8 3/8 32a4581/2-1/2 1/2 32a4583/4-3/4 3/4 32a4581-1 1"

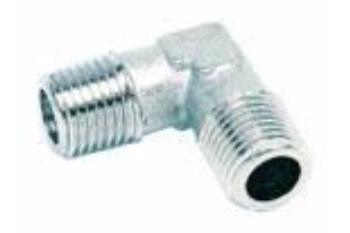

M/M corner fitting
Code measure 32a4591/8-1/8 1/8 32a4591/4-1/4 1/4 32a4593/8-3/8 3/8 32a4591/2-1/2 1/2 32a4593/4-3/4 3/4 32a4591-1 1"
4-WAY ALUMINUM BLOCK
Aluminum block for compressed air distribution code measure 32a4601/8 1/8" 32a4601/4 1/4" 32a4603/8 3/8" ...

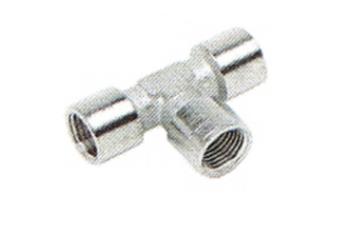

Female T fitting
Code measure 32a4611/8-1/8 1/8" 32a4611/4-1/4 1/4" 32a4613/8-3/8 3/8" 32a4611/2-1/2 1/2" 32a4613/4-3...

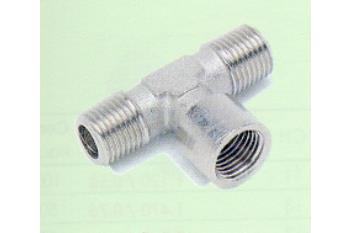

Central male tee
Code measure 32a4621/8-1/8 1/8" 32a4621/4-1/4 1/4" 32a4623/8-3/8 3/8" 32a4621/2-1/2 1/2" 32a4623/4-3...

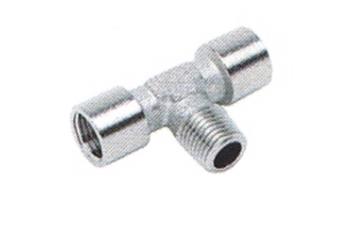

Central female tee
Code measure 32a4631/8-1/8 1/8" 32a4631/4-1/4 1/4" 32a4633/8-3/8 3/8" 32a4631/2-1/2 1/2" 32a4633/4-3...

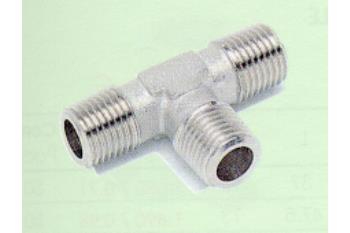

Male tee fitting
Code measure 32a4641/8-1/8 1/8" 32a4641/4-1/4 1/4" 32a4643/8-3/8 3/8" 32a4641/2-1/2 1/2" 32a4643/4-3...

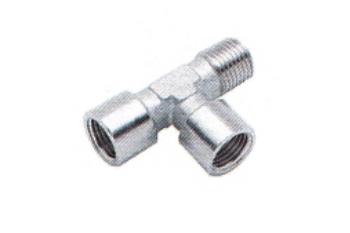

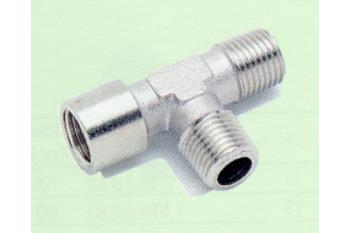

Lateral female tee fitting
Code measure 32a4651/8-1/8 1/8" 32a4651/4-1/4 1/4" 32a4653/8-3/8 3/8" 32a4651/2-1/2 1/2" 32a4653/4-3...
Lateral male tee
Code measure 32a4661/8 1/8 32a4661/4 1/4 32a4663/8 3/8 32a4661/2 1/2 32a4663/4 3/4 32a4661 1"

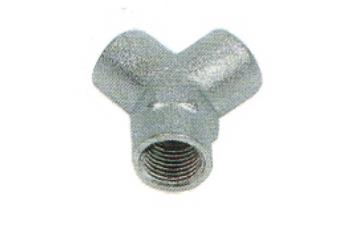

Y fitting
Code measure 32a4861/8-1/8 1/8 32a4861/4-1/4 1/4 32a4863/8-3/8 3/8 32a4861/2-1/2 1/2
Central male Y fitting
Three-way "y" male central threaded nickel-plated brass fitting code measure fillets 32a4871/8-1/8 1/8" 3...
90 THREADED WALL FIXING BRACKET
Two-way 90° female nickel-plated brass fitting for wall fixing of the down pipe code measure 32a4881/2 1/2

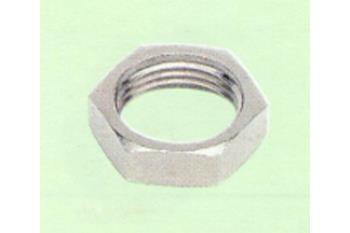

Lock nut
Code measure 32a4891/8 1/8 32a4891/4 1/4 32a4893/8 3/8 32a4891/2 1/2

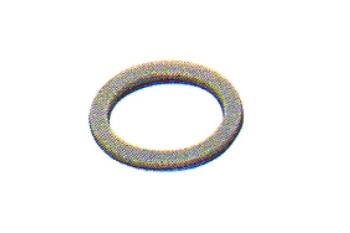

Aluminum washer
Code measure 32a364m5 m5 32a3641/8 1/8 32a3641/4 1/4 32a3643/8 3/8 32a3641/2 1/2 32a364m12 m12
