NORMAL W2 TABLE 12mm band

ONLINE CATALOGUE  ›  CLAMPS AND TIGHTENING SYSTEMS  ›  SCREW CLAMP AISI 430 - W2

NORMAL W2 TABLE 12mm band


Download sheet in pdf format

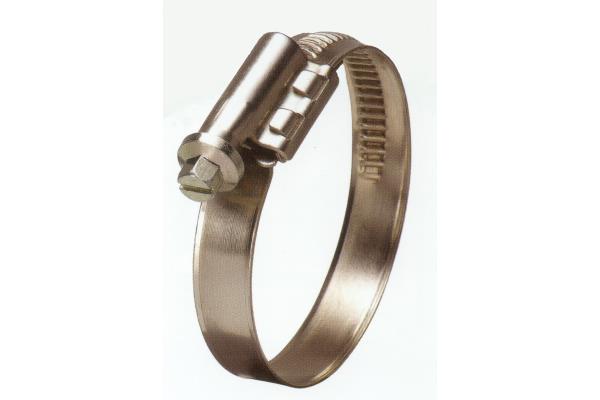

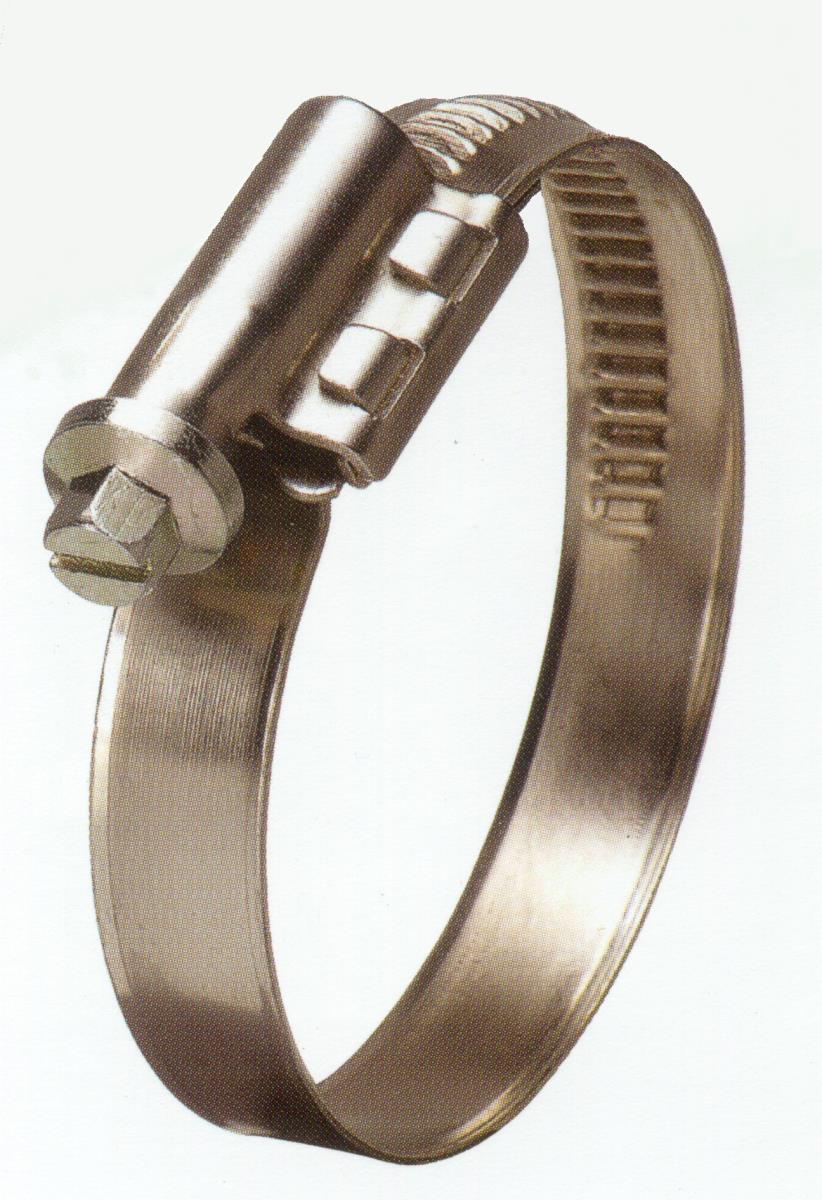

TORRO cable tie made in Germany with high performance and seals. The shape of the screw/drawer system is able to guarantee high tightening torques and satisfy the most demanding applications;
the edges of the band are rounded to avoid damage to the tubes.

BAND 12mm - standard supply entirely in W2 AISI 430 stainless steel

 – Asymmetrical case to prevent the drawer from twisting when closing
– uniform distribution of forces and safe assembly. Screw with integrated guide collar
– ease of assembly thanks to the collar integrated into the screw that guides the cable tie tape
– Construction material and clamping range indicated on the tape
– prevention of errors Asymmetric drawer position
– prevents the case from tilting when tightening the small drawer saddle clamp
– uniform distribution of contact pressure
– better efficiency Smooth or internally printed ribbon
– optimal protection of the tube thanks to the band with rounded edges

closing field
packaging
16-27 50
20-32 50
25-40 50
30-45 50
35-50 50
40-60 25
50-70 25
60-80 25
70-90 25
80-100 25
90-110 20
100-120 10
110-130 10
120-140 10
130-150 10
140-160 10
150-170 10
160-180 10
170-190 10
180-200 10
190-210 10
200-220 10
210-230 10
220-240 10
230-250 10
240-260 10
250-270 10
260-280 10
