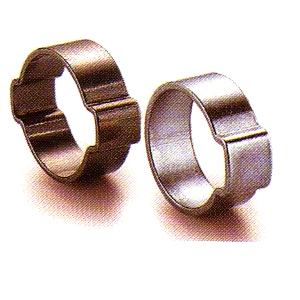

Clampable cable ties with 1 or 2 ears, ensure a strong and long-lasting tightening;
it is the most economical system for permanently tightening small and medium diameter pipes, in just a few seconds. For frequent assembly, a pneumatic tool is available.
Band with smooth interior. Rounded edges to avoid damage.
Pinchable clamp for low and medium pressure. The two-ear clip does not have a screw.
Assembly is quick, simple and safe by squeezing the ears which allow you to generate a better and constant holding force.

Benefits overview
• Economical and simple alternative to worm hose clamps
• Quick and easy installation
• Ideal for narrow spaces
• For the definitive fixing of connection pipes
• For assembly, normal pliers are sufficient
• Extended clamping range Applications
• For flexible hoses carrying compressed air or fluids
• OEM
• Maintenance, repair and overhaul

AVAILABLE MATERIALS: W1 - W4

Width Clamping ranges W1 W4
band Description in mm in inches Item number Item number
6 DOUBLE EARCLIP 5-7 3/16-1/4 0110 7012 007 0110 7013 007
DOUBLE EARCLIP 7-9 1/4-3/8 0110 7012 009 0110 7013 009
6.5 DOUBLE EARCLIP 9-11 3/8-7/16 0110 7012 011 0110 7013 011
DOUBLE EARCLIP 10-12 3/8-1/2 0110 7012 012 0110 7013 012
DOUBLE EARCLIP 11-13 7/16-1/2 0110 7012 013 0110 7013 013
7 DOUBLE EARCLIP 13-15 1/2-9/16 0110 7012 015 0110 7013 015
DOUBLE EARCLIP 14-17 9/16-11/16 0110 7012 017 0110 7013 017
7.5 DOUBLE EARCLIP 15-18 9/16-11/16 0110 7012 018 0110 7013 018
DOUBLE EARCLIP 17-20 11/16-13/16 0110 7012 020 0110 7013 020
8 DOUBLE EARCLIP 18-21 11/16-13/16 0110 7012 021 0110 7013 021
DOUBLE EARCLIP 20-23 13/16-15/16 0110 7012 023 0110 7013 023
9 DOUBLE EARCLIP 22-25 7/8-1 0110 7012 025 0110 7013 025
10 DOUBLE EARCLIP 23-27 15/16-1 11/16 0110 7012 027
DOUBLE EARCLIP 25-28 1-1 1/8 0110 7012 028
DOUBLE EARCLIP 28-31 1 1/8-1 1/4 0110 7012 031
DOUBLE EARCLIP 31-34 1 1/4-1 5/16 0110 7012 034
DOUBLE EARCLIP 34-37 5/16-1 7/16 0110 7012 037
DOUBLE EARCLIP 37-40 1 7/16-1 9/16 0110 7012 040
DOUBLE EARCLIP 40-43 1 9/16-1 11/16 0110 7012 043
DOUBLE EARCLIP 43-46 1 11/16-1 13/16 0110 7012 046
