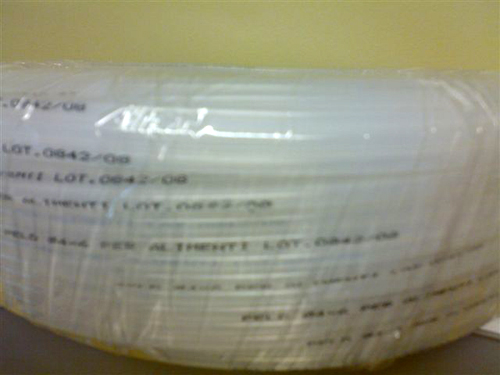

FOOD GRADE POLYETHYLENE PIPE - LDPE

ONLINE CATALOGUE  ›  HOSES  ›  Hoses for Pneumatic Applications  ›  POLYETHYLENE PIPES

FOOD GRADE POLYETHYLENE PIPE - LDPE


Download sheet in pdf format
LDPE POLYETHYLENE pipes are normally used for their particular resistance to chemical products, therefore easily chemically sterilisable.
Completely recyclable, excellent flexibility, white colour, black colour.

- Density 0.921 g/cm3
– Elongation at break 400%
- tear resistance 30 N/mm
– Impact resistance 310g
– tensile strength 26MPa
- Operating temperatures -20° +60° C.

Rolls: 100 metres

Reference food standards:
Ministerial Decree 03/21/73 and subsequent updates,
compliant with Directive 90/128/EEC,
compliant with FDA 21 CFR 177.1520,
compliant with the European Pharmacopoeia.
Code
 OR
mm		 Pressure
of exercise
Bar		 Pressure
of explosion
Bar		 radius
of curvature
mm
03PE000002/04 A 2X4 18.5 75 20
03PE000003/05 A 3X5 12.5 50 30
03PE000004/06 A 4X6 10 40 40
03PE004.35/6.35 A 4.35x6.35 9 36 50
03PE000006/08 A 6X8 7.5 30 50
03PE06,36/9,54 A 6.35x9.52 10 40 100
03PE000008/10 A 8X10 6 25 120
03PE000008/12 A 8X12 7.5 30 160
03PE000009/12 A 9x12 7.5 30 120
03PE000010/12 A 10x12 5 20 120
