RILSAN PA11 PHL PIPE DIN 73378/74324

ONLINE CATALOGUE › HOSES › Hoses for Pneumatic Applications › POLYAMIDE TUBES - RILSAN PA11 - PA12

RILSAN PA11 flexible linear tube in bio-polyamide 11 of vegetable origin derived from castor oil.
Manufactured according to DIN 73378/74324 PHL (High temperature and light resistant plastic).

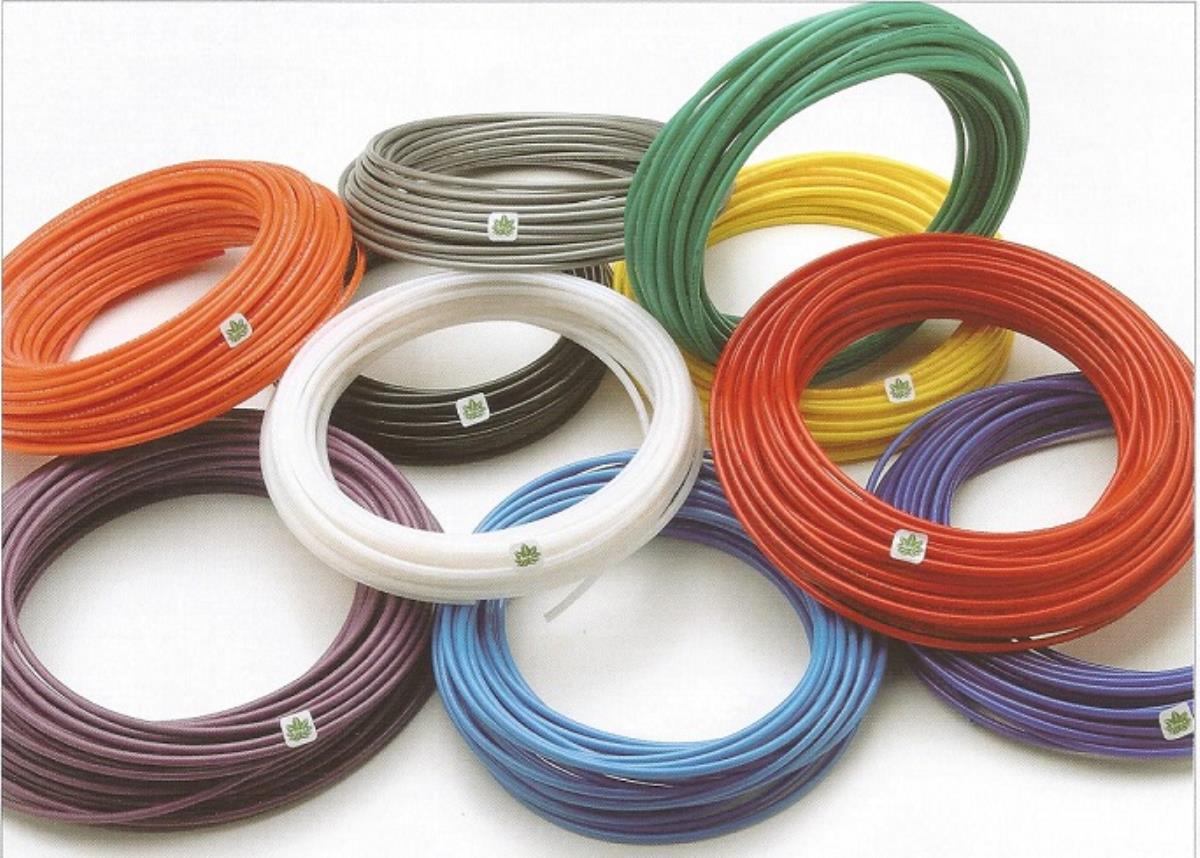

Available colors: neutral, yellow, blue, red, green, black, light blue, purple, orange, gray, white.
Operating temperature. -40°C to +80°C
Wall thickness tolerance: +/- 0.07 mm
Tolerance on the external diameter: +/- 0.07 mm up to Øe 10.
Tolerance on the external diameter: +/- 0.1 mm from Øe 12 to 25.
Tolerance on the external diameter: +/- 0.15 mm from Øe 40.
Weight tolerance: +/- 0.5%
On request also available in special versions:

MULTITUBE
4 meter BARS
Braided with galvanized sheath
Rolls of 25-50-100 meters depending on the section
Packaging: standard polyethylene film or cardboard box or wooden spools.

item	OR mm	Radius of curvature mm	Press. of exercise Cafe	Press. of explosion Cafe
03PA1100.5/1.1	0.5x1.1	10	50	150
03PA110001/02	1x2	10	44	133
03PA1101,5/02	1.5x2	20	19	57
03PA1101,5/03	1.5x3	20	29	133
03PA1101.5/2.5	1.5x2.5	20	33	100
03PA1101.6/2.5	1.6x2.5	20	29	100
03PA110001/03	2x3	15	67	200
03PA110001/04	2x4	10	80	240
03PA1101,5/03	1.5x3	12	44	133
03PA1101,5/04	1.5x4	15	61	182
03PA1101.6/3.17	1.6x3.17	10	44	132
03PA112,18/3,17	2.18x3.17	20	25	74
03PA110002/03	2x3	15	27	80
03PA110002/04	2x4	100	33	66
03PA1102,3/04	2.3x4	20	36	108
03PA1102,5/03	2.5x3	25	12	36
03PA1102,5/04	2.5x4	20	31	ninety two
03PA1102,7/04	2.7x4	25	26	78
03PA110003/03.5	3x3.5	30	10	31
03PA110003/04	3x4	25	19	57
03PA110003/05	3x5	25	33	100
03PA110003/06	3x6	30	33	40
03PA1103,1/4,75	3.1x4.75	30	28	84
03PA1103,25/05	3.25x5	27	28	85
03PA1103,5/04	3.5x4	35	9	27
03PA1103,5/05	3.5x5	30	24	71
03PA1103,5/06	3.5x6	30	35	105
03PA1103,60/6	3.6x6	30	33	100
03PA110004/05	4x5	50	15	44
03PA110004/06	4x6	35	27	80
03PA110004/07	4x7	45	36	109
03PA110004/08	4x8	40	44	133
03PA114.35/6.35	4.35x6.35	40	25	75
03PA1104,5/06	4.5x6	40	19	57
03PA110005/07	4x5	38	22	67
03PA110005/08	5x8	40	31	ninety two
03PA110006/08	6x8	40	19	57
03PA110006/10	6x10	60	33	100
03PA116.35/7.93	6.35x7.93	50	15	44
03PA1106,5/10	6.5x10	60	28	85
03PA110007/09	7x9	55	17	50
03PA1107/9.52	7x9.52	50	20	61
03PA110007/10	7x10	60	24	71
03PA1107,5/10	7.5x10	50	19	57
03PA110008/10	8x10	60	15	44
03PA110008/12	8x12	60	27	80
03PA110009/12	9x12	70	19	57
03PA119.52/12.17	9.52/12.17	65	19	57
03PA110010/12	10/12	85	12	36
03PA110010/14	10x14	80	22	67
03PA110011/14	11x14	90	21	62
03PA110011/15	11x15	90	21	62
03PA110012/14	12x14	90	10	31
03PA110012/15	12x15	90	15	44
03PA110012/16	12x16	95	19	57
03PA1112,5/15	12x16	100	12	36
03PA110013/15	13x15	95	10	29
03PA110013/16	13x16	95	19	57
03PA110014/16	14x16	100	9	27
03PA110014/18	14x18	100	17	50
03PA110015/18	15x18	140	12	36
03PA110016/18	16x18	350	8	24
03PA110016/20	16x20	130	15	44
03PA110018/20	18x20	400	7	21
03PA110018/22	18x22	200	13	40
03PA110019/22	19x22	250	10	29
03PA110020/22	20x22	400	6	19
03PA110020/24	20x24	300	12	36
03PA110022/25	22x25	300	9	26
03PA110024/28	24x28	350	10	31
03PA110025/30	25x30	400	12	36
03PA110034/40	34x40	500	11	32
