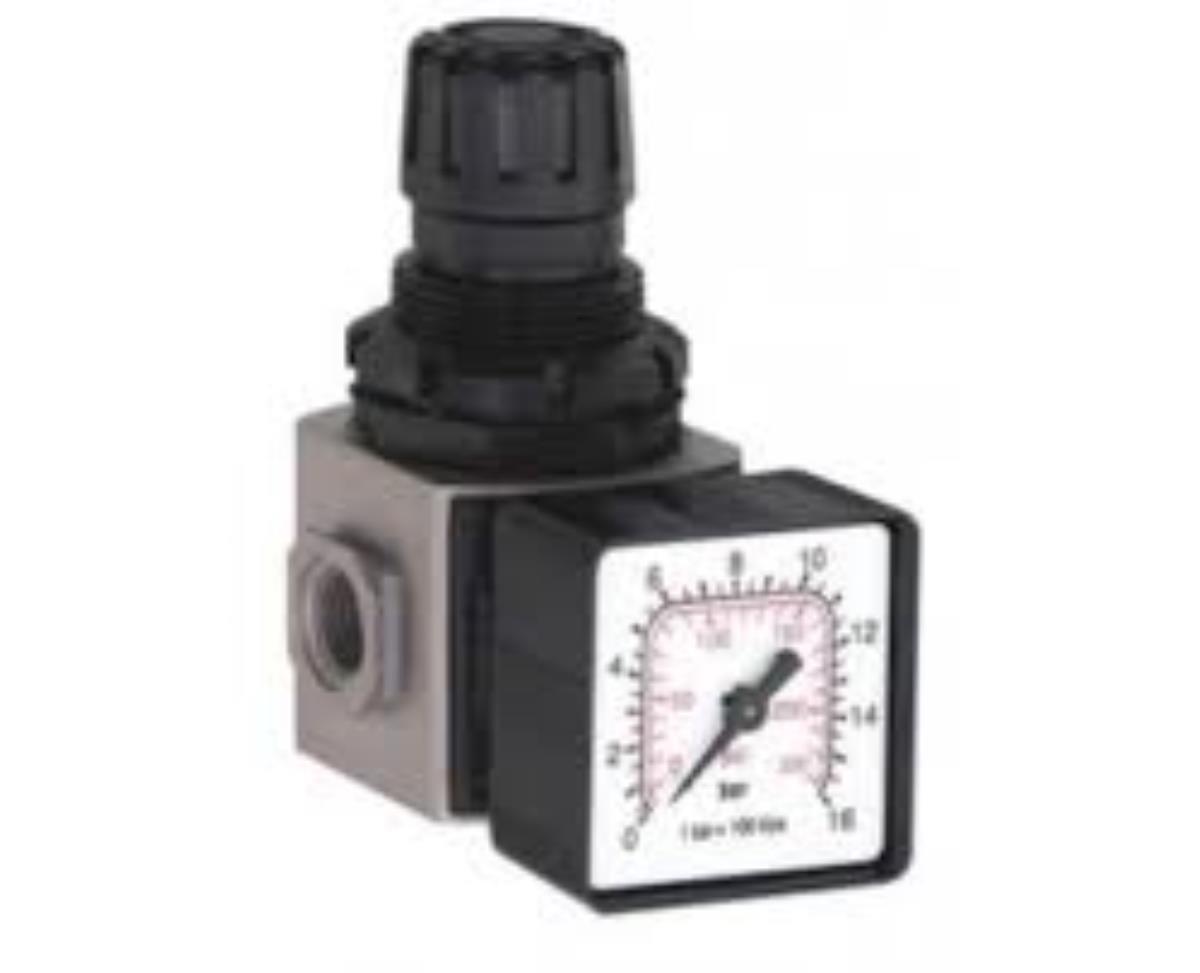

The pressure regulator is a device that acts on a fluid capable of providing a pressure of the desired value at the outlet. The pressure reducer, with piston operation, is equipped with a perfect regulation and compensation system which ensures very precise and unaltered delivery over time.

The relieving system makes the pressure reading on the pressure gauge constant even during the pressure reduction phase. The characteristic of being modular allows you to assemble multiple elements of the same family with different functions in a single block.

Connections:
  • 1/4” BSP Threads on body
  • 1/8” BSP With reduction
General characteristics
  • Powder coated metal body.
  • Piston pressure regulation system
  • Adjustment knob equipped with locking system and technopolymer fixing ring nut
  • All models include the supply of a square pressure gauge with a 0/16 bar - 0/230 psi scale
