EXTENSIBLE CONNECTED SPIRAL POLYURETHANE SPIRAL



Download sheet in pdf format

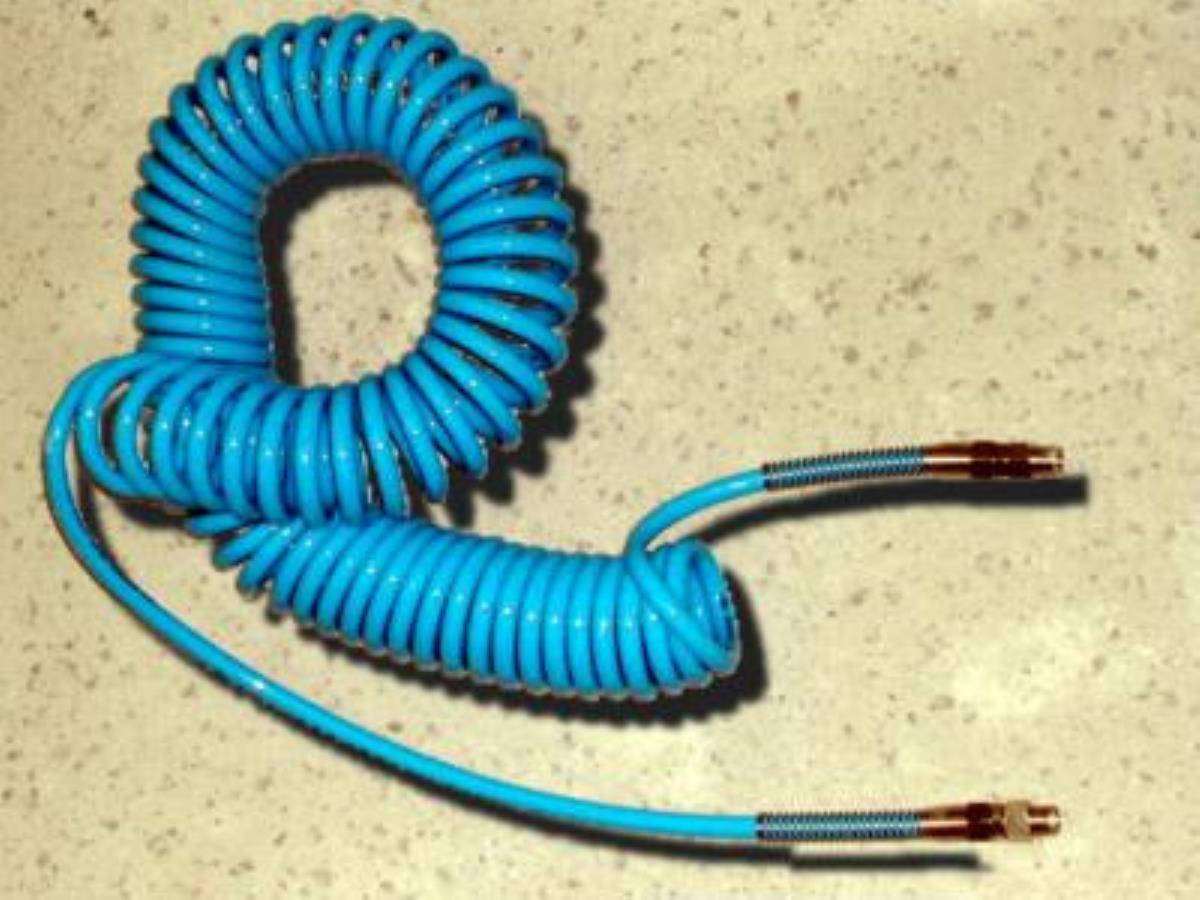

Etere-based extensible spiral polyurethane hose EXTRAFLEX S90 with a wide range of colors and single and multiple sizes. We recommend using it with fitting fittings.
Also available with pre-assembled brass fittings with reinforcement spring, gas swivel male thread.
Material hardness 45 shoreD
Operating temperature -40° +60°C
Ideal for compressed air, water and paint dust.
Color available: light blue
Dimensions

mm
Length
nominal
m
TO
rest
mm
Usage
useful
m
length
tangs
mm
Spiral
int-est
mm
2.5x4 3.0 300 2 100-100 10/18
2.5x4 4.0 210 3 100-100 20/28
4x6 2.0 140 3 100-100 20/32
4x6 4.0 325 3 100-100 20/32
5.5x8 2.5 190 2 120-500 25/41
5.5x8 5.0 410 4 120-500 25/41
5.5x8 7.5 660 6 120-500 25/41
5.5x8 10.0 800 8 120-500 25/41
5.5x8 12.5 1030 10 120-500 25/41
6.5x10 2.5 140 2 120-500 40/60
6.5x10 5.0 330 4 120-500 40/60
6.5x10 7.5 500 6 120-500 40/60
6.5x10 10.0 680 8 120-500 40/60
6.5x10 12.5 800 10 120-500 40/60
8x12 2.5 115 2 120-500 50/74
8x12 5.0 305 3 120-500 50/74
8x12 7.5 430 6 120-500 50/74
8x12 10.0 600 8 120-500 50/74
8x12 12.5 800 10 120-500 50/74
8x12 15.0 930 13 120-120 50/74
