Download sheet in pdf format

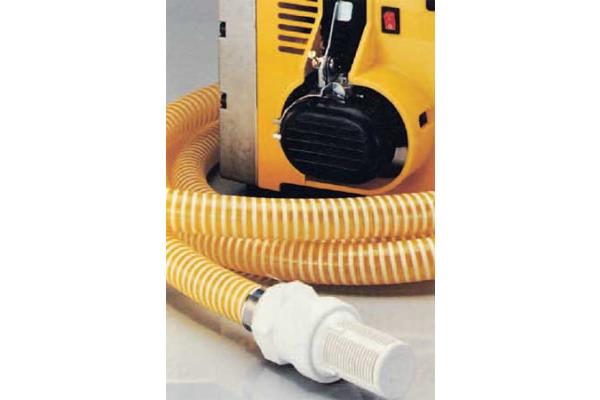

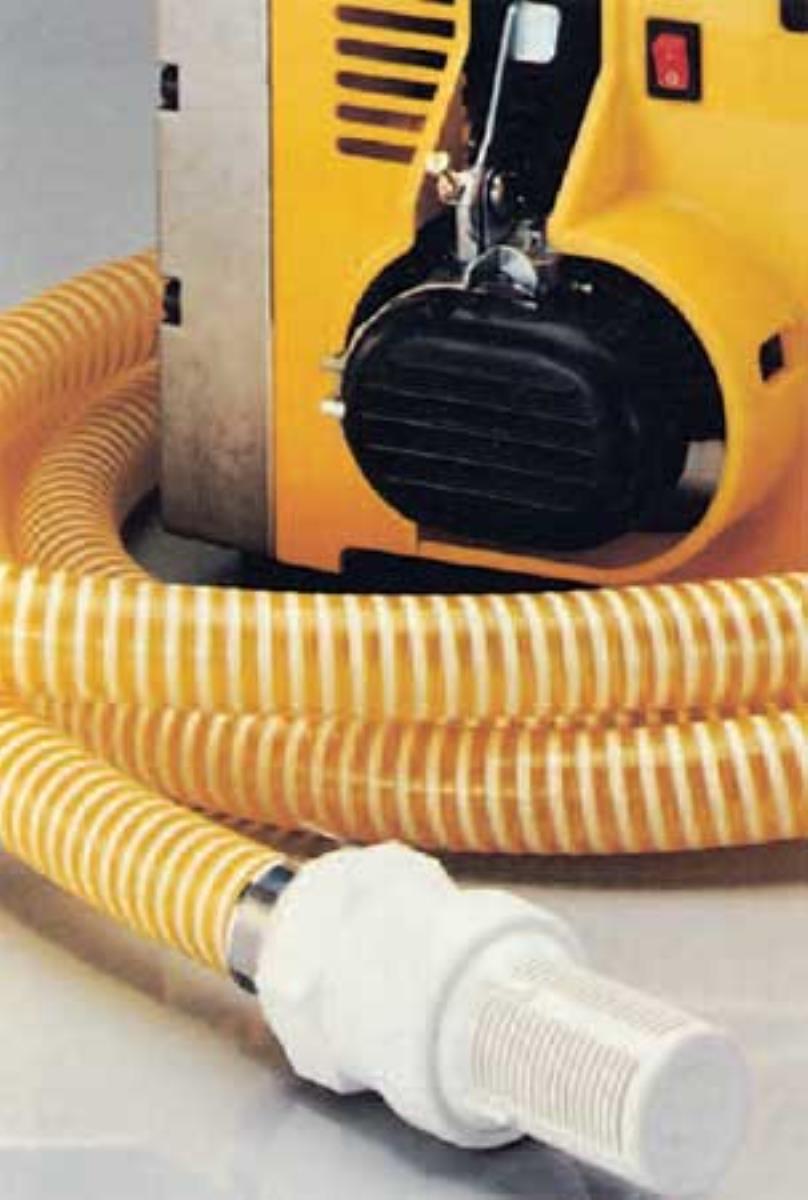

Flexible PVC hose with rigid shock-proof and crush-proof PVC reinforcement spiral.
Resistant to atmospheric agents and most chemical products.
Smooth internal surface.
Good resistance in suction and delivery.
Suitable for contact with food according to DDC.
 Operating temperature: -15°C +60°C Yellow colour, transparent with ivory spiral.

Code Dimensions
mm		 Weight
g/m		 radius of
curvature mm		 Pressure
maximum bar		 Rolls
m
04PLUI0000020 20x26,2 275 75 8 50
04PLUI0000025 25x31,6 330 120 8 50
04PLUI0000030 30x37,0 420 140 7 50
04PLUI0000032 32x39,2 460 150 7 50
04PLUI0000035 35x41,8 500 160 7 50
04PLUI0000038 38x45,4 550 170 6.5 50
04PLUI0000040 40x47,6 610 180 6.5 50
04PLUI0000045 45x52,8 670 200 6.5 50
04PLUI0000050 50x58,2 810 220 6 50
04PLUI0000060 60x69,0 970 270 5 50
04PLUI0000063 63x71,5 1040 290 5 50
04PLUI0000070 70x79,2 1200 320 4 50
04PLUI0000075 75x85,4 1380 350 4 50
04PLUI0000080 80x90,6 1560 360 4 25
04PLUI0000090 90x100,4 1800 430 4 25
04PLUI0000100 100x112,0 2160 480 4 25
04PLUI0000102 102x114,0 2160 480 4 25
04PLUI0000110 110x122,0 2400 530 4 25
04PLUI0000120 120x132,4 2800 680 3 25
04PLUI0000125 125x137,6 3130 730 3 25
04PLUI0000150 150x164,4 4250 810 3 25
04PLUI0000200 200x218,2 6400 900 2 10
