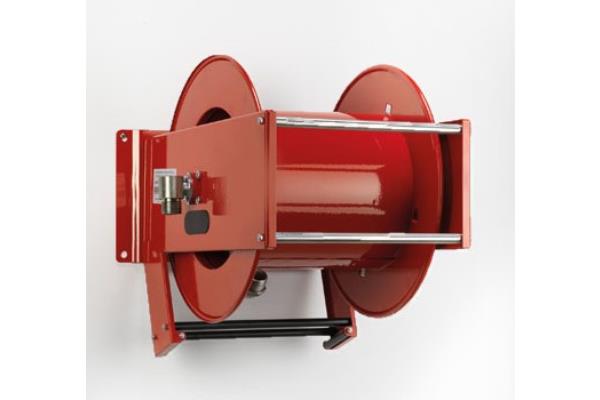

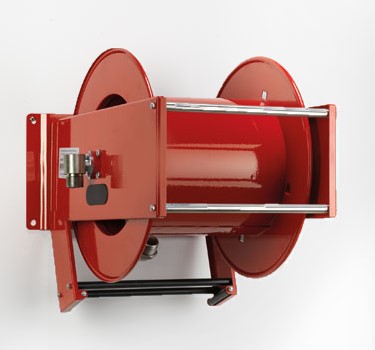

Heavy series automatic hose reel



Download sheet in pdf format
Heavy series painted steel hose reel,
suitable for uses for a maximum distance of 30m with 3/4" hose.
Or we can supply a 25m hose reel with 1" hose.
supplied with double tension spring system.
The hose reel is supplied as standard without a hose.

PASSAGE FLUIDS: oil, antifreeze, diesel, air, low pressure water.

On request version with brake-spring kit





Max. pressure IN-OUT connections Useful joint hole Ø Max tube Max hose length 3/4"-1" Weight Width band Dimensions (LPH)
Cafe fillet steak mm inch meters Kg mm mm
100 M1"-F1" 20 1" 12 - 8 21 150 295x530x450
6pm - 3pm 24 300 440x530x450
30 - 25 36 400 540x530x450
