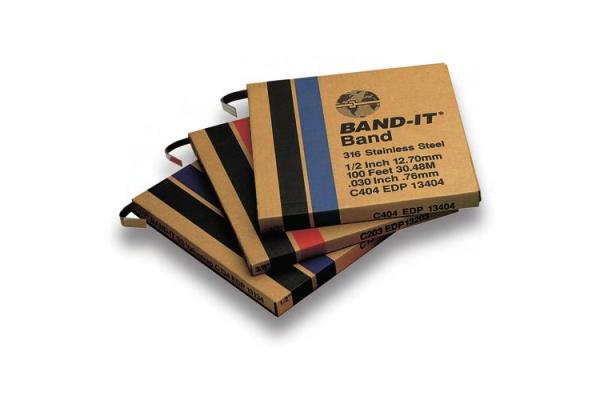

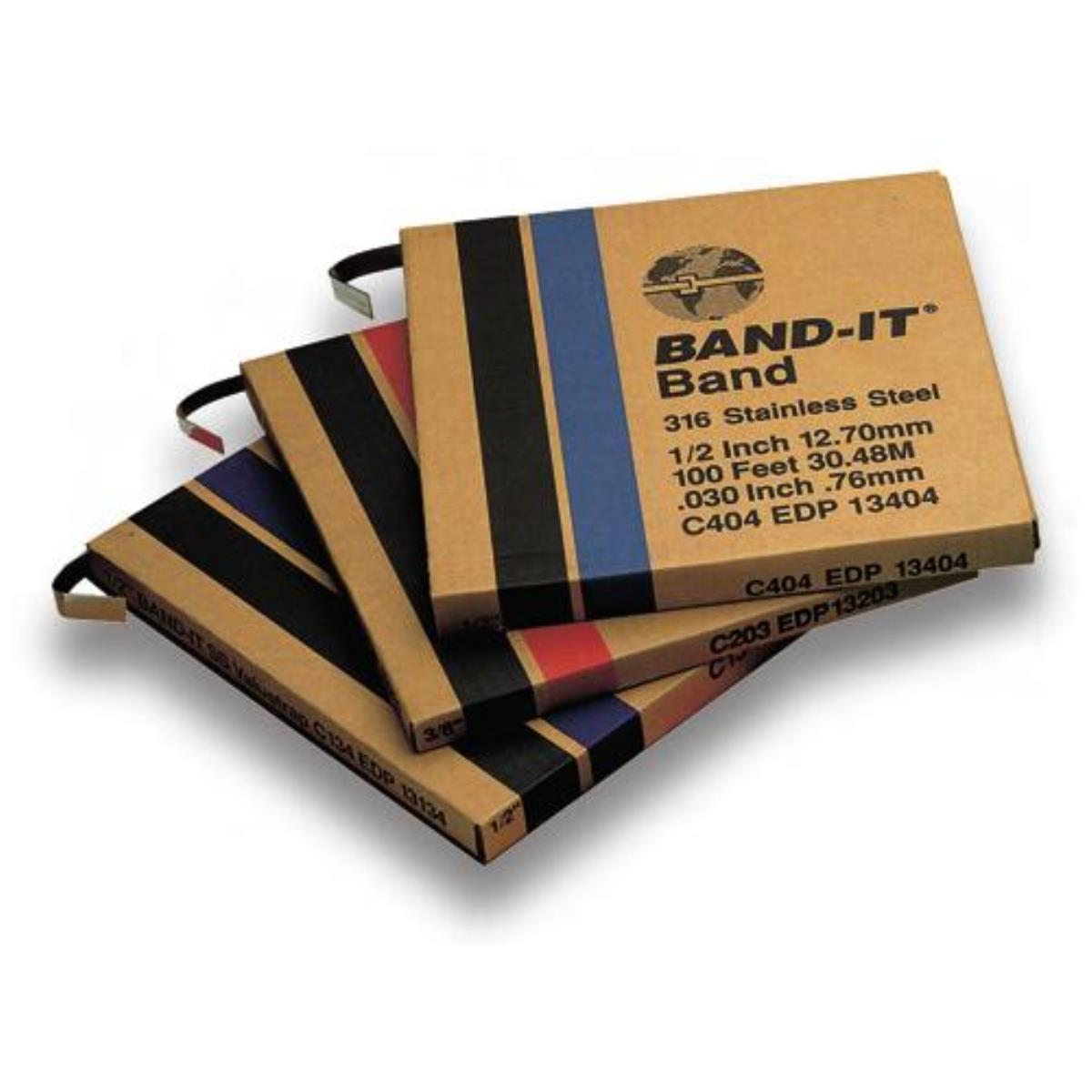

BAND-IT TAPE
ONLINE CATALOGUE › CLAMPS AND TIGHTENING SYSTEMS › BAND-IT
Download sheet in pdf format
The system is made up of tapes and staples, with which it is possible to create fastenings of any shape and diameter; It is used for a wide variety of applications.
materials available:
materials available:
- W4 201 stainless steel
- W4 304 stainless steel
- W5 316 stainless steel
- MONEL on request, for high resistance
| Ø INTERNAL TUBE | MAXIMUM EXERCISE PRESSURE | TAPE | TURNS | TIGHTENINGS |
| 12 | 75 | 3/8" | SINGLE | SINGLE |
| 19 | 65 | 3/8" | SINGLE | DOUBLE |
| 25 | 48 | 1/2" | SINGLE | SINGLE |
| 38 | 40 | 1/2" | SINGLE | DOUBLE |
| 50 | 35 | 5/8" | DOUBLE | DOUBLE |
| 63 | 28 | 5/8" | DOUBLE | DOUBLE |
| 76 | 25 | 5/8" | DOUBLE | DOUBLE |
| 90 | 16 | 5/8" | DOUBLE | DOUBLE |
| 102 | 14 | 3/4" | DOUBLE | DOUBLE |
| 127 | 10 | 3/4" | DOUBLE | DOUBLE |
| 150 | 8 | 3/4" | DOUBLE | DOUBLE |
| 180 | 5 | 3/4" | DOUBLE | DOUBLE |
| 200 | 2.5 | 3/4" | DOUBLE | DOUBLE |
| SERIES | APPLICATIONS | TOOLS |
| BAND-IT STANDARD AISI 201 | Rubber hoses in general, road signs, electrotechnical components, public service companies | C001 (tool weight 2.0 kg) |
| BAND-IT STANDARD AISI 304 | ||
| BAND IT AISI 316: High corrosion resistance and marine grade, acid resistant | Chemical and food industry, petrochemical, nautical | |
| BAND IT VALUSTRAP: Non-demanding applications | Fixing signs, fixing insulation and insulation, packaging | |
| BAND IT GIANT: Heavy-duty applications | Large diameter pipes, containment of metal cable bundles | G402 (tool weight 5.3 kg) |
| SERIES | TAPE CODE | BAND WIDTH | TAPE THICKNESS | BREAKING LOAD | ROLL WEIGHT |
| inches | mm | Kg | Kg | ||
| STANDARD AISI 201 | C201 | 3/16” | 0.38 | - | 0.5 |
| C202 | 1/4” | 0.51 | 225 | 0.8 | |
| C203 | 3/8” | 0.63 | 400 | 1.6 | |
| C204 | 1/2” | 0.76 | 680 | 2.4 | |
| C205 | 5/8” | 0.76 | 890 | 3 | |
| C206 | 3/4” | 0.76 | 1090 | 3.6 | |
| AISI 304 | C923 | 3/8” | 0.6 | 340 | 1.6 |
| C924 | 1/2” | 0.7 | 580 | 2.4 | |
| C925 | 5/8” | 0.7 | 760 | 3 | |
| C926 | 3/4” | 0.7 | 930 | 3.6 | |
| AISI 316 | C403 | 3/8” | 0.63 | 340 | 1.6 |
| C404 | 1/2” | 0.76 | 544 | 2.4 | |
| C405 | 5/8” | 0.76 | 680 | 3 | |
| C406 | 3/4” | 0.76 | 816 | 3.6 | |
| ASSESSMENT AISI 304 | C133 | 3/8” | 0.4 | 204 | 1 |
| C134 | 1/2” | 0.4 | 272 | 1.3 | |
| C135 | 5/8” | 0.4 | 340 | 1.7 | |
| C136 | 3/4” | 0.4 | 408 | 2 | |
| GIANT AISI 201 | G430 | 3/4” | 1.12 | 1500 | 5.4 |
| G431 | 1” | 1.12 | 1995 | 6.4 | |
| G432 | 11/4” | 1.12 | 2495 | 8 |
