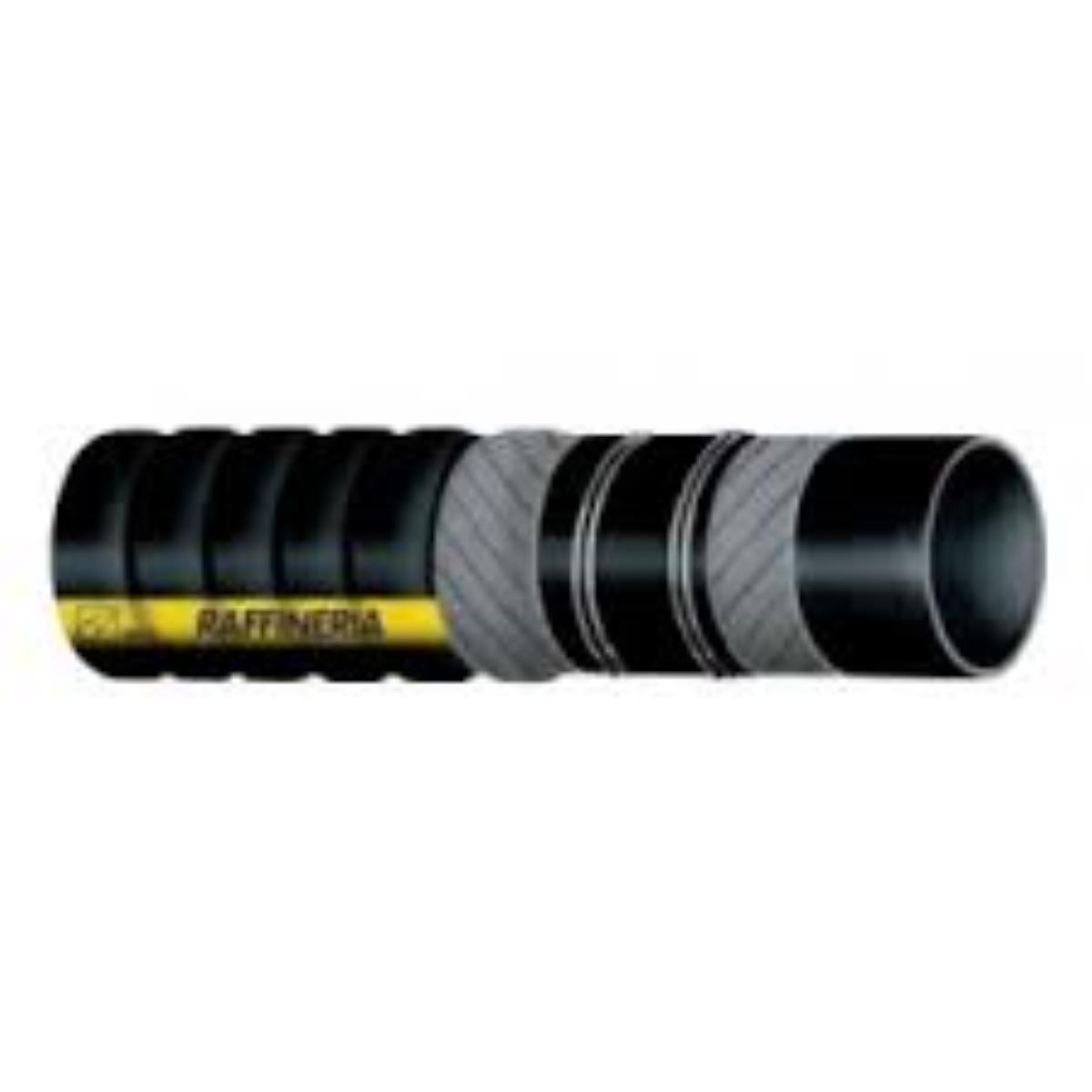

TANK WAGON TUBE
ONLINE CATALOGUE › HOSES › Hydrocarbon delivery hoses
Download sheet in pdf format
Hose suitable for the delivery suction of fuel, mineral oil, ecological petrols, with an aromatic solvent content of less than 50%.
Extremely flexible and light structure with minimal bending radii considering the rubber hose. Normally supplied with tankers for the transport of automotive or heating fuels.
-Smooth antistatic black NBR rubber tube (R<10 6 O)
.
-Highly resistant textile inserts and incorporated steel spiral, with copper cable suitable to guarantee electrical continuity.
- Anti-static corrugated black anti-abrasive rubber cover (R<10 6 O)
Operating temperature
-30° +80°C - maximum peaks of 120° C depending on the fluids conveyed
Operating pressure: 5 bar
safety factor greater than three times the operating pressure
Maximum depression -0.90 bar
Maximum roll length 40 metres.
Available in use sizes with smooth sleeves at the ends.
Extremely flexible and light structure with minimal bending radii considering the rubber hose. Normally supplied with tankers for the transport of automotive or heating fuels.
-Smooth antistatic black NBR rubber tube (R<10 6 O)
.-Highly resistant textile inserts and incorporated steel spiral, with copper cable suitable to guarantee electrical continuity.
- Anti-static corrugated black anti-abrasive rubber cover (R<10 6 O)
Operating temperature
-30° +80°C - maximum peaks of 120° C depending on the fluids conveyed
Operating pressure: 5 bar
safety factor greater than three times the operating pressure
Maximum depression -0.90 bar
Maximum roll length 40 metres.
Available in use sizes with smooth sleeves at the ends.
| item | Dimensions | Dimensions | Radius of | Weight |
| Internal Ø | External Ø | curvature | ||
| mm | mm | mm | Kg/m | |
| 06GBTANK00032 | 32 | 43 | 100 | 0.90 |
| 06GBTANK00038 | 38 | 50 | 120 | 1.10 |
| 06GBTANK00040 | 40 | 52 | 120 | 1.15 |
| 06GBTANK00045 | 45 | 59 | 150 | 1.48 |
| 06GBTANK00050 | 50 | 64 | 180 | 1.60 |
| 06GBTANK00063 | 63.5 | 77.5 | 250 | 2.05 |
| 06GBTANK00070 | 70 | 85 | 280 | 2.43 |
| 06GBTANK00076 | 76 | 91 | 300 | 2.60 |
| 06GBTANK00080 | 80 | 95 | 320 | 2.73 |
| 06GBTANK00090 | 90 | 106 | 360 | 3.34 |
| 06GBTANK00100 | 100 | 116 | 400 | 3.67 |
| 06GBTANK00102 | 102 | 118 | 400 | 3.73 |
