STORZ HOSE FITTING
ONLINE CATALOGUE › FITTINGS FOR AGRICULTURAL-INDUSTRIAL MAINTENANCE › SYMMETRICAL TWISTED FITTINGS
Download sheet in pdf format
Main application: fire-fighting systems, transfer of granular powders, cement, water.

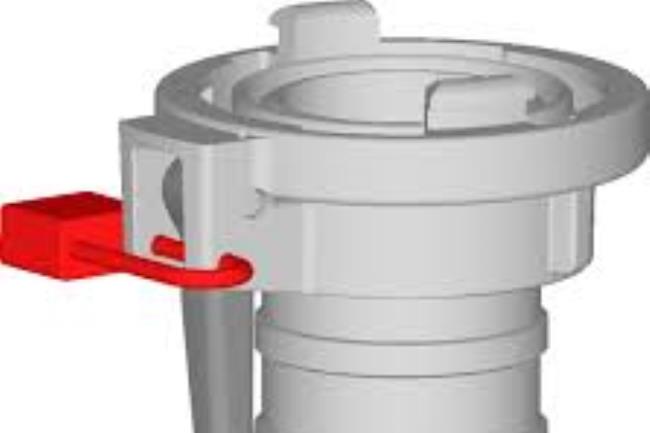

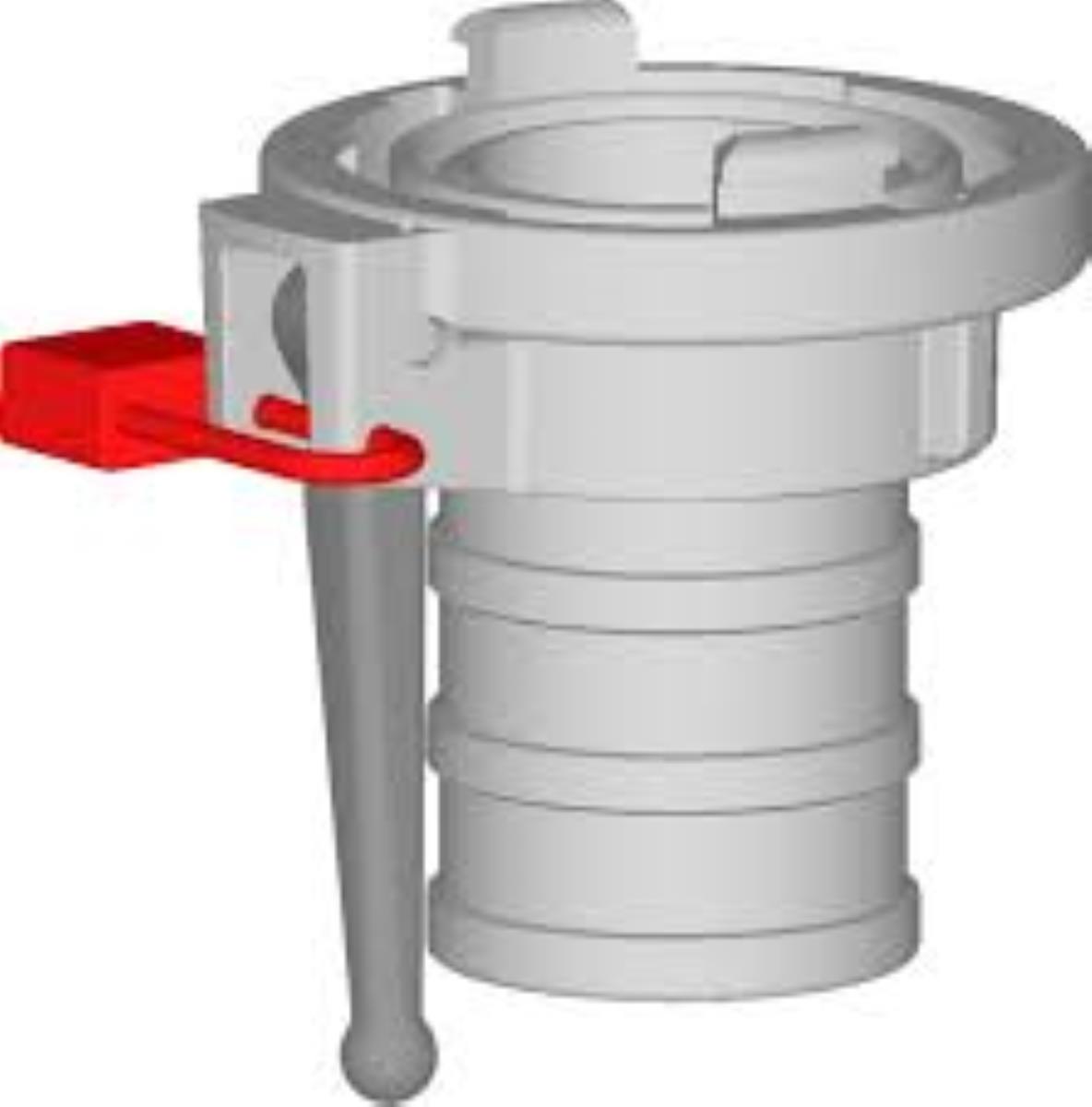

LOCKABLE version available on request **
Maximum operating pressure: 16 bar
Material: FORGED ALUMINUM
Standard gaskets in WHITE NBR, on request in transparent FDA silicone or green FKM
KA = DISTANCE OF INTERNAL CLOSING FINS (mm)
LOCKABLE version available on request **
Maximum operating pressure: 16 bar
Material: FORGED ALUMINUM
Standard gaskets in WHITE NBR, on request in transparent FDA silicone or green FKM
KA = DISTANCE OF INTERNAL CLOSING FINS (mm)
| size/KA mm | rubber holder mm |
|---|---|
| DN25 / KA31 | 25 |
| DN38 / KA51 | 32 |
| DN38 / KA51 | 38 |
| DN52(C) / KA66 | 32 |
| DN52(C) / KA66 | 38 |
| DN52(C) / KA66 | 45 |
| DN52(C) / KA66 | 52 |
| DN65 / KA81 | 25 |
| DN65 / KA81 | 32 |
| DN65 / KA81 | 38 |
| DN65 / KA81 | 52 |
| DN65 / KA81 | 63 |
| DN75(B) / KA89 | 52 |
| DN75(B) / KA89 | 63 |
| **DN75(B) / KA89 | 75 |
| DN100 / KA115 | 100 |
| DN110(A) / KA133 | 100 |
| DN110(A) / KA133 | 110 |
| DN125 / KA148 | 125 |
| DN150 / KA160 | 150 |
Related products
FLATFLEX HOSE 20 bar
High quality extruded rubber flat tube the standard colors are yellow ochre for di
ACQUAFLAT-M BLUE PVC HOSE 10/8 bar
Flexible pvc hose with flattenable structure. smooth black interior, smooth abrasion resistant blue exterior. small dime...
HEAVY DUTY BOLT CLAMP W2
Bolt collars for high pressures and for reinforced pipes, with spirals or with high hardness. the bolt is engaged direct...
BAND-IT TAPE
The system is made up of tapes and staples, with which it is possible to create fastenings of any shape and diameter; it...

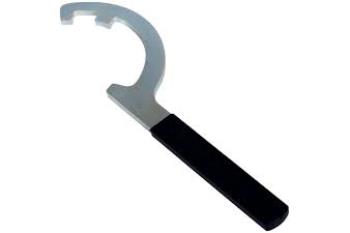

TORQUE TORQUE WRENCH
