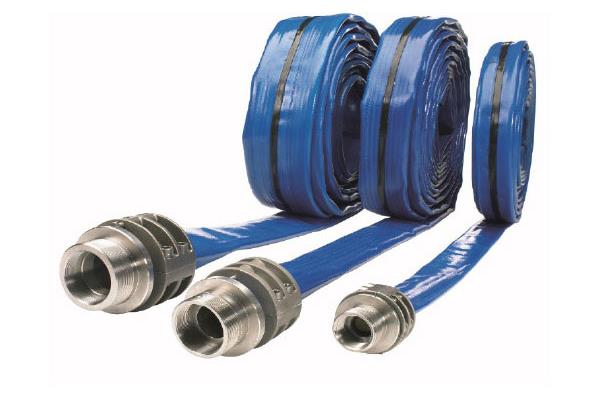

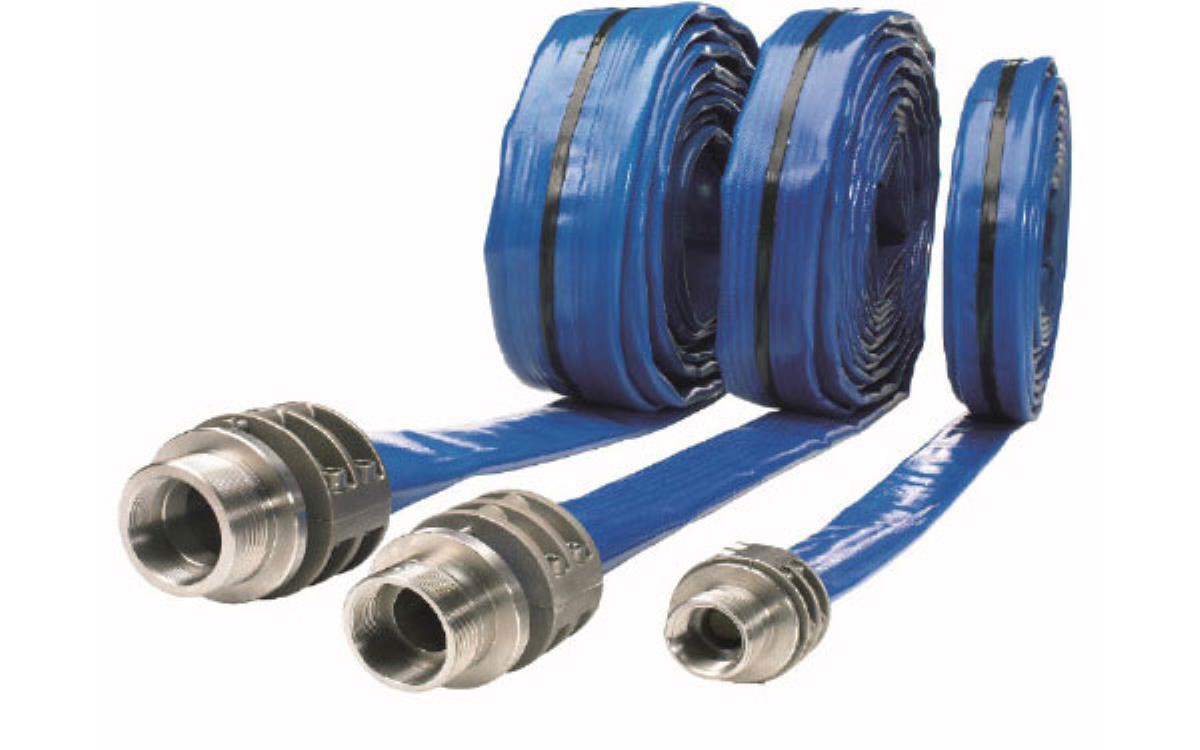

ACQUAFLAT/PU HOSE 26 Bar
ONLINE CATALOGUE › HOSES › Flattenable tubes
Download sheet in pdf format
Innovative flexible riser main system designed for use in groundwater extraction.
Designed for installation inside artesian wells for deep water extraction using immersion pumps.
Reliable high quality and is approved for use with drinking water by NSF of America and DVGW of Germany.
The proven design and performance ensures a hassle-free and inconvenience-free well installation for the pump installer.
The advantages for the customer are many, from lower operating and installation costs to the absence of water contamination. In addition to these characteristics, the speed of maintenance of the pump (minimum space requirement) and the total resistance to corrosion, encrustations and attack by microorganisms make this type of pipe perfect for the well installer.
Blue color
TEMPERATURE: from -35°C to +65°C
SPECIFICATION: Highly specified polyurethane tubing designed for use as a well riser
COVER: Special polyurethane mix. High resistance to chemicals and hydrolysis. No scale formation and resistant to microorganisms. The cover has an integrated strip for fixing the cable.
REINFORCEMENT: High tenacity circular weave polyester threads.
OBSERVATIONS: Coverage with high resistance to UV rays. Abrasion resistant and for use in harsh environments.
APPLICATION: Designed as a first class well riser.
All components are of the highest quality and standard to make this product unique.
• Fully approved for NSF61 (USA) and DVGW (Germany) and BS6920 (UK)
• Energy efficient
• Easy handling
• Excellent flow characteristics
• Long life and low maintenance
• Reduced installation costs
• 20 years of research and development
• Complete system of joints and accessories
• 5 year warranty
• Competitive prices
• Manufactured in accordance with ISO 9001:2000 quality management systems
• Lengths available
(*) Including the weight of the hose, cable, joints, other accessories, pressure at the top of the well and the weight of the water.
(**) Better to consult us for installations at depths greater than 200m.
Designed for installation inside artesian wells for deep water extraction using immersion pumps.
Reliable high quality and is approved for use with drinking water by NSF of America and DVGW of Germany.
The proven design and performance ensures a hassle-free and inconvenience-free well installation for the pump installer.
The advantages for the customer are many, from lower operating and installation costs to the absence of water contamination. In addition to these characteristics, the speed of maintenance of the pump (minimum space requirement) and the total resistance to corrosion, encrustations and attack by microorganisms make this type of pipe perfect for the well installer.
Blue color
TEMPERATURE: from -35°C to +65°C
SPECIFICATION: Highly specified polyurethane tubing designed for use as a well riser
COVER: Special polyurethane mix. High resistance to chemicals and hydrolysis. No scale formation and resistant to microorganisms. The cover has an integrated strip for fixing the cable.
REINFORCEMENT: High tenacity circular weave polyester threads.
OBSERVATIONS: Coverage with high resistance to UV rays. Abrasion resistant and for use in harsh environments.
APPLICATION: Designed as a first class well riser.
All components are of the highest quality and standard to make this product unique.
• Fully approved for NSF61 (USA) and DVGW (Germany) and BS6920 (UK)
• Energy efficient
• Easy handling
• Excellent flow characteristics
• Long life and low maintenance
• Reduced installation costs
• 20 years of research and development
• Complete system of joints and accessories
• 5 year warranty
• Competitive prices
• Manufactured in accordance with ISO 9001:2000 quality management systems
• Lengths available
| INTERNAL DIAMETER | Inch | 1" | 1" 1/4 | 1" 1/2 | 2" | 2" 1/2 | 3" | 4" | 5" | 6" |
| mm | 25 | 32 | 38 | 51 | 65 | 76 | 102 | 127 | 152 | |
| Operating pressure | Cafe | 15 | 30 | 26 | 26 | 26 | 26 | 26 | 26 | 26 |
| Burst pressure | Cafe | 50 | 90 | 65 | 57 | 57 | 57 | 57 | 57 | 57 |
| Weight without fittings | g/m | 165 | 270 | 350 | 570 | 800 | 980 | 1400 | 2000 | 2610 |
| Recommended maximum load* | Kg | 180 | 700 | 700 | 1600 | 2200 | 2800 | 4800 | 6000 | 8000 |
| Tensile strength | Kg | 750 | 3450 | 3450 | 4000 | 5500 | 7000 | 12000 | 15000 | 20000 |
| Maximum reachable depth | m | 100 | 300* | 260* | 260* | 260* | 260* | 260* | 260* | 260* |
| Maximum recommended flow** | L/min | 120 | 200 | 270 | 500 | 800 | 1200 | 2000 | 3000 | 4500 |
(*) Including the weight of the hose, cable, joints, other accessories, pressure at the top of the well and the weight of the water.
(**) Better to consult us for installations at depths greater than 200m.
