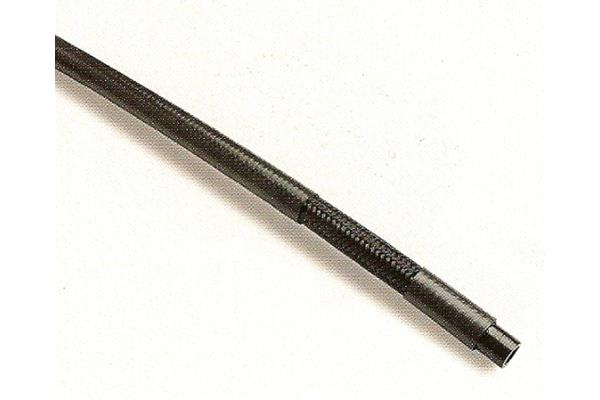

TRIPLE LAYER FIREPROOF NON-SPARKING POLYURETHANE HOSE



Download sheet in pdf format
Triple layer flexible linear anti-spark hose in Polyamide 12, internally reinforced by a PET braid, and externally by a further layer of anti-abrasive Polyurethane 85shA, fire retardant to UL94 V0 standard, suitable for improving protection against sparks and welding slag.
The anti-abrasive external sheath (hardness 64 shoreD) can be easily removed with a special tool.
Hose suitable for use in quick-connect fittings.

Pipe + sheath diameters - Ø mm Weight gr Curvature radius mm Operating pressure Bar Burst pressure Bar
2.5x4x6.5 31 10 38 115
4x6X8.5 46 20 33 100
6x8x10.5 62 30 24 71
7.5x10x12.5 78 40 23 70
9x12x14.5 106 70 24 71
