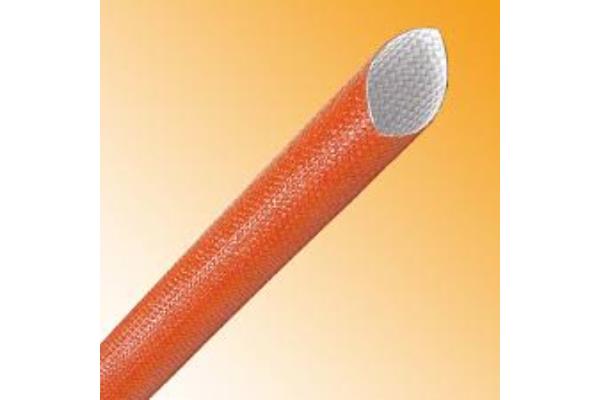

LIGHTWEIGHT SHEATH IN FIBERGLASS AND SILICONE
ONLINE CATALOGUE › INSULATING SHEATH IN TECHNICAL FABRIC
Download sheet in pdf format
CHARACTERISTICS
Temperature class C
Continuous operating temperature: -60° +250°
Dielectric strength: 1.5 kV to 7 kV
Flammable and self-extinguishing
Good resistance in the presence of flames, splashes of molten metal or glass, steam flows.
Excellent flexibility even at low temperatures.
Good resistance to UV rays
Asbestos free
Halogen free - waterproof - Thermal insulator
Resistant to transformer oils
Good compatibility with paints and solvents
Reference STANDARDS
- Compliant with the RoHS directive
- Complies with the Reach directive
- EN 60695-2-10 (05-2001)
- EN 60695-2-11 (07-2001)
- EN (CEI) 60684-3 SHEETS 400 A 402 (02/2003)
- EN 60684-1 (10-2003)
- EN 60684-2 (07-2012)
- Ul 1441 / CSA C22.2 N° 198.3 15C UL Listed: Approved with VW-1 flame retardant test (vertical test) File number: UZIQ2 - E330510
- Sheath diameters: from Ø 0.5 to Ø 33mm
- Standard brick red colour
- Other colours: green, blue, black, yellow, white, grey, brown.
AVAILABLE DIAMETERS
0.50 - 0.80 - 1 - 1.50 - 2 - 2.50 - 3 - 3.50 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 12 - 14 - 16 - 18 - 20 - 22 - 22 - 25 - 30
Temperature class C
Continuous operating temperature: -60° +250°
Dielectric strength: 1.5 kV to 7 kV
Flammable and self-extinguishing
Good resistance in the presence of flames, splashes of molten metal or glass, steam flows.
Excellent flexibility even at low temperatures.
Good resistance to UV rays
Asbestos free
Halogen free - waterproof - Thermal insulator
Resistant to transformer oils
Good compatibility with paints and solvents
Reference STANDARDS
- Compliant with the RoHS directive
- Complies with the Reach directive
- EN 60695-2-10 (05-2001)
- EN 60695-2-11 (07-2001)
- EN (CEI) 60684-3 SHEETS 400 A 402 (02/2003)
- EN 60684-1 (10-2003)
- EN 60684-2 (07-2012)
- Ul 1441 / CSA C22.2 N° 198.3 15C UL Listed: Approved with VW-1 flame retardant test (vertical test) File number: UZIQ2 - E330510
- Sheath diameters: from Ø 0.5 to Ø 33mm
- Standard brick red colour
- Other colours: green, blue, black, yellow, white, grey, brown.
AVAILABLE DIAMETERS
0.50 - 0.80 - 1 - 1.50 - 2 - 2.50 - 3 - 3.50 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 12 - 14 - 16 - 18 - 20 - 22 - 22 - 25 - 30
Related products
STAINLESS STEEL BRAIDED SMOOTH TEFLON-PTFE ...
Injection extruded sintered ptfe tube resistant to all chemical agents and non-toxic, food grade mix. excellent resistan...
INOXFLEX/TR CONNECTED HOSE
Flexible hose entirely in stainless steel: internal made of parallel coils in aisi316, external braiding in aisi304 stai...

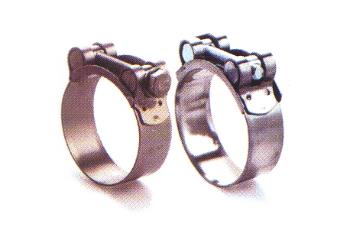

HEAVY DUTY BOLT CLAMP W2
