SPIRALIN_HT
ONLINE CATALOGUE › SPIRAL
Download sheet in pdf format

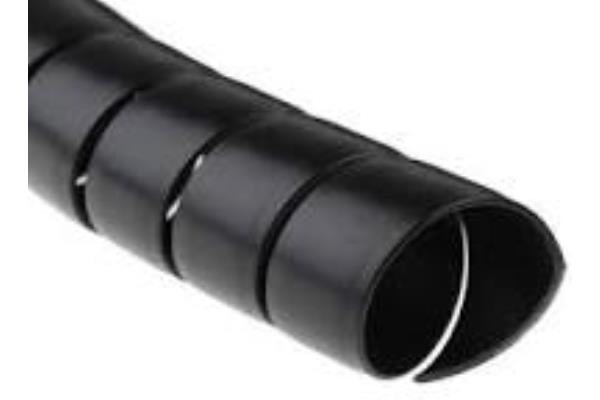

Spiral and curved shaped strap in rigid shock-proof POLYAMIDE (PA). Ideal for wrapping and containing bundles of hydraulic, hydraulic hoses and electrical wiring.
Excellent resistance to abrasion, crushing, ultra violet rays, ozone and flame.
Complies with the UL94 HB self-extinguishing class
Operating temperature: -10° +125°C
Elongation at break: 50%
Density: 1.12 g/cm 3 (ISO 1183)
Viscosity:228 cm 3 (ISO307)
Elasticity:3.300/1500 Mpa (ISO 527-2)
Flexural strength: 110/30 Mpa (ISO)
Electrical Resistance: 10 and 13 O
Excellent resistance to abrasion, crushing, ultra violet rays, ozone and flame.
Complies with the UL94 HB self-extinguishing class
Operating temperature: -10° +125°C
Elongation at break: 50%
Density: 1.12 g/cm 3 (ISO 1183)
Viscosity:228 cm 3 (ISO307)
Elasticity:3.300/1500 Mpa (ISO 527-2)
Flexural strength: 110/30 Mpa (ISO)
Electrical Resistance: 10 and 13 O
| diameter internal mm | diameter external mm | weight theoretical kg/m | length roll m |
| 8 | 12 | 0.04 | 50 |
| 13 | 16 | 0.05 | 50 |
| 16 | 20 | 0.07 | 50 |
| 19 | 25 | 0.09 | 50 |
| 22 | 27 | 0.12 | 50 |
| 25 | 29 | 0.14 | 50 |
| 27 | 32 | 0.15 | 50 |
| 30 | 35 | 0.17 | 50 |
| 35 | 40 | 0.21 | 50 |
| 44 | 50 | 0.32 | 25 |
| 56 | 63 | 0.61 | 20 |
| 67 | 75 | 0.75 | 20 |
| 80 | 90 | 1.30 | 10 |
