INTERMEDIATE STRAIGHT STAINLESS STEEL FITTING FITTING
ONLINE CATALOGUE › FITTINGS FOR THE CHEMICAL AND FOOD INDUSTRY › STAINLESS STEEL AISI316L FITTINGS
Download sheet in pdf format
Code: 344 X

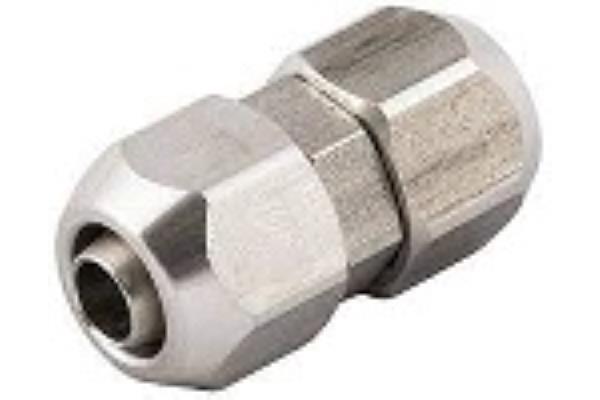

INTERMEDIATE STRAIGHT FITTING FITTING IN AISI 316L STAINLESS STEEL
Connection hoses: PA6, PA11, PA12, Polyethylene, Polyurethane, PTFE, FEP.
Minimum Temperature -40°C Maximum Temperature +140°C
Maximum pressure: 15 bar (1.5 Mpa)
Compatible fluids: Compressed air - Vacuum - Water. Fluids for the food and chemical industry
Minimum package 10 pieces
reference standards:
- REACH DIRECTIVE 1907/2006
- RoHS3 EU DIRECTIVE 2011/65/EC
- PED 2014/68/EU
- NSF/ANSI 169
- MOCA 1935/2004
- SILICON FREE
INTERMEDIATE STRAIGHT FITTING FITTING IN AISI 316L STAINLESS STEEL
Connection hoses: PA6, PA11, PA12, Polyethylene, Polyurethane, PTFE, FEP.
Minimum Temperature -40°C Maximum Temperature +140°C
Maximum pressure: 15 bar (1.5 Mpa)
Compatible fluids: Compressed air - Vacuum - Water. Fluids for the food and chemical industry
Minimum package 10 pieces
reference standards:
- REACH DIRECTIVE 1907/2006
- RoHS3 EU DIRECTIVE 2011/65/EC
- PED 2014/68/EU
- NSF/ANSI 169
- MOCA 1935/2004
- SILICON FREE
| code | measures tube |
| 32C344IX06/04 | 6/4 |
| 32C344IX08/06 | 8/6 |
| 32C344IX10/08 | 10/8 |
