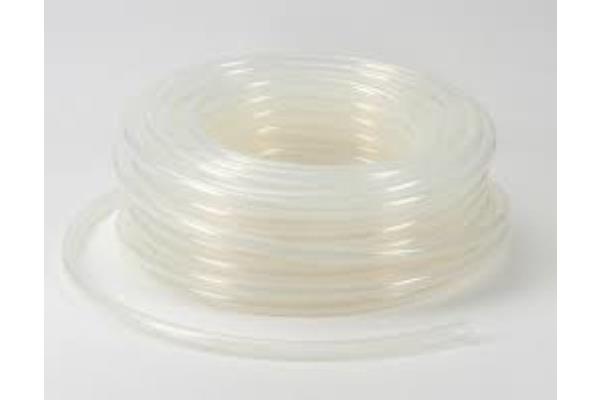

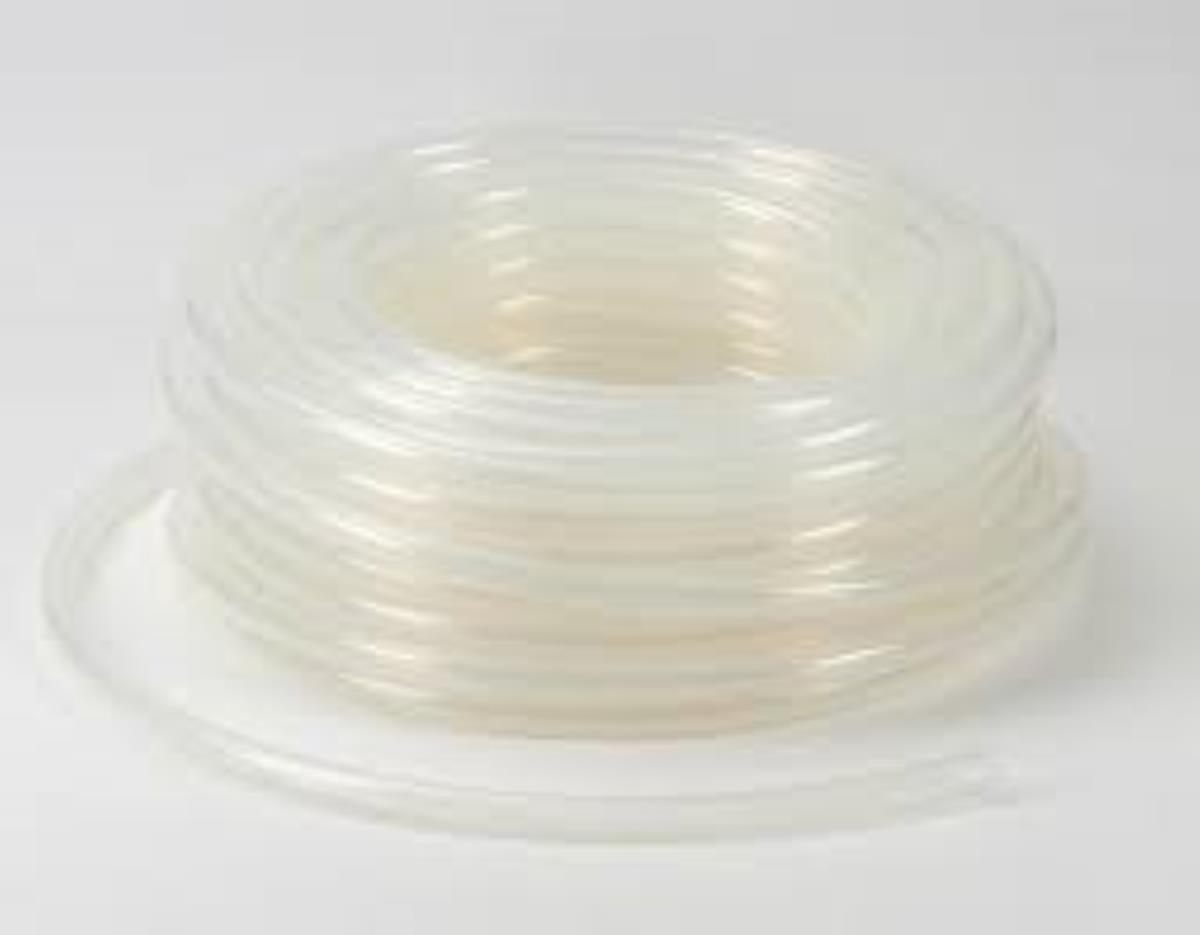

Flexible linear tube in food-grade polyurethane ether. Produced in transparent colors on request.
Standards and declarations:
EC Regulation 1935/2004
EC Regulation 10/2011
DM 03/21/73
FDA Title 21
Characteristics
Flexible hose in ether-based polyurethane, stabilized against light and hardness 54 Shore D.
Food grade, acts in contact with solid and liquid foods.
Produced in a range of transparent colors which, in the case of liquids, allow the passage of the fluid to be observed.
Operating temperature: from -40°C to 60°C
Safety factor on operating pressure: 3:1 Recommended fittings:
All types of pneumatic fittings (rapid, semi-rapid, crimping, olive and hose connector)
Standard roll lengths: 25-50-100 m
APPLICATIONS:
INDUSTRIAL AUTOMATION,
MACHINE TOOLS,
ROBOTICS,
TRANSFER OF FOOD LIQUIDS AND DRINKING WATER
RESISTANCE TO HYDROLYSIS
Diameter internal mm | Diameter external mm | thickness wall mm | Minimum radius of curvature mm | Pressure of exercise at 23° Cafe |
2.5 | 4 | 0.75 | 15 | 12 |
2.7 | 4.3 | 0.8 | 20 | 12 |
3.8 | 6 | 1.1 | 25 | 11 |
5.5 | 8 | 1.25 | 40 | 9 |
7.5 | 10 | 1.25 | 60 | 7 |
8 | 12 | 2 | 50 | 10 |
9 | 12 | 1.5 | 70 | 7 |
11 | 16 | 2.5 | 75 | 9 |
