WATER VACUUM HOSE
ONLINE CATALOGUE › HOSES › Water intake hoses
Download sheet in pdf format

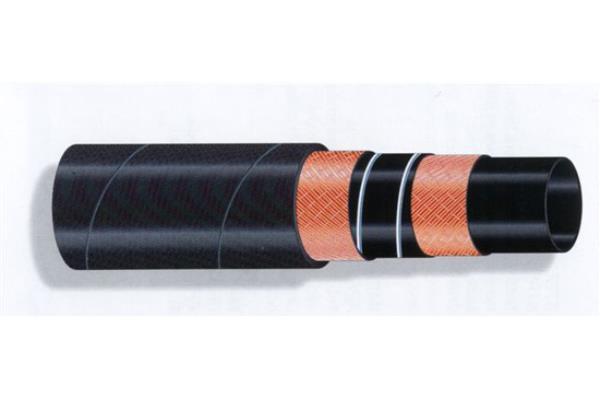

Rubber hose for suction and delivery of water and non-corrosive fluids.
Tube: black synthetic rubber. High tenacity canvases inserted.
Built-in steel spiral. Anti-abrasive cover with fine cloth finish, resistant to atmospheric agents, black colour.
Maximum operating pressure: 10 bar, burst 30 bar.
Suction value: 0.8 bar
Operating temperature: -30° +80° C.
Rolls from 40 to 61 metres.
Tube: black synthetic rubber. High tenacity canvases inserted.
Built-in steel spiral. Anti-abrasive cover with fine cloth finish, resistant to atmospheric agents, black colour.
Maximum operating pressure: 10 bar, burst 30 bar.
Suction value: 0.8 bar
Operating temperature: -30° +80° C.
Rolls from 40 to 61 metres.
| Code | Diameters mm | Weight Kg/m | radius of curvature mm |
|---|---|---|---|
| 04GASP1000019 T | 19x29 | 0.55 | 115 |
| 04GASP1000025 T | 25x35 | 0.77 | 150 |
| 04GASP1000030 T | 30x40 | 0.91 | 180 |
| 04GASP1000032 T | 32x42 | 0.97 | 190 |
| 04GASP1000035 T | 35x45 | 1.08 | 210 |
| 04GASP1000038 T | 38x49 | 1.20 | 230 |
| 04GASP1000040 T | 40x51 | 1.28 | 240 |
| 04GASP1000045 T | 45x57 | 1.49 | 270 |
| 04GASP1000050 T | 51x62 | 1.76 | 310 |
| 04GASP1000055 T | 55x67 | 1.85 | 350 |
| 04GASP1000060 T | 60x72 | 1.93 | 360 |
| 04GASP1000060 T | 63.5x76 | 2.40 | 380 |
| 04GASP1000070 T | 70x84 | 2.65 | 420 |
| 04GASP1000075 T | 75x88 | 2.85 | 460 |
| 04GASP1000080 T | 80x92 | 3.09 | 480 |
| 04GASP1000090 T | 90x102 | 3.20 | 540 |
| 04GASP1000102 T | 102x117 | 4.00 | 610 |
| 04GASP1000110 T | 110x123 | 4.66 | 660 |
| 04GASP1000120 T | 120x137 | 5.21 | 720 |
| 04GASP1000127 T | 127x144 | 7.00 | 760 |
| 04GASP1000150 T | 152x170 | 10.00 | 920 |
| 04GASP1000203 T | 203x228 | 5.00pm | 1220 |
