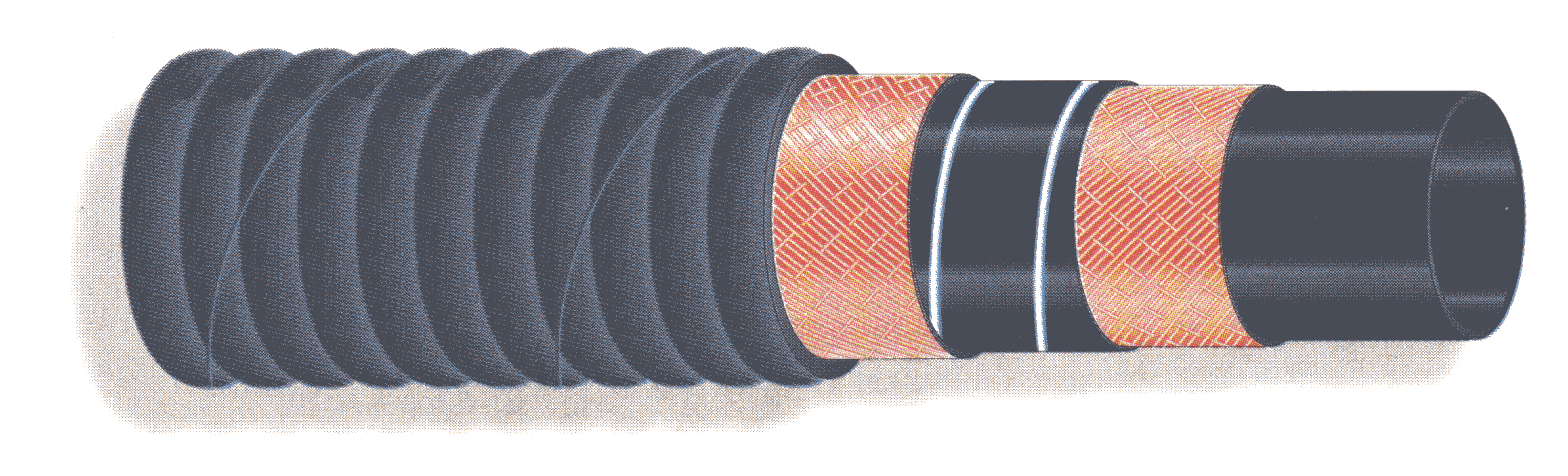

SEWAGE SUCTION HOSE
ONLINE CATALOGUE › HOSES › Water intake hoses
Download sheet in pdf format

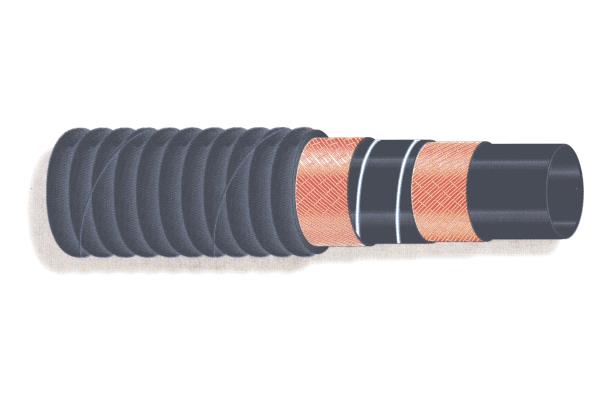

Rubber hose for suction and delivery of water and non-corrosive fluids.
Tube: black synthetic rubber.
High tenacity canvases inserted.
Built-in steel spiral.
Wavy external surface with canvas impression.
Anti-abrasive cover with fine cloth finish, resistant to atmospheric agents.
With smooth end sleeves at the ends.
Suction value: 0.8 bar
Operating temperature: -30°C to +80°C.
Applications: water pipes for agricultural irrigation systems, construction, civil protection and fire prevention, tankers, agricultural trailers, pumps, draining of septic tanks.
Available packages: 2/3/4/5/6 meter BARS
Tube: black synthetic rubber.
High tenacity canvases inserted.
Built-in steel spiral.
Wavy external surface with canvas impression.
Anti-abrasive cover with fine cloth finish, resistant to atmospheric agents.
With smooth end sleeves at the ends.
Suction value: 0.8 bar
Operating temperature: -30°C to +80°C.
Applications: water pipes for agricultural irrigation systems, construction, civil protection and fire prevention, tankers, agricultural trailers, pumps, draining of septic tanks.
Available packages: 2/3/4/5/6 meter BARS
| Code | Dimensions OR mm | pressure of exercise Cafe | Weight Kg/m | Radius of curvature mm |
|---|---|---|---|---|
| 04GLIQ0000051 | 51 | 10 | 1.60 | 250 |
| 04GLIQ0000060 | 60 | 10 | 1.80 | 300 |
| 04GLIQ0000076 | 76 | 10 | 2.45 | 380 |
| 04GLIQ0000080 | 80 | 10 | 2.77 | 400 |
| 04GLIQ0000100 | 102 | 10 | 3.40 | 500 |
| 04GLIQ0000110 | 110 | 10 | 3.82 | 550 |
| 04GLIQ0000120 | 120 | 10 | 4.36 | 600 |
| 04GLIQ0000127 | 127 | 5 | 4.50 | 635 |
| 04GLIQ0000133 | 133 | 5 | 4.70 | 665 |
| 04GLIQ0000150 | 152 | 5 | 5.60 | 750 |
| 04GLIQ0000203 | 203 | 5 | 9.60 | 1015 |
| 04GLIQ0000254 | 254 | 3 | 12.25 | 1270 |
| 04GLIQ0000305 | 305 | 3 | 16.60 | 1125 |
