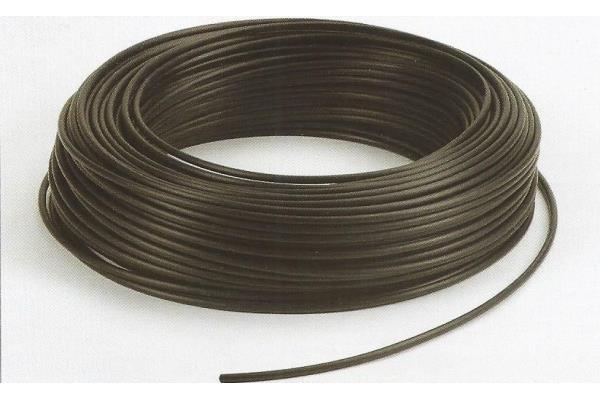

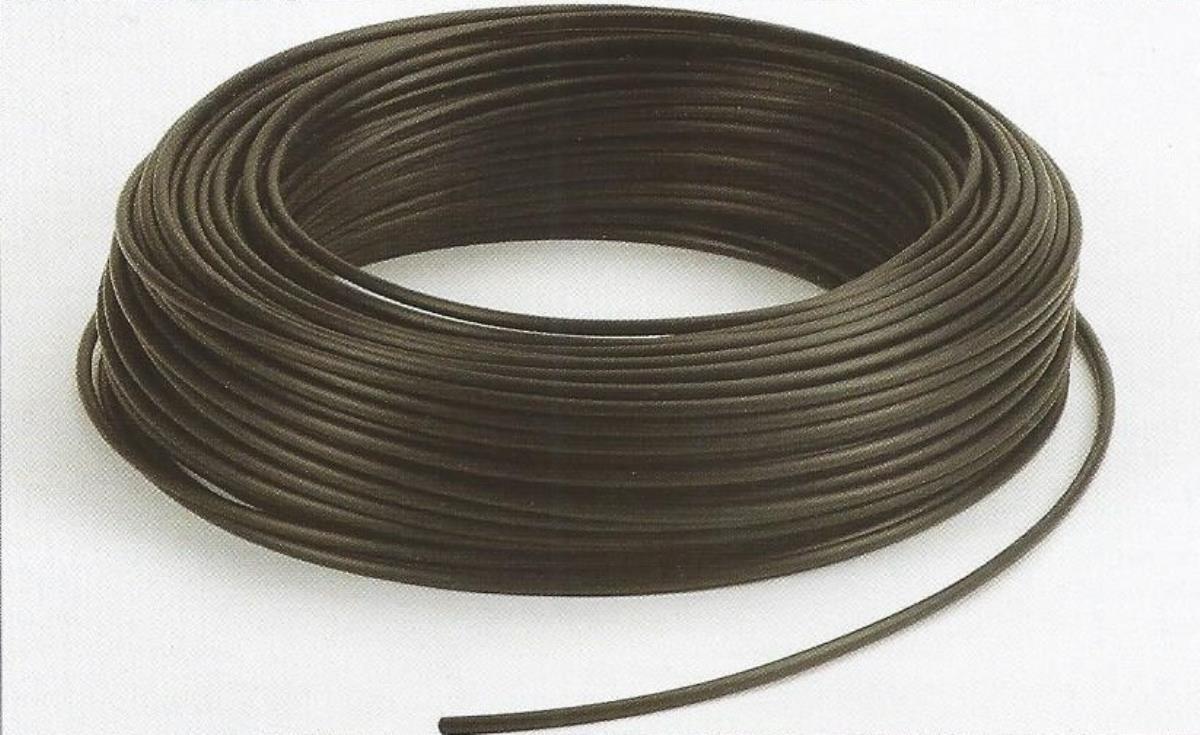

POLYURETHANE HOSE - ATEX ANTISTATIC EXTRAFLEX



Download sheet in pdf format
Flexible linear pipe in dissipative ANTISTATIC POLYURETHANE 98, for low pressure fluids.

In flexible triple-layer ETHER-based polyurethane, light-stabilised, 98 ShA. Its multilayer structure is made up of an internal and an external layer of dissipative (antistatic) polyurethane with surface electrical resistivity <=10 6 Ohm according to ISO 8031:2009(E) and an intermediate layer of polyurethane which gives the product high mechanical properties.
Suitable for use in the environment , group 2, category 2/3 G&D

SECTORS OF USE
Electronics industry, testing, engine test rooms, fuel systems, industrial automation, robotics, energy chains.


USE
Passage of compressed air in flammable environments, machine tools, vacuum, paint dust.


Black colour

Standard lengths: 25-50-100 m

CODE DIAMETER
INTERNAL
mm
DIAMETER
EXTERNAL
mm
RADIUS
minimum curvature
mm
PRESSURE
of exercise
at 23° in bar
03EXAS025_04 2.5 4 15 15
03EXAS038_06 3.8 6 25 14
03EXAS050_08 5.0 8 30 15
03EXAS055_08 5.5 8 40 12
03EXAS065_10 6.5 10 40 14
03EXAS080_12 8.0 12 50 13
