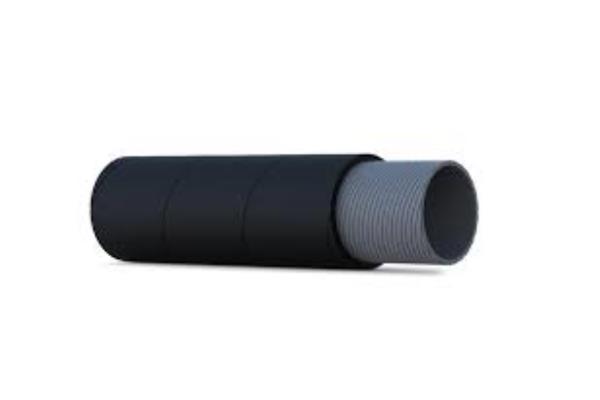

RUBBER SLEEVE FOR HOPPERS
ONLINE CATALOGUE › HOSES › Flexible rubber hoses for passage of industrial abrasives
Download sheet in pdf format
Rubber sleeve for free discharge of dusty abrasive products.
Smooth black interior and exterior. Surface with canvas impression.
STRUCTURE
DIMENSIONAL TOLERANCES:
Internal diameter and length: ISO 1307
Wall thickness: DIN 7715 T4 S2
PRODUCTION DIAMETERS: from Ø 20 to Ø 152 intermediate on request
Maximum package 40 metres, others on request
Smooth black interior and exterior. Surface with canvas impression.
STRUCTURE
- EPDM rubber
- Density: 1.05 +/- 0.03 gr/cm 3
- Breaking load: >80 Kg/cm 2
- Elongation at break: >500%
- Hardness: 53+/-5 Sh.A.
- Tube without textile reinforcements
DIMENSIONAL TOLERANCES:
Internal diameter and length: ISO 1307
Wall thickness: DIN 7715 T4 S2
PRODUCTION DIAMETERS: from Ø 20 to Ø 152 intermediate on request
Maximum package 40 metres, others on request
