ABRASPIR HOSE
ONLINE CATALOGUE › HOSES › Flexible rubber hoses for passage of industrial abrasives
Download sheet in pdf format

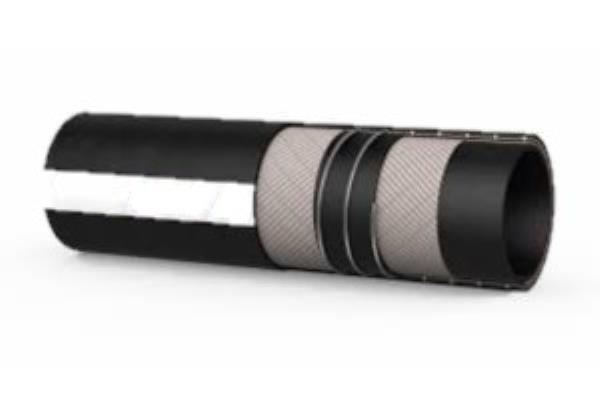

Structure in special anti-abrasive compound.
Smooth black highly anti-abrasive rubber tube with
textile reinforcement inserts and steel spiral and copper braid for built-in earthing.
Cover: antistatic black (Resistivity <10 6 O/m) cloth impression resistant to abrasion and atmospheric agents.
Coverage variants:
SMOOTH (CORD), SMOOTH WITH STEEL SPRING (SPL),
WAVY WITH STEEL SPIRE (SPO),
SEMI-CORRAVULATED WITH STEEL SPRING (CLC),
RIBBED WITH STEEL SPIRE (SPG)
Use: suction and delivery of highly abrasive dry or water-mixed fluids such as sand and gravel, cement and concrete.
Standards : abrasion losses of the underlayer according to DIN 53516 50 +/- 5 mm 3.
Maximum working pressure: 5 or 10 bar version, safety coefficient 3
Operating temperature: -40° +70°C.
Smooth black highly anti-abrasive rubber tube with
textile reinforcement inserts and steel spiral and copper braid for built-in earthing.
Cover: antistatic black (Resistivity <10 6 O/m) cloth impression resistant to abrasion and atmospheric agents.
Coverage variants:
SMOOTH (CORD), SMOOTH WITH STEEL SPRING (SPL),
WAVY WITH STEEL SPIRE (SPO),
SEMI-CORRAVULATED WITH STEEL SPRING (CLC),
RIBBED WITH STEEL SPIRE (SPG)
Use: suction and delivery of highly abrasive dry or water-mixed fluids such as sand and gravel, cement and concrete.
Standards : abrasion losses of the underlayer according to DIN 53516 50 +/- 5 mm 3.
Maximum working pressure: 5 or 10 bar version, safety coefficient 3
Operating temperature: -40° +70°C.
| Dimension internal diameter mm | Thickness sublayer mm | Weight theoretical g/m | Minimum radius of curvature mm | Empty Cafe |
|---|---|---|---|---|
| 80 | 7 | 5.85 | 400 | 0.90 |
| 102 | 7 | 7.00 | 500 | 0.90 |
| 127 | 7 | 8.50 | 650 | 0.9 |
| 152 | 7 | 11.80 | 900 | 0.9 |
| 203 | 5.5 | 3.30pm | 1650 | 0.9 |
| 254 | 5.5 | 20.60 | 2000 | 0.8 |
| 305 | 5.5 | 27.00 | 2750 | 0.8 |
