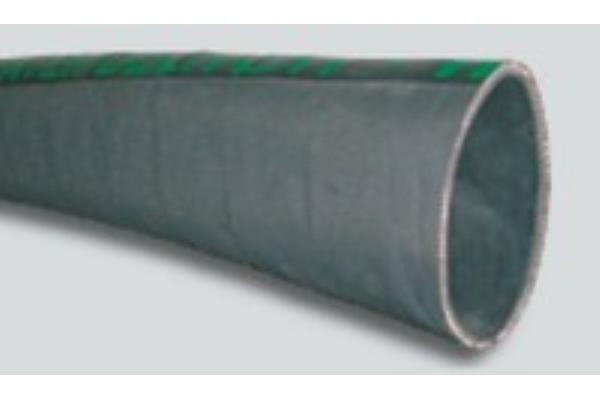

FLATTENABLE RUBBER HOSE 10 bar

ONLINE CATALOGUE  ›  HOSES  ›  Flattenable tubes

FLATTENABLE RUBBER HOSE 10 bar


Download sheet in pdf format
Rubber hose for water and inert fluid delivery, flattenable. Useful for irrigating fields or transferring water through submersible pumps in non-corrosive fluids. Due to its lightness and flattenability, it is ideal for use in mobile sprinkler irrigation systems.

STRUCTURE
• Underlayer: smooth black SBR rubber.
• Reinforcements: high-strength synthetic fabrics.
• Cover: black rubber with SBR canvas impression, resistant to abrasion and atmospheric agents.
• Surface: smooth with canvas impression.
• Operating temperature: -30°C +80°
INTERNAL DIAMETER

mm		 EXTERNAL DIAMETER

mm		 THEORETICAL WEIGHT

Kg/m		 PRESSURE
OF EXERCISE
 bar		 PRESSURE
OF EXPLOSION
bar		 ROLLS LENGTH

m
40 46 0.55 10 30 20/40/61
45 51 0.58 10 30 20/40/61
51 57 0.69 10 30 20/40/61
60 67 0.94 10 30 20/40/61
60 69 1.30 20 60 20/40/61
70 77 1.09 10 30 20/40/61
76 83 1.18 10 30 20/40/61
80 87 1.24 10 30 20/40/61
80 91 1.99 20 60 20/40/61
90 97 1.39 10 30 20/40/61
102 109 1.57 10 30 20/40/61
102 113 2.51 20 60 20/40/61
120 128 2.10 10 30 20/40/61
152 160 2.65 10 30 20/40/61
152 163 3.67 20 60 20/40/61
203 215 5.32 10 30 20/40
254 267 7.18 10 30 20
305 319 9.26 10 30 20
350 365 10.70 5 15 20
400 417 13.00 5 15 12
457 476 18.40 5 15 12
500 524 23.75 5 15 12
609 635 31.20 5 15 12
