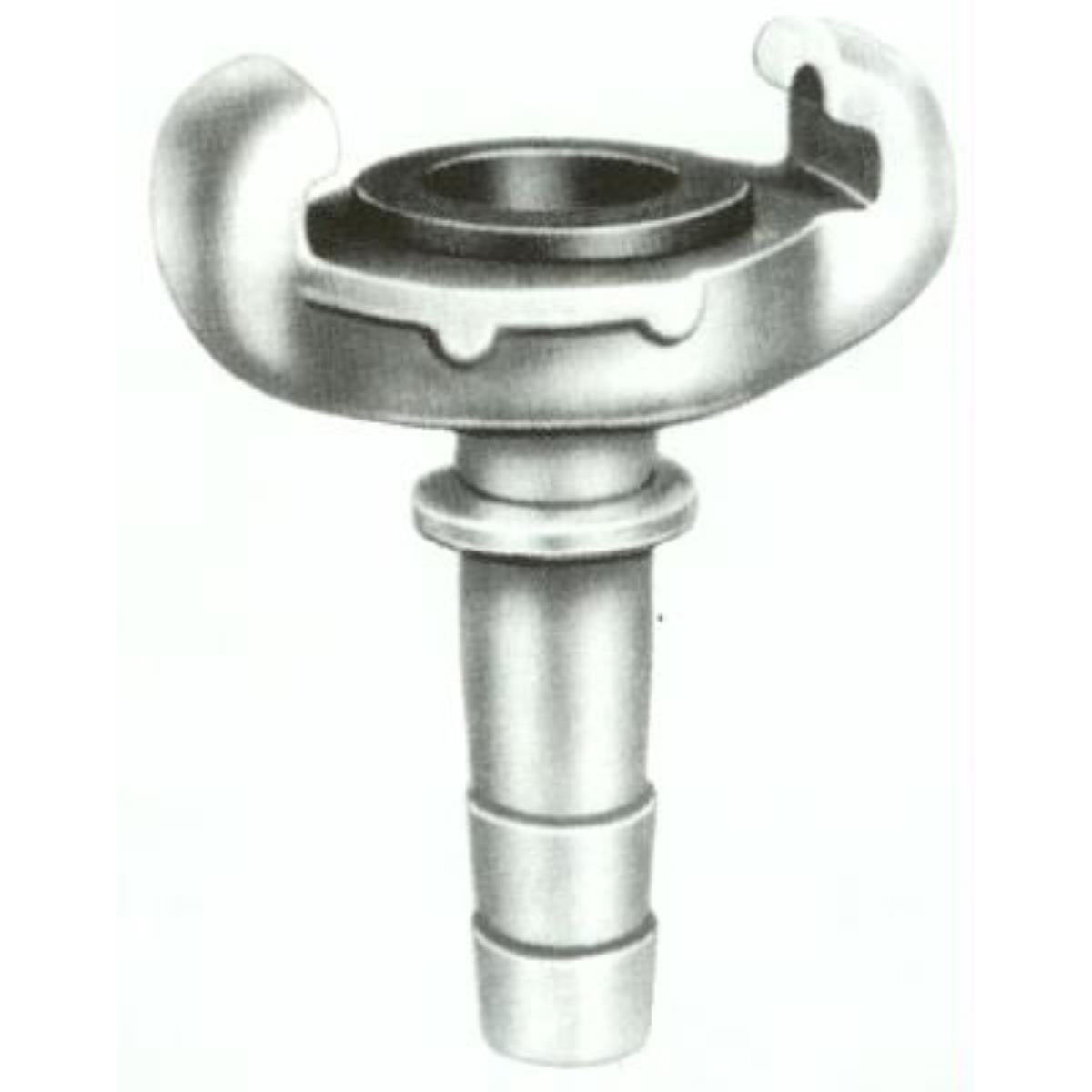

3400 EXPRESS STANDARD HOSE FITTING according to DIN 3489 WITH SAFETY RING
ONLINE CATALOGUE
›
FITTINGS FOR COMPRESSED AIR
›
EXPRESS FITTINGS FOR COMPRESSED AIR
Request a quote
Download sheet in pdf format
Code:
3400
Galvanized steel fittings for the passage of compressed air, NBR gasket, with collar
EUROPEAN type DIN 3489.
Operating pressure 10 bar
ALSO available in AISI304 stainless steel
Code
Measure
diameter
hose holder
mm
31M3400013
13
11.50
31M3400015
15
2.50pm
31M3400019
19
20.50
31M3400025
25
26.50
