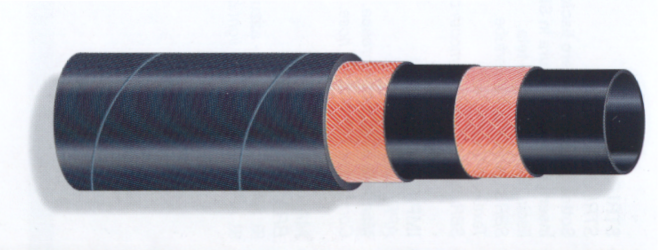

SPECIAL COMPRESS HOSE 25 bar
ONLINE CATALOGUE › HOSES › Compressed air hoses
Download sheet in pdf format

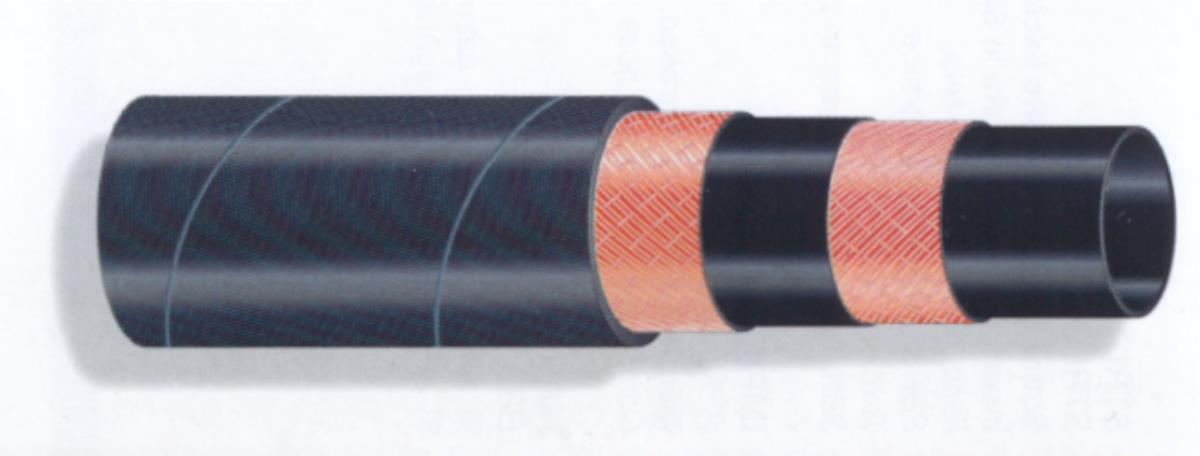

Rubber hose with high tenacity fabrics inserted.
Smooth black SBR tube, resistant to oil mist.
Anti-abrasive black cover with fine cloth finish.
Operating temperature: -30° +80° C.
Operating pressure 25 bar - burst 75 bar.
Use: delivery of compressed air/water/inert fluids
for heavy duty, in construction and road construction, railway and mining industries.
Smooth black SBR tube, resistant to oil mist.
Anti-abrasive black cover with fine cloth finish.
Operating temperature: -30° +80° C.
Operating pressure 25 bar - burst 75 bar.
Use: delivery of compressed air/water/inert fluids
for heavy duty, in construction and road construction, railway and mining industries.
| Code item | OR mm | Weight Kg/m |
|---|---|---|
| 01GS25019/032 T | 19 x 32 | 0.74 |
| 01GS25025/038 T | 25 x 39 | 1.00 |
| 01GS25032/048 T | 32 x 48 | 1.43 |
| 01GS25038/054 T | 38 x 54 | 1.64 |
| 01GS25050/069 T | 51 x 69 | 2.41 |
| 01GS25075/096 | 76 x 96 | 3.84 |
| 01GS25100/125 | 102 x 125 | 5.82 |
