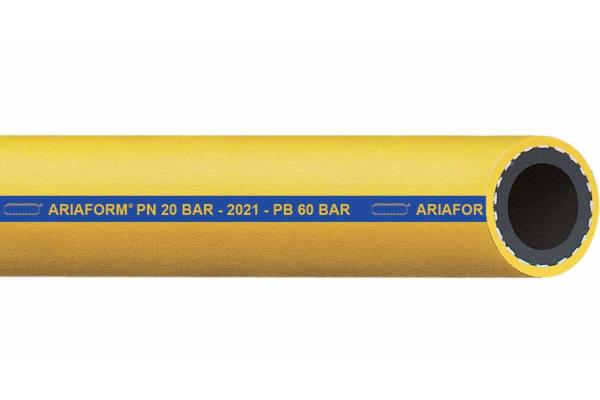

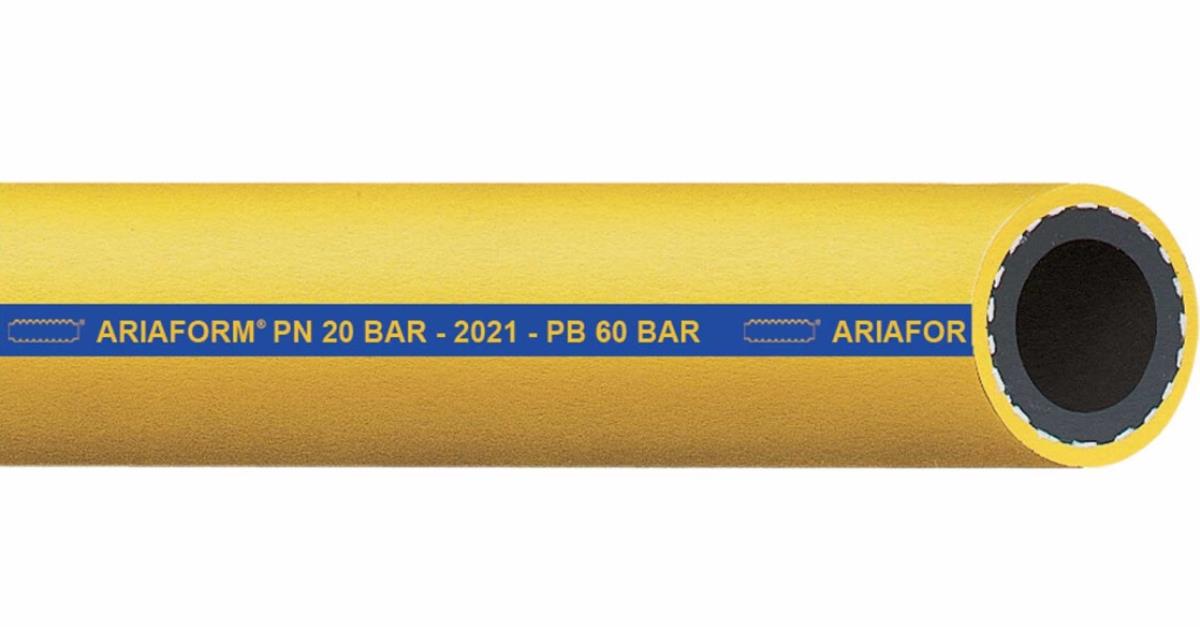

ARIAFORM 20
ONLINE CATALOGUE › HOSES › Compressed air hoses
Download sheet in pdf format
High-quality, robust, thick-walled and flexible hose for heavy-duty applications in industry, workshops, tunneling, infrastructure and construction sites. This type of hose is also commonly used in the rental industry where it is rented with heavy duty compressors. Suitable for the passage of water and air. The hose is also resistant to oily compressed air.
Technical specifications:
Standard: EN ISO 1307:2008
Operating pressure at 20°C: 20 bar
Burst pressure: 60 bar
Minimum temperature: -20°C
Maximum temperature: +60 °C
Internal lining material: Thermoplastic elastomer
Internal lining: Smooth
External covering material: Thermoplastic elastomer
Coating: Smooth Inserts
Reinforcements: Braided yarn inserts
Inner core color: black
External covering colour: yellow
Resistance outer coating: UV resistant
Technical specifications:
Internal Ø (mm) | thickness (mm) | External Ø (mm) | radius of curvature (mm) | Weight (kg/mc) | roll length (M) |
| 13.0 | 5.0 | 23.0 | 105 | 0.385 | 40 - 60 - 100 |
| 19.0 | 6.0 | 31.0 | 150 | 0.610 | 40 - 60 |
| 25.0 | 7.0 | 39.0 | 200 | 0.880 | 40 - 60 |
