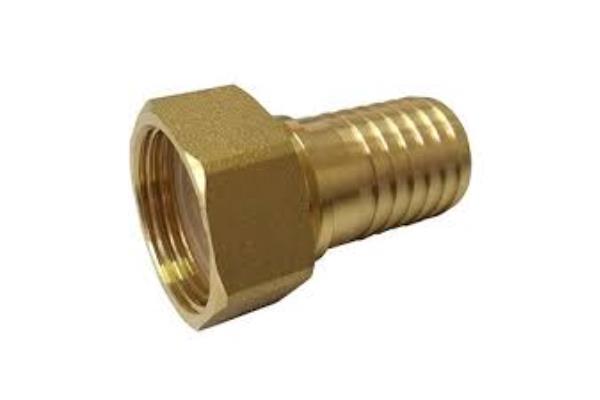

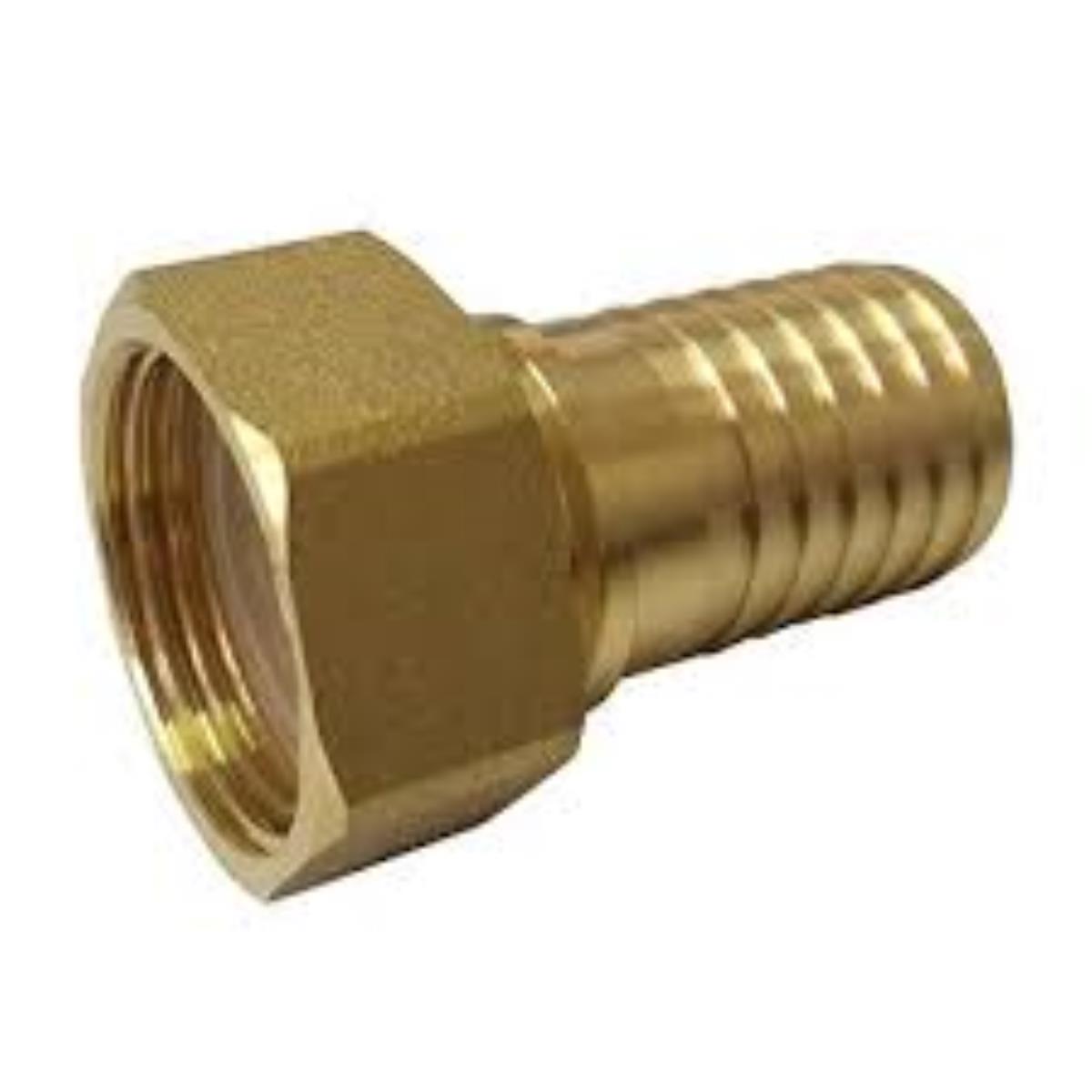

FEMALE HOSE FITTING IN BRASS EN 14420-2
ONLINE CATALOGUE › FITTINGS FOR AGRICULTURAL-INDUSTRIAL MAINTENANCE › EN 14420-2 BRASS FITTINGS
Download sheet in pdf format
BRASS FEMALE THREADED FITTING ACCORDING TO EN 14420-2 STANDARD
HOSE BARREL - BSPP-CYLINDRICAL FEMALE THREAD,
COMPLETE WITH COLLAR FOR TIGHTENING WITH SPANNLOK HALF-SHELLS OR PRESS RINGS.
ON REQUEST VERSION WITH SMOOTH HOSE PORT FOR HOSES WITH HD POLYETHYLENE OR PTFE UNDERLAYER.
MAXIMUM WORKING PRESSURE 25 BAR
HOSE BARREL - BSPP-CYLINDRICAL FEMALE THREAD,
COMPLETE WITH COLLAR FOR TIGHTENING WITH SPANNLOK HALF-SHELLS OR PRESS RINGS.
ON REQUEST VERSION WITH SMOOTH HOSE PORT FOR HOSES WITH HD POLYETHYLENE OR PTFE UNDERLAYER.
MAXIMUM WORKING PRESSURE 25 BAR
| HOSE HOLDER | THREAD |
| DN 13 | 1/2" |
| DN 19 | 3/4" |
| DN 25 | 1" |
| DN 32 | 1"1/4 |
| DN 38 | 1"1/2 |
| DN 50 | 2" |
| DN 63 | 2"1/2 |
| DN 75 | 3" |
| DN 100 | 4" |
