SAFETY CLAMP EN 14420-3 STAINLESS STEEL 316
ONLINE CATALOGUE › CLAMPS AND TIGHTENING SYSTEMS › SAFETY CLAMP - SPANNLOC
Download sheet in pdf format

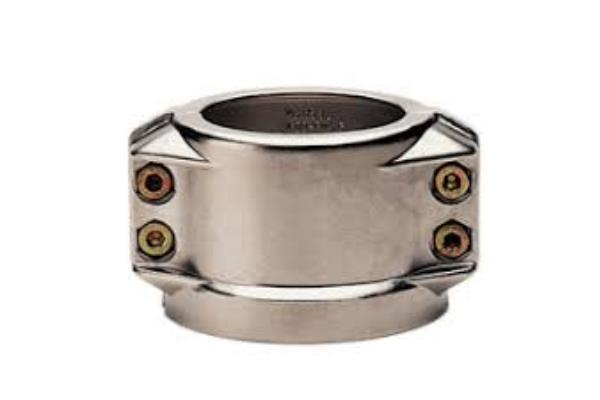

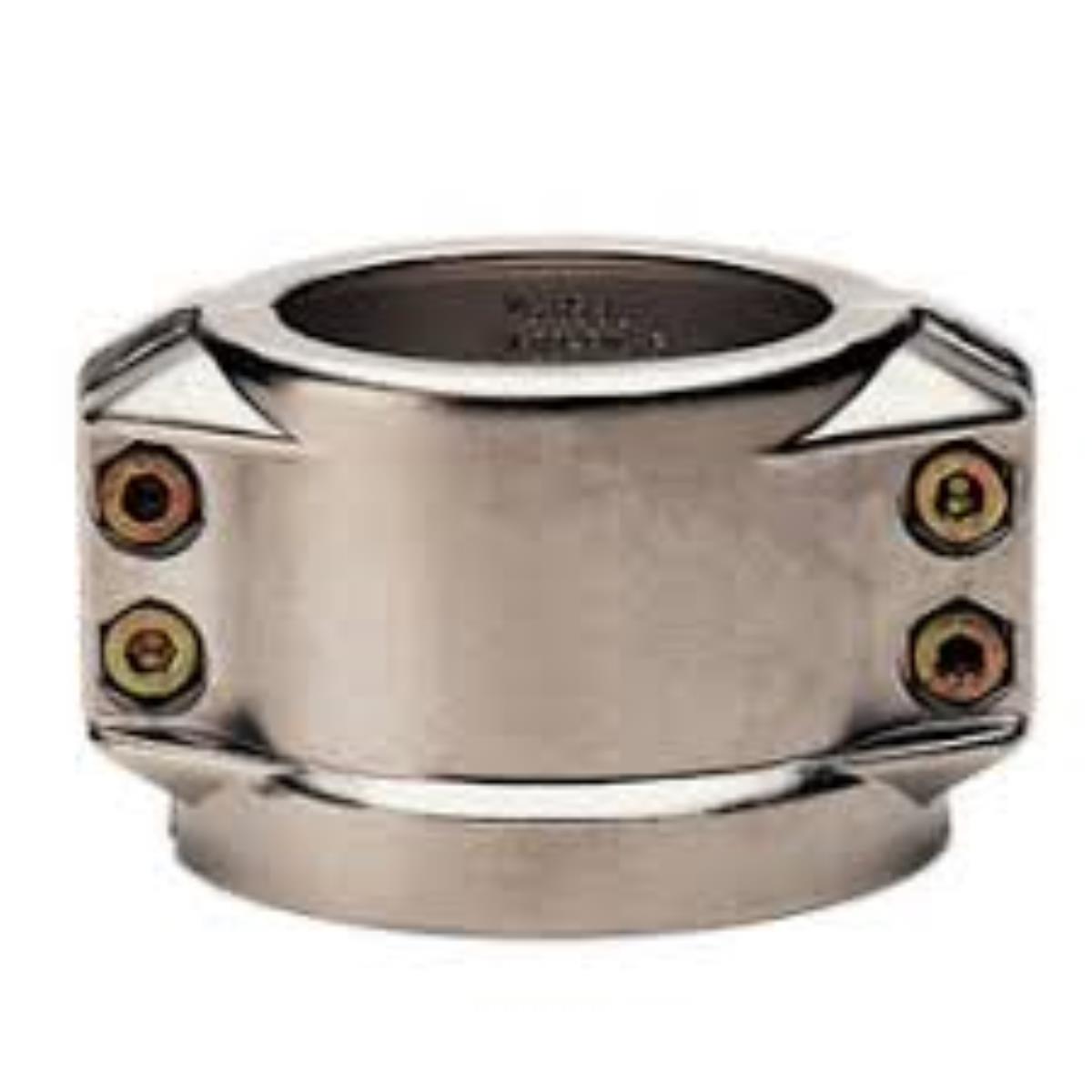

"SPANNLOC" type safety clamp, reference standard EN 14420-3
Materials: AISI 316 stainless steel shells - Stainless steel screws
Maximum working pressure: 25 bar up to DN 100.
The size identifies the closing range compatible with the external diameter of the tube
Attention!
Sealing guaranteed only for tightening on pipes that are smooth on the outside or on sleeves that are smooth at the ends.
Materials: AISI 316 stainless steel shells - Stainless steel screws
Maximum working pressure: 25 bar up to DN 100.
The size identifies the closing range compatible with the external diameter of the tube
Attention!
Sealing guaranteed only for tightening on pipes that are smooth on the outside or on sleeves that are smooth at the ends.
| dn | Max pressure | closing field | screws |
| 13 | 25 | 22-24 | M6x20 |
| 19 | 25 | 30-33 | M6x20 |
| 25 | 25 | 36-39 | M6x20 |
| 32 | 25 | 43-46 | M6x20 |
| 38 | 25 | 50-53 | M6x20 |
| 38 | 25 | 53-56 | M6x20 |
| 50 | 25 | 61-63 | M8x25 |
| 50 | 25 | 63-67 | M8x25 |
| 50 | 25 | 69-71 | M8x25 |
| 63 | 25 | 78-82 | M8x25 |
| 63 | 25 | 84-87 | M8x25 |
| 75 | 25 | 89-93 | M8x25 |
| 80 | 25 | 94-97 | M8x25 |
| 100 | 25 | 114-119 | M10x40 |
| 100 | 25 | 118-122 | M10x40 |
