STEAM HOSE 200 C



Download sheet in pdf format
Rubber hose specific for the passage of saturated steam
Structure: heat-resistant EPDM synthetic rubber, reinforced with metal braid, micro-perforated EPDM rubber cover resistant to heat, aging and atmospheric agents.

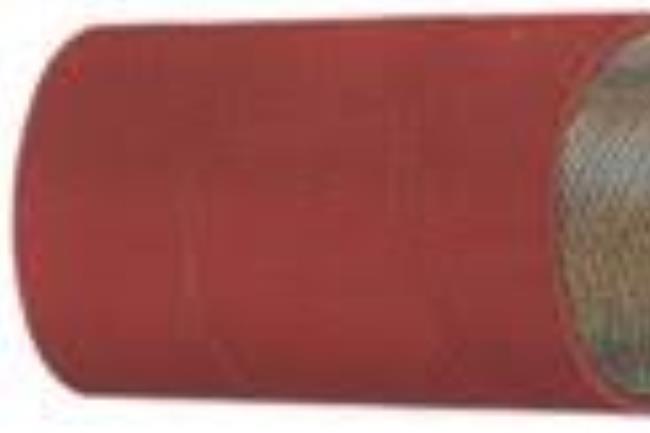

Appearance: BLACK or RED exterior with canvas impression, smooth interior.
Use: Hose suitable for the passage of high pressure saturated steam for industrial chemical systems.
Reference standard: BS 5342:85 type 2 class A
Operating temperature: -40°C +210°C continuous, +232°C peak.
Operating pressure: 17 bar, burst 170 bar.
40/61 meter rolls.

Code Dimensions
mm
09GVTR010/019 T 10x21
09GVTR013/022 T 13x25
09GVTR016/028 T 16x28
09GVTR019/032 T 19x32
09GVTR025/038 T 25x38
09GVTR032/046 T 32x46
09GVTR038/054 T 38x54
09GVTR050/064 T 51x67
09GVTR063/083 T 63x83
09GVTR076/096 T 76x96
09GVTR102/124 T 102x124
