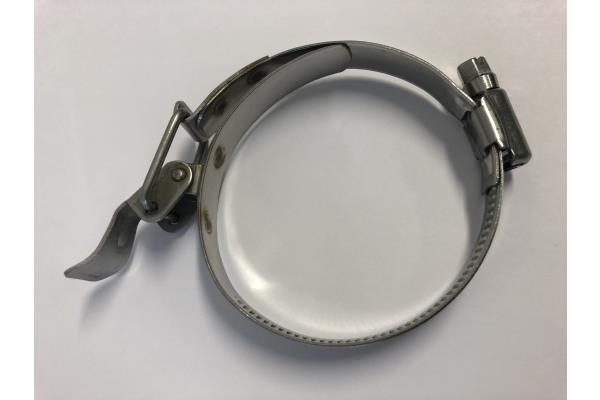

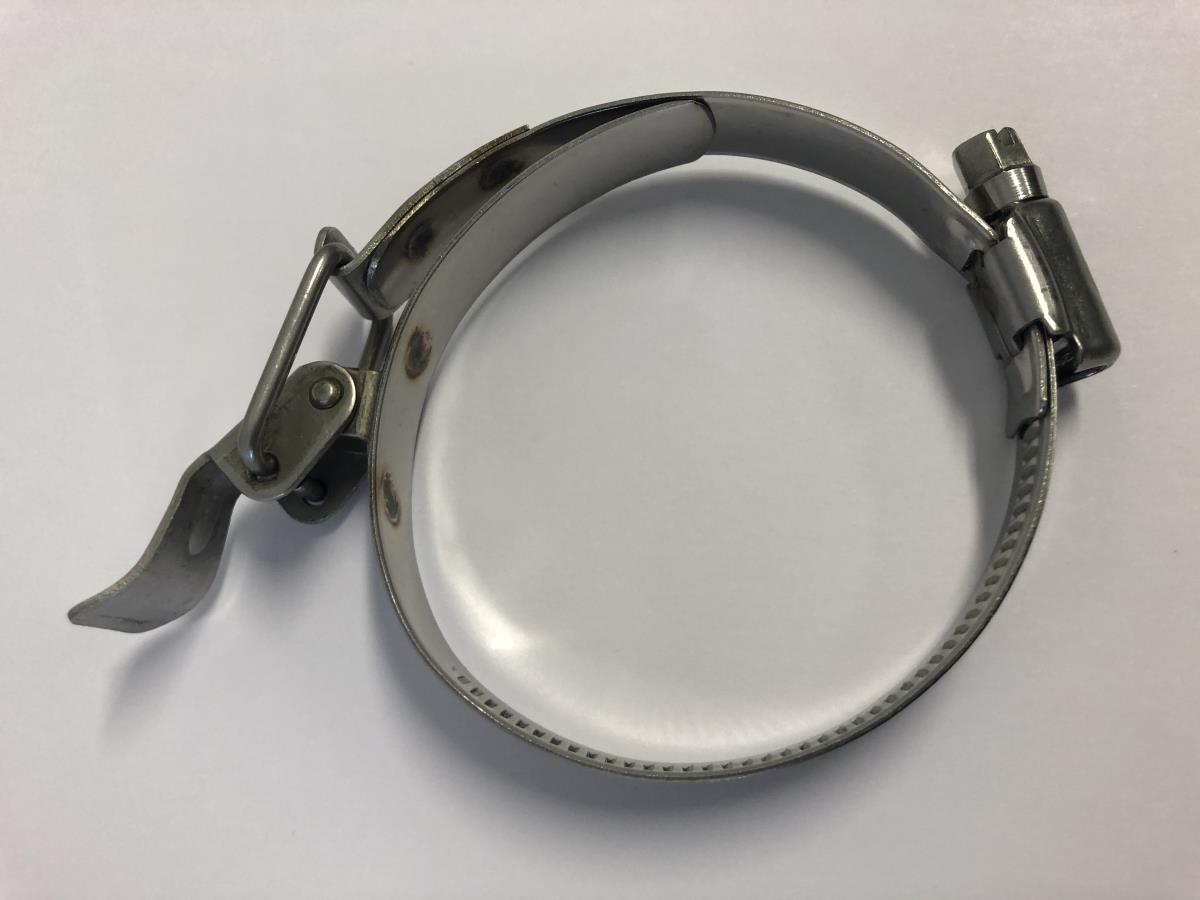

HEAVY LEVER CLAMP
ONLINE CATALOGUE › CLAMPS AND TIGHTENING SYSTEMS › LEVER CLAMP
Download sheet in pdf format
SAE STANDARD HI-TORQUE LEVER CLAMP FOR QUICK TIGHTENING OF LOW PRESSURE HOSES.
IDEAL FOR SPEED OF ASSEMBLY, IN PLACES THAT ARE DIFFICULT TO ACCESS OR SIMPLY FOR FREQUENT ASSEMBLY OR DISMANTLING FOR TRANSPORT OR MAINTENANCE OF PIPES.
HEAVY DUTY EXECUTION IN AISI 304 STAINLESS STEEL WITH 16mm BAND.
Breaking torque above 20 Nm
IDEAL FOR SPEED OF ASSEMBLY, IN PLACES THAT ARE DIFFICULT TO ACCESS OR SIMPLY FOR FREQUENT ASSEMBLY OR DISMANTLING FOR TRANSPORT OR MAINTENANCE OF PIPES.
HEAVY DUTY EXECUTION IN AISI 304 STAINLESS STEEL WITH 16mm BAND.
Breaking torque above 20 Nm
| code | field of closure | packaging |
| 41FALEVA_W416_025-040 | 25-40 | 10 |
| 41FALEVA_W416_032-054 | 32-54 | 10 |
| 41FALEVA_W416_045-062 | 45-62 | 10 |
| 41FALEVA_W416_055-062 | 55-62 | 10 |
| 41FALEVA_W416_070-088 | 70-88 | 10 |
| 41FALEVA_W416_083-100 | 83-100 | 10 |
| 41FALEVA_W416_095-113 | 95-113 | 10 |
| 41FALEVA_W416_108-125 | 108-125 | 10 |
| 41FALEVA_W416_121-140 | 121-140 | 10 |
| 41FALEVA_W416_133-150 | 133-150 | 10 |
| 41FALEVA_W416_146-163 | 146-163 | 10 |
| 41FALEVA_W416_159-176 | 159-176 | 10 |
| 41FALEVA_W416_172-190 | 172-190 | 4 |
| 41FALEVA_W416_184-200 | 184-200 | 4 |
| 41FALEVA_W416_197-215 | 197-215 | 4 |
| 41FALEVA_W416_210-235 | 210-235 | 4 |
| 41FALEVA_W416_248-265 | 248-265 | 4 |
| 41FALEVA_W416_292-336 | 292-336 | 4 |
