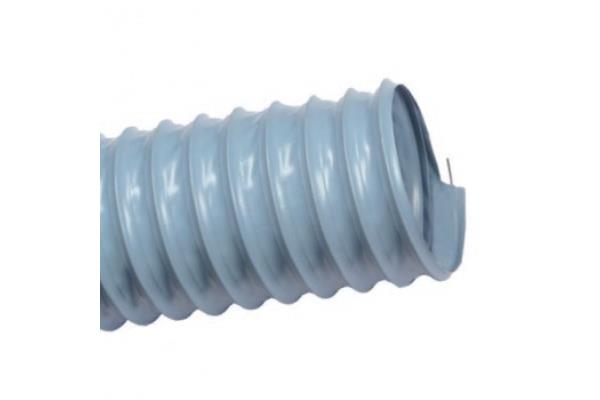

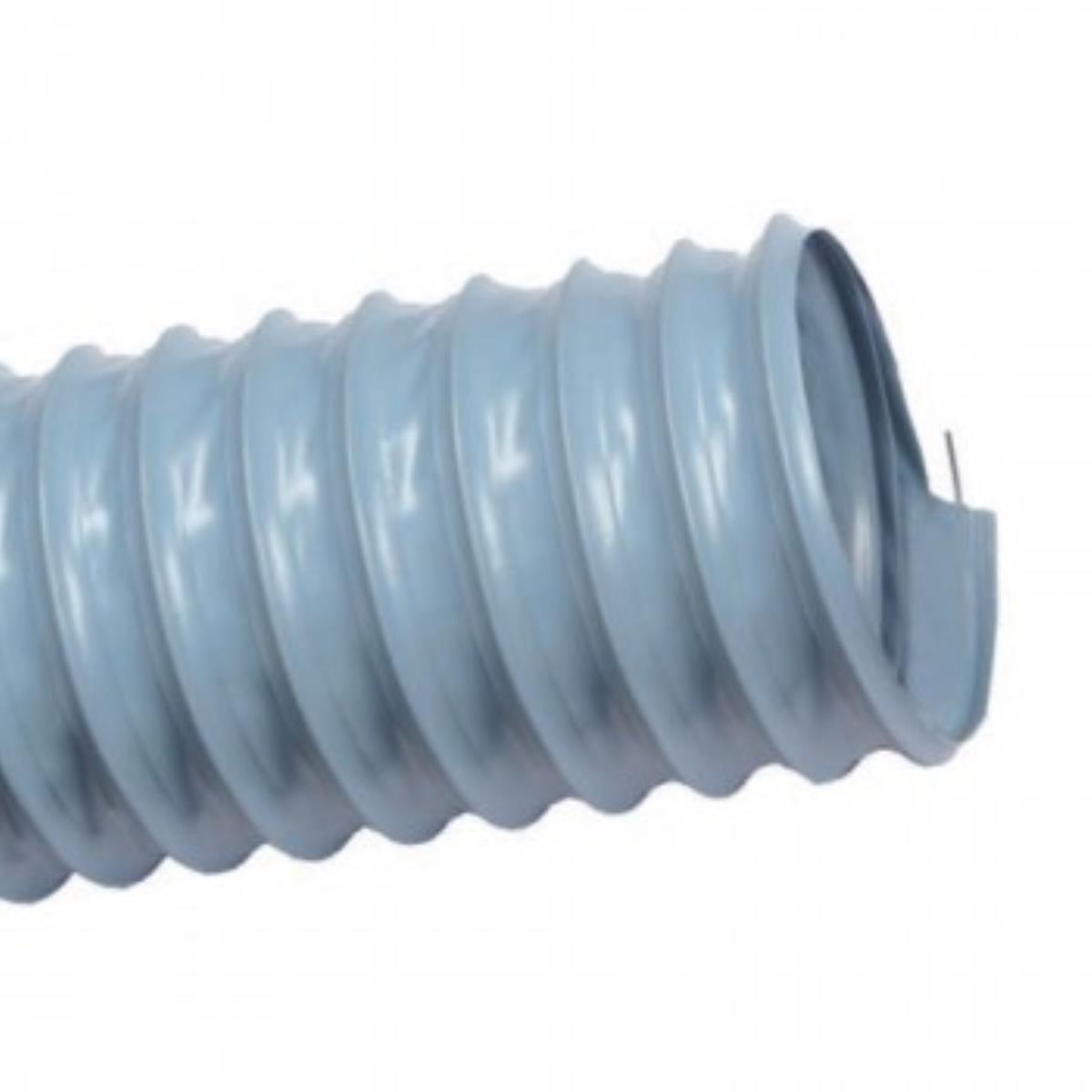

PL TUBE

ONLINE CATALOGUE › HOSES › Flexible pipes for ventilation or cold air intakes

PL TUBE

Download sheet in pdf format

Applications

flexible hose suitable for the passage of gas, dust, fibres, general uses
Extraction systems, dust collection systems, filtration systems, oil mist extraction
Galvanic aspiration
Chemical industry: chemical fumes, vapour recovery pipe to loading arm, paint fumes, paint mist extraction
Medical X-ray devices: cable protection tube (special type on request)
External dust protection tube/sheath

Property

light
highly flexible (3:1 compressible)
good resistance to alkalis and acids
good general chemical resistance
Flame retardant according to: UL94-HB
phthalate free

Construction

Harmonic steel wire embedded in the wall
High quality soft PVC wall
Wall thickness approx. 0.5 mm

Temperature range: -20°C to 70°C briefly up to 80°

Packaging: 10 meters standard, 15/20 on request

Code		Diameter internal	Operating pressure	Empty	Radius curvature	Weight
	mm		bar	bar	mm	Kg/m
11PVPL0000030		30	0.850	0.140	18	0.14
11PVPL0000040		40	0.645	0.105	24	0.18
11PVPL0000050		51	0.515	0.086	30	0.23
11PVPL0000060		60	0.430	0.072	36	0.27
11PVPL0000070		70	0.370	0.060	42	0.32
11PVPL0000075		75	0.345	0.060	45	0.34
11PVPL0000080		80	0.325	0.055	48	0.36
11PVPL0000090		90	0.290	0.050	53	0.40
11PVPL0000100		100	0.260	0.045	60	0.38
11PVPL0000110		110	0.240	0.040	66	0.41
11PVPL0000120		120	0.220	0.035	72	0.45
11PVPL0000125		125	0.220	0.035	75	0.47
11PVPL0000130		130	0.200	0.033	78	0.49
11PVPL0000140		140	0.185	0.030	84	0.52
11PVPL0000150		150	0.175	0.030	90	0.56
11PVPL0000160		160	0.165	0.030	96	0.60
11PVPL0000180		180	0.145	0.025	107	0.67
11PVPL0000200		200	0.130	0.022	120	0.72
11PVPL0000225		225	0.115	0.019	135	0.81
11PVPL0000250		250	0.105	0.018	150	0.90
11PVPL0000275		275	0.095	0.016	165	1.00
11PVPL0000300		300	0.090	0.015	180	1.08
11PVPL0000350		350	0.075	0.012	210	1.36
11PVPL0000400		400	0.065	0.011	240	1.50
11PVPL0000450		450	0.060	0.010	270	1.82
11PVPL0000500		500	0.050	0.009	300	2.02
