LIGHT POLYURETHANE HOSE (PUL) - 0.40
ONLINE CATALOGUE › HOSES › Dust and chip suction polyurethane hoses
Download sheet in pdf format
Code: PUL

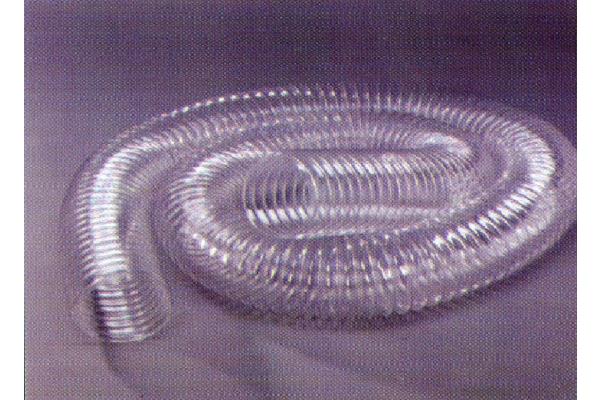

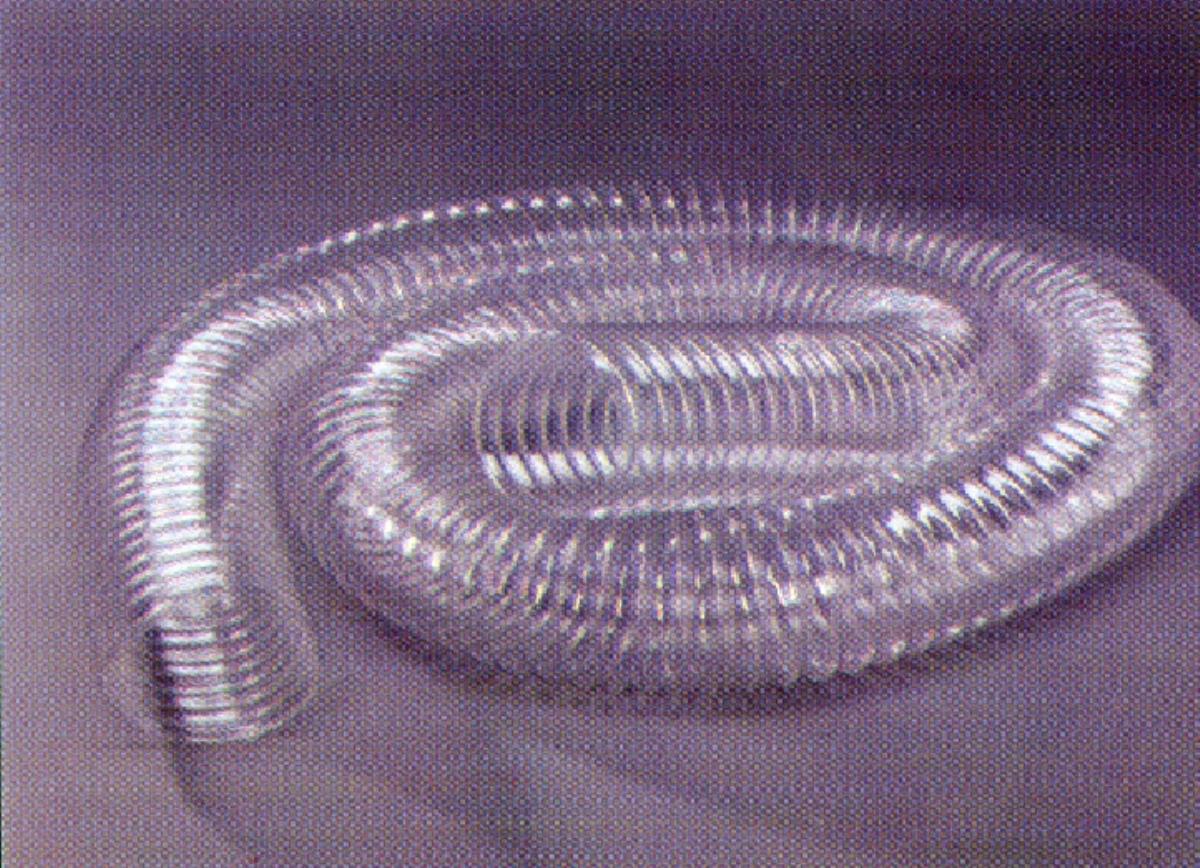

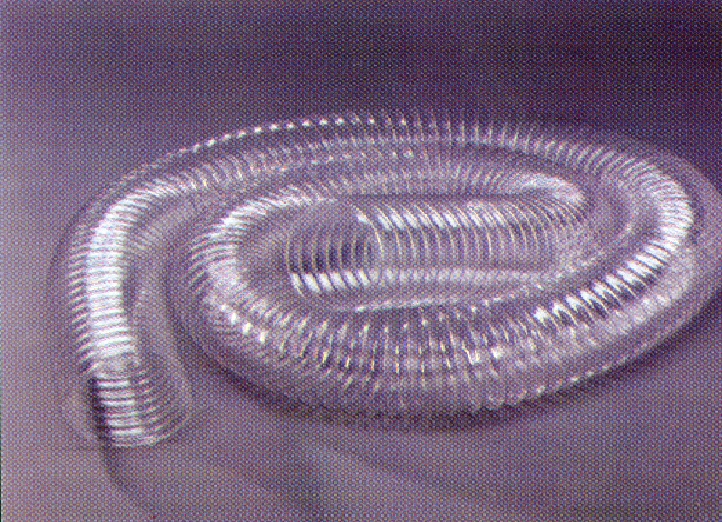

Very light and flexible polyurethane sheet tube, hardly flammable with incorporated harmonic steel spiral with silver coloured galvanic treatment.
Foil thickness: 0.40 mm
Color: transparent.
Standard sizes 10/20 meters, other sizes on request, packed in cardboard boxes
Operating temperature -40° +90° C, maximum temperature peak 125°C.
Axial compressibility: 8:1
Use: suction and delivery of air, fumes, dust, sawdust.
The following special versions are available:
- On request with incorporated harmonic steel spiral with "brown-copper" galvanic treatment.
- Antistatic (guaranteed for 1 year from production)
- Permanent antistatic (R=100 M Ohm)
- Self-extinguishing
- FOOD GRADE
- FOOD GRADE Antistatic (guaranteed 1 year from production)
- FOOD GRADE with AISI316 stainless steel spiral
Very light and flexible polyurethane sheet tube, hardly flammable with incorporated harmonic steel spiral with silver coloured galvanic treatment.
Foil thickness: 0.40 mm
Color: transparent.
Standard sizes 10/20 meters, other sizes on request, packed in cardboard boxes
Operating temperature -40° +90° C, maximum temperature peak 125°C.
Axial compressibility: 8:1
Use: suction and delivery of air, fumes, dust, sawdust.
The following special versions are available:
- On request with incorporated harmonic steel spiral with "brown-copper" galvanic treatment.
- Antistatic (guaranteed for 1 year from production)
- Permanent antistatic (R=100 M Ohm)
- Self-extinguishing
- FOOD GRADE
- FOOD GRADE Antistatic (guaranteed 1 year from production)
- FOOD GRADE with AISI316 stainless steel spiral
| Item | Oh mm | Operating pressure bar | Depression bar | Radius of curvature mm | weight g/m |
|---|---|---|---|---|---|
| 11PVPUL000060 | 60 | 0.35 | 0.15 | 42 | 260 |
| 11PVPUL000070 | 70 | 0.35 | 0.13 | 55 | 310 |
| 11PVPUL000080 | 80 | 0.25 | 0.10 | 60 | 350 |
| 11PVPUL000100 | 100 | 0.20 | 0.09 | 75 | 420 |
| 11PVPUL000120 | 120 | 0.18 | 0.07 | 90 | 560 |
| 11PVPUL000130 | 130 | 0.15 | 0.06 | 95 | 590 |
| 11PVPUL000150 | 150 | 0.10 | 0.05 | 110 | 780 |
| 11PVPUL000160 | 160 | 0.10 | 0.05 | 120 | 830 |
| 11PVPUL000180 | 180 | 0.08 | 0.04 | 130 | 880 |
| 11PVPUL000200 | 200 | 0.07 | 0.04 | 150 | 980 |
| 11PVPUL000250 | 250 | 0.04 | 0.03 | 180 | 1180 |
| 11PVPUL000300 | 300 | 0.03 | 0.02 | 220 | 1420 |
| 11PVPUL000400 | 400 | 0.02 | 0.02 | 280 | 2390 |
| 11PVPUL000450 | 450 | 0.01 | 0.01 | 320 | 2610 |
| 11PVPUL000500 | 500 | 0.01 | 0.01 | 360 | 3100 |
