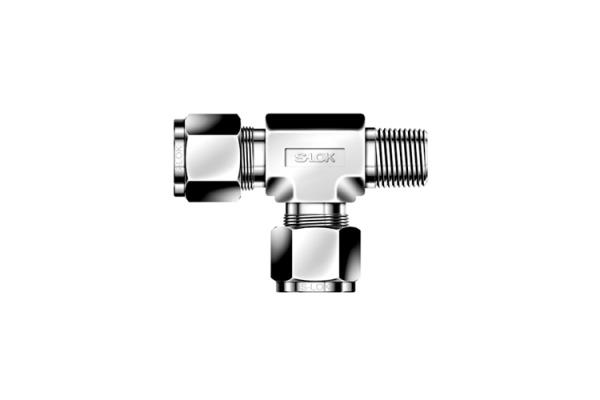

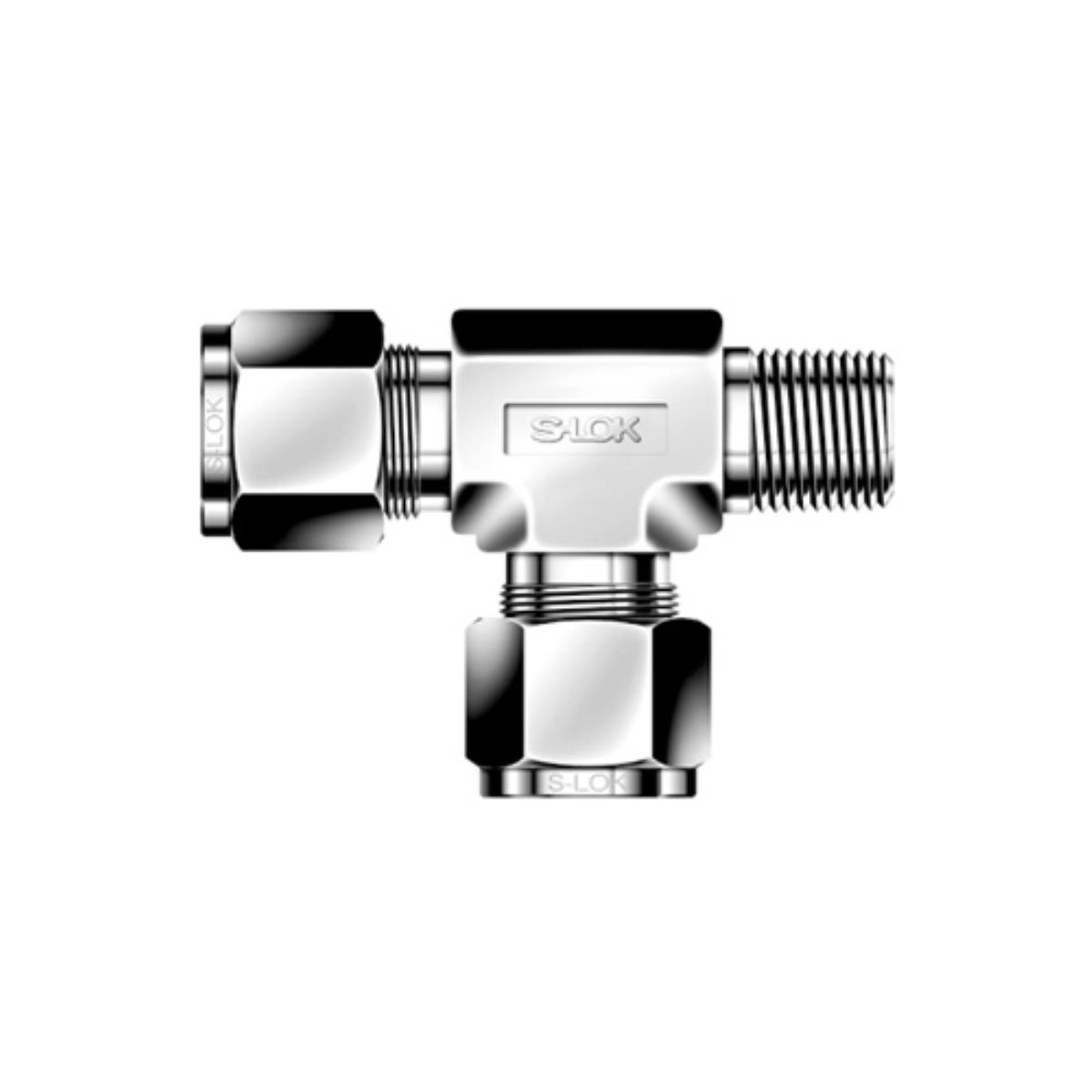

LOK STRM - T maschio laterale conico BSPT
CATALOGO ON-LINE › TUBI E RACCORDI PER IDROGENO E CELLE COMBUSTIBILI › CONNESSIONI INOX DI SICUREZZA › RACCORDI LOK DOPPIA OGIVA
Scarica scheda in formato pdf
Raccordo a T per tubo inox misure metriche con maschio laterale con filettatura conica ISO - BSPT. Confezione minima 10 pezzi.
|
Codice
|
diametro
Tubo |
filetto
|
foro interno
raccordo |
|
|
STRM-3M-2R
|
3
|
1/8"
|
2.4
|
|
|
STRM-3M-4R
|
3
|
1/4"
|
2.4
|
|
|
STRM-4M-2R
|
4
|
1/8"
|
2.4
|
|
|
STRM-4M-4R
|
4
|
1/4"
|
2.4 | |
|
STRM-6M-2R
|
6
|
1/8"
|
4.8
|
|
|
STRM-6M-4R
|
6
|
1/4"
|
4.8
|
|
|
STRM-6M-6R
|
6
|
3/8"
|
4.8
|
|
|
STRM-6M-8R
|
6
|
1/2"
|
4.8
|
|
|
STRM-8M-2R
|
8
|
1/8"
|
4.8
|
|
|
STRM-8-4R
|
8
|
1/4"
|
6.4
|
|
|
STRM-8-6R
|
8
|
3/8"
|
6.4
|
|
|
STRM-8M-6R
|
8
|
3/8"
|
6.4
|
|
|
STRM-8M-6R
|
8
|
3/8"
|
6.4
|
|
|
STRM-8M-6R
|
8
|
3/8"
|
6.4
|
|
|
STRM-8M-8R
|
8
|
1/2
|
6.4
|
|
|
STRM-10M-2R
|
10
|
1/8"
|
4.8
|
|
|
STRM-10M-2R
|
10
|
1/8"
|
4.8
|
|
|
STRM-10M-4R
|
10
|
1/4"
|
7.1
|
|
|
STRM-10M-6R
|
10
|
3/8"
|
7.9
|
|
|
STRM-10M-8R
|
10
|
1/2"
|
7.9
|
|
| STRM-12M-2R | 12 | 1/8" | 4.8 | |
| STRM-12M-4R | 12 | 1/4" | 7.1 | |
| STRM-12M-6R | 12 | 3/8" | 9.5 | |
| STRM-12M-8R | 12 | 1/2" | 9.5 | |
| STRM-12M-12R | 12 | 3/4" | 9.5 | |
|
STRM-16M-6R
|
16
|
3/8"
|
9.5
|
|
|
STRM-16M-8R
|
16
|
1/2"
|
11.9
|
|
|
STRM-16M-12R
|
16
|
3/4"
|
12.7
|
|
|
STRM-18M-8R
|
18
|
1/2"
|
11.9
|
|
|
STRM-18M-12R
|
18
|
3/4"
|
15.1
|
|
|
STRM-20M-8R
|
20
|
1/2"
|
11.9
|
|
|
STRM-20M-12R
|
20
|
3/4"
|
15.9
|
|
|
STRM-22M-12R
|
22
|
3/4" |
15.9
|
|
|
STRM-22M-16R
|
22
|
1"
|
18.3 | |
| STRM-25M-12R | 25 | 3/4" | 15.9 | |
| STRM-25M-16R | 25 | 1" | 21.80 |
