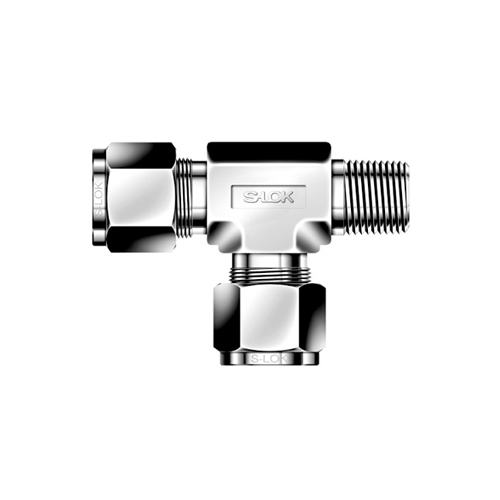

LOK STRM - BSPT conical lateral male tee
ONLINE CATALOGUE › PIPES AND FITTINGS FOR HYDROGEN AND FUEL CELLS › STAINLESS STEEL SAFETY CONNECTIONS › LOK DOUBLE OGIVE FITTINGS
Download sheet in pdf format
Tee fitting for metric stainless steel pipe with lateral male thread and ISO - BSPT conical thread. Minimum package 10 pieces.
Code | diameter Tube | fillet steak | internal hole fitting | |
STRM-3M-2R | 3 | 1/8" | 2.4 | |
STRM-3M-4R | 3 | 1/4" | 2.4 | |
STRM-4M-2R | 4 | 1/8" | 2.4 | |
STRM-4M-4R | 4 | 1/4" | 2.4 | |
STRM-6M-2R | 6 | 1/8" | 4.8 | |
STRM-6M-4R | 6 | 1/4" | 4.8 | |
STRM-6M-6R | 6 | 3/8" | 4.8 | |
STRM-6M-8R | 6 | 1/2" | 4.8 | |
STRM-8M-2R | 8 | 1/8" | 4.8 | |
STRM-8-4R | 8 | 1/4" | 6.4 | |
STRM-8-6R | 8 | 3/8" | 6.4 | |
STRM-8M-6R | 8 | 3/8" | 6.4 | |
STRM-8M-6R | 8 | 3/8" | 6.4 | |
STRM-8M-6R | 8 | 3/8" | 6.4 | |
STRM-8M-8R | 8 | 1/2 | 6.4 | |
STRM-10M-2R | 10 | 1/8" | 4.8 | |
STRM-10M-2R | 10 | 1/8" | 4.8 | |
STRM-10M-4R | 10 | 1/4" | 7.1 | |
STRM-10M-6R | 10 | 3/8" | 7.9 | |
STRM-10M-8R | 10 | 1/2" | 7.9 | |
| STRM-12M-2R | 12 | 1/8" | 4.8 | |
| STRM-12M-4R | 12 | 1/4" | 7.1 | |
| STRM-12M-6R | 12 | 3/8" | 9.5 | |
| STRM-12M-8R | 12 | 1/2" | 9.5 | |
| STRM-12M-12R | 12 | 3/4" | 9.5 | |
STRM-16M-6R | 16 | 3/8" | 9.5 | |
STRM-16M-8R | 16 | 1/2" | 11.9 | |
STRM-16M-12R | 16 | 3/4" | 12.7 | |
STRM-18M-8R | 18 | 1/2" | 11.9 | |
STRM-18M-12R | 18 | 3/4" | 15.1 | |
STRM-20M-8R | 20 | 1/2" | 11.9 | |
STRM-20M-12R | 20 | 3/4" | 15.9 | |
STRM-22M-12R | 22 | 3/4" | 15.9 | |
STRM-22M-16R | 22 | 1" | 18.3 | |
| STRM-25M-12R | 25 | 3/4" | 15.9 | |
| STRM-25M-16R | 25 | 1" | 9.80pm |
