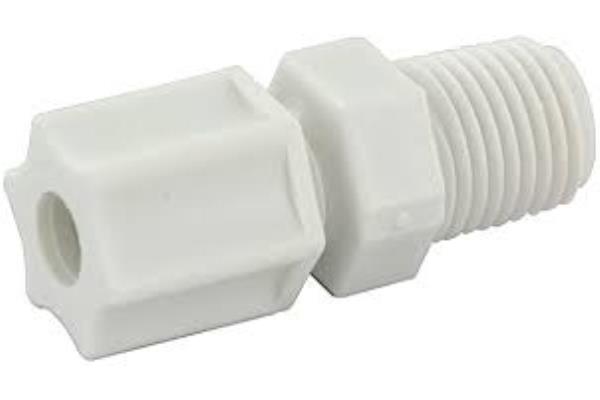

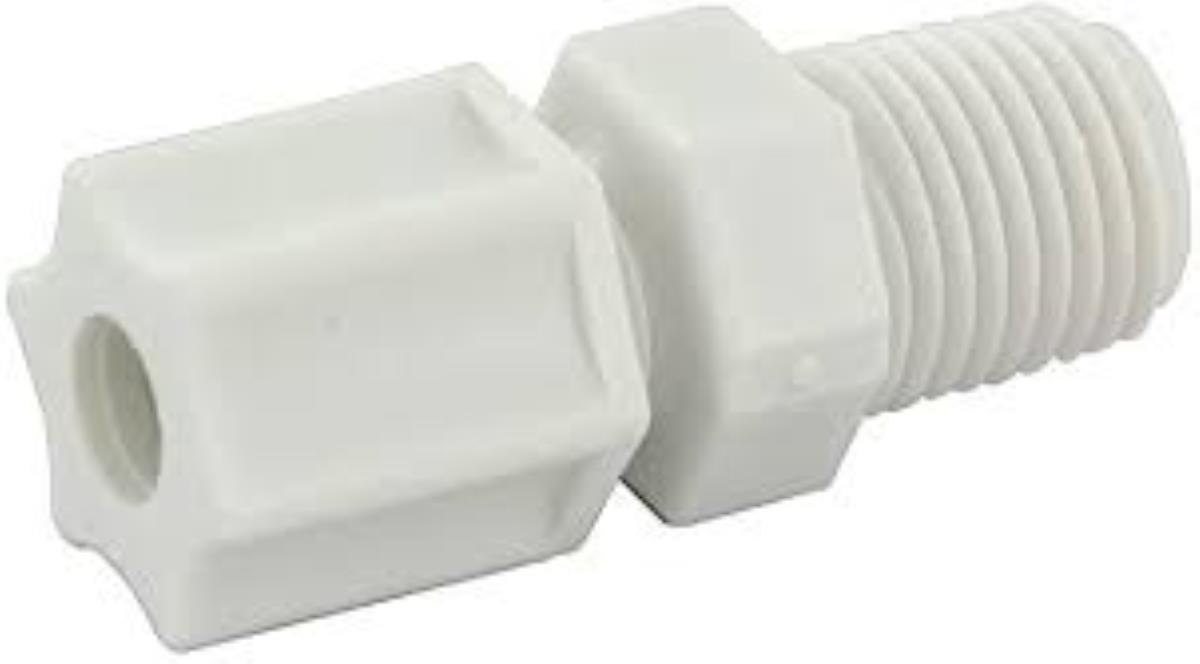

RACCORDO JACO DIRITTO MASCHIO
CATALOGO ON-LINE › RACCORDI PER L'INDUSTRIA CHIMICA E ALIMENTARE › RACCORDI JACO
Scarica scheda in formato pdf
| VERSIONE IN POLIPROPILENE |
DIAMETRO ESTERNO TUBO IN POLLICI |
FILETTO NPT IN POLLICI |
LUNGHEZZA RACCORDO mm |
ESAGONO CHIAVE mm |
| 39JACO_PP_DM_02_02 | 1/8" | 1/8" | 31 | 11 |
| 39JACO_PP_DM_04_02 | 1/4" | 1/8" | 37 | 16 |
| 39JACO_PP_DM_04_04 | 1/4" | 1/4" | 42 | 16 |
| 39JACO_PP_DM_04_06 | 1/4" | 3/8" | 43 | 21 |
| 39JACO_PP_DM_05_02 | 5/16" | 1/8" | 38 | 18 |
| 39JACO_PP_DM_05_04 | 5/16" | 1/4" | 45 | 18 |
| 39JACO_PP_DM_06_02 | 3/8" | 1/8" | 41 | 21 |
| 39JACO_PP_DM_06_04 | 3/8" | 1/4" | 45 | 21 |
| 39JACO_PP_DM_06_06 | 3/8" | 3/8" | 48 | 21 |
| 39JACO_PP_DM_06_08 | 3/8" | 1/2" | 52 | 24 |
| 39JACO_PP_DM_08_02 | 1/2" | 1/8" | 47 | 24 |
| 39JACO_PP_DM_08_04 | 1/2" | 1/4" | 51 | 24 |
| 39JACO_PP_DM_08_06 | 1/2" | 3/8" | 52 | 24 |
| 39JACO_PP_DM_08_08 | 1/2" | 1/2" | 56 | 24 |
| 39JACO_PP_DM_10_06 | 5/8" | 3/8" | 53 | 28 |
| 39JACO_PP_DM_10_08 | 5/8" | 1/2" | 59 | 28 |
| 39JACO_PP_DM_12_08 | 3/4" | 1/2" | 63 | 34 |
| 39JACO_PP_DM_12_12 | 3/4" | 3/4" | 66 | 34 |
| 39JACO_PP_DM_14_12 | 7/8" | 3/4" |
| VERSIONE IN KYNAR - PVDF |
DIAMETRO ESTERNO TUBO IN POLLICI |
FILETTO NPT IN POLLICI |
LUNGHEZZA RACCORDO mm |
ESAGONO CHIAVE mm |
| 39JACO_KY_DM_02_02 | 1/8" | 1/8" | 31 | 11 |
| 39JACO_KY_DM_04_02 | 1/4" | 1/8" | 37 | 16 |
| 39JACO_KY_DM_04_04 | 1/4" | 1/4" | 42 | 16 |
| 39JACO_KY_DM_04_06 | 1/4" | 3/8" | 43 | 21 |
| 39JACO_KY_DM_05_02 | 5/16" | 1/8" | 38 | 18 |
| 39JACO_KY_DM_05_04 | 5/16" | 1/4" | 45 | 18 |
| 39JACO_KY_DM_06_02 | 3/8" | 1/8" | 41 | 21 |
| 39JACO_KY_DM_06_04 | 3/8" | 1/4" | 45 | 21 |
| 39JACO_KY_DM_06_06 | 3/8" | 3/8" | 48 | 21 |
| 39JACO_KY_DM_06_08 | 3/8" | 1/2" | 52 | 24 |
| 39JACO_KY_DM_08_02 | 1/2" | 1/8" | 47 | 24 |
| 39JACO_KY_DM_08_04 | 1/2" | 1/4" | 51 | 24 |
| 39JACO_KY_DM_08_06 | 1/2" | 3/8" | 52 | 24 |
| 39JACO_KY_DM_08_08 | 1/2" | 1/2" | 56 | 24 |
| 39JACO_KY_DM_10_06 | 5/8" | 3/8" | 53 | 28 |
| 39JACO_KY_DM_10_08 | 5/8" | 1/2" | 59 | 28 |
| 39JACO_KY_DM_12_08 | 3/4" | 1/2" | 63 | 34 |
| 39JACO_KY_DM_12_12 | 3/4" | 3/4" | 66 | 34 |
| 39JACO_KY_DM_14_12 | 7/8" | 3/4" |
| VERSIONE IN NYLON |
DIAMETRO ESTERNO TUBO IN POLLICI |
FILETTO NPT IN POLLICI |
LUNGHEZZA RACCORDO mm |
ESAGONO CHIAVE mm |
| 39JACO_NY_DM_02_02 | 1/8" | 1/8" | 31 | 11 |
| 39JACO_NY_DM_04_02 | 1/4" | 1/8" | 37 | 16 |
| 39JACO_NY_DM_04_04 | 1/4" | 1/4" | 42 | 16 |
| 39JACO_NY_DM_04_06 | 1/4" | 3/8" | 43 | 21 |
| 39JACO_NY_DM_05_02 | 5/16" | 1/8" | 38 | 18 |
| 39JACO_NY_DM_05_04 | 5/16" | 1/4" | 45 | 18 |
| 39JACO_NY_DM_06_02 | 3/8" | 1/8" | 41 | 21 |
| 39JACO_NY_DM_06_04 | 3/8" | 1/4" | 45 | 21 |
| 39JACO_NY_DM_06_06 | 3/8" | 3/8" | 48 | 21 |
| 39JACO_NY_DM_06_08 | 3/8" | 1/2" | 52 | 24 |
| 39JACO_NY_DM_08_02 | 1/2" | 1/8" | 47 | 24 |
| 39JACO_NY_DM_08_04 | 1/2" | 1/4" | 51 | 24 |
| 39JACO_NY_DM_08_06 | 1/2" | 3/8" | 52 | 24 |
| 39JACO_NY_DM_08_08 | 1/2" | 1/2" | 56 | 24 |
| 39JACO_NY_DM_10_06 | 5/8" | 3/8" | 53 | 28 |
| 39JACO_NY_DM_10_08 | 5/8" | 1/2" | 59 | 28 |
| 39JACO_NY_DM_12_08 | 3/4" | 1/2" | 63 | 34 |
| 39JACO_NY_DM_12_12 | 3/4" | 3/4" | 66 | 34 |
| 39JACO_NY_DM_14_12 | 7/8" | 3/4" |
| VERSIONE IN POLIPROPILENE |
DIAMETRO TUBO METRICO mm |
FILETTO NPT IN POLLICI |
LUNGHEZZA RACCORDO mm |
ESAGONO CHIAVE mm |
| 39JACO_PP_DM_M03_02 | 3 | 1/8" | 31 | 11 |
| 39JACO_PP_DM_M06_02 | 6 | 1/8" | 37 | 16 |
| 39JACO_PP_DM_M06_04 | 6 | 1/4" | 42 | 16 |
| 39JACO_PP_DM_M06_06 | 6 | 3/8" | 43 | 21 |
| 39JACO_PP_DM_M08_02 | 8 | 1/8" | 38 | 18 |
| 39JACO_PP_DM_M08_04 | 8 | 1/4" | 45 | 18 |
| 39JACO_PP_DM_M10_02 | 10 | 1/8" | 41 | 21 |
| 39JACO_PP_DM_M10_04 | 10 | 1/4" | 45 | 21 |
| 39JACO_PP_DM_M10_06 | 10 | 3/8" | 48 | 21 |
| 39JACO_PP_DM_M10_08 | 10 | 1/2" | 52 | 24 |
| 39JACO_PP_DM_M12_02 | 12 | 1/8" | 47 | 24 |
| 39JACO_PP_DM_M12_04 | 12 | 1/4" | 51 | 24 |
| 39JACO_PP_DM_M12_06 | 12 | 3/8" | 52 | 24 |
| 39JACO_PP_DM_M12_08 | 12 | 1/2" | 56 | 24 |
| 39JACO_PP_DM_M16_06 | 16 | 3/8" | 53 | 28 |
| 39JACO_PP_DM_M16_08 | 16 | 1/2" | 59 | 28 |
| 39JACO_PP_DM_M19_08 | 19 | 1/2" | 63 | 34 |
| 39JACO_PP_DM_M19_12 | 19 | 3/4" | 66 | 34 |
| 39JACO_PP_DM_M22_12 | 22 | 3/4" |
| VERSIONE IN KYNAR - PVDF |
DIAMETRO TUBO METRICO mm |
FILETTO NPT IN POLLICI |
LUNGHEZZA RACCORDO mm |
ESAGONO CHIAVE mm |
| 39JACO_KY_DM_M03_02 | 3 | 1/8" | 31 | 11 |
| 39JACO_KY_DM_M06_02 | 6 | 1/8" | 37 | 16 |
| 39JACO_KY_DM_M06_04 | 6 | 1/4" | 42 | 16 |
| 39JACO_KY_DM_M06_06 | 6 | 3/8" | 43 | 21 |
| 39JACO_KY_DM_M08_02 | 8 | 1/8" | 38 | 18 |
| 39JACO_KY_DM_M08_04 | 8 | 1/4" | 45 | 18 |
| 39JACO_KY_DM_M10_02 | 10 | 1/8" | 41 | 21 |
| 39JACO_KY_DM_M10_04 | 10 | 1/4" | 45 | 21 |
| 39JACO_KY_DM_M10_06 | 10 | 3/8" | 48 | 21 |
| 39JACO_KY_DM_M10_08 | 10 | 1/2" | 52 | 24 |
| 39JACO_KY_DM_M12_02 | 12 | 1/8" | 47 | 24 |
| 39JACO_KY_DM_M12_04 | 12 | 1/4" | 51 | 24 |
| 39JACO_KY_DM_M12_06 | 12 | 3/8" | 52 | 24 |
| 39JACO_KY_DM_M12_08 | 12 | 1/2" | 56 | 24 |
| 39JACO_KY_DM_M16_06 | 16 | 3/8" | 53 | 28 |
| 39JACO_KY_DM_M16_08 | 16 | 1/2" | 59 | 28 |
| 39JACO_KY_DM_M19_08 | 19 | 1/2" | 63 | 34 |
| 39JACO_KY_DM_M19_12 | 19 | 3/4" | 66 | 34 |
| 39JACO_KY_DM_M22_12 | 22 | 3/4" |
| VERSIONE IN NYLON |
DIAMETRO TUBO METRICO mm |
FILETTO NPT IN POLLICI |
LUNGHEZZA RACCORDO mm |
ESAGONO CHIAVE mm |
| 39JACO_NY_DM_M03_02 | 3 | 1/8" | 31 | 11 |
| 39JACO_NY_DM_M06_02 | 6 | 1/8" | 37 | 16 |
| 39JACO_NY_DM_M06_04 | 6 | 1/4" | 42 | 16 |
| 39JACO_NY_DM_M06_06 | 6 | 3/8" | 43 | 21 |
| 39JACO_NY_DM_M08_02 | 8 | 1/8" | 38 | 18 |
| 39JACO_NY_DM_M08_04 | 8 | 1/4" | 45 | 18 |
| 39JACO_NY_DM_M10_02 | 10 | 1/8" | 41 | 21 |
| 39JACO_NY_DM_M10_04 | 10 | 1/4" | 45 | 21 |
| 39JACO_NY_DM_M10_06 | 10 | 3/8" | 48 | 21 |
| 39JACO_NY_DM_M10_08 | 10 | 1/2" | 52 | 24 |
| 39JACO_NY_DM_M12_02 | 12 | 1/8" | 47 | 24 |
| 39JACO_NY_DM_M12_04 | 12 | 1/4" | 51 | 24 |
| 39JACO_NY_DM_M12_06 | 12 | 3/8" | 52 | 24 |
| 39JACO_NY_DM_M12_08 | 12 | 1/2" | 56 | 24 |
| 39JACO_NY_DM_M16_06 | 16 | 3/8" | 53 | 28 |
| 39JACO_NY_DM_M16_08 | 16 | 1/2" | 59 | 28 |
| 39JACO_NY_DM_M19_08 | 19 | 1/2" | 63 | 34 |
| 39JACO_NY_DM_M19_12 | 19 | 3/4" | 66 | 34 |
| 39JACO_NY_DM_M22_12 | 22 | 3/4" |
JACO MALE STRAIGHT FITTING
