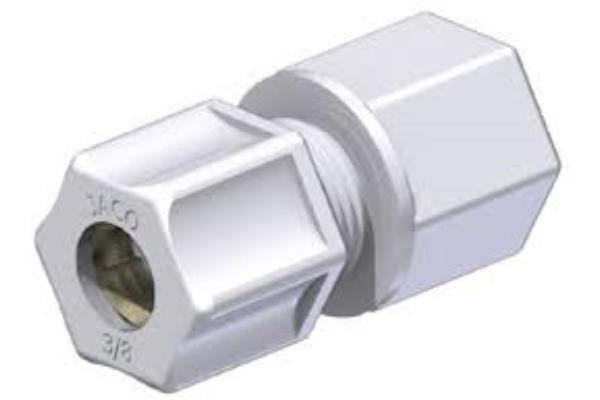

RACCORDO JACO DIRITTO FEMMINA



Scarica scheda in formato pdf

VERSIONE
IN

POLIPROPILENE
DIAMETRO
ESTERNO

TUBO IN POLLICI
FILETTO
NPT IN
POLLICI
LUNGHEZZA
RACCORDO

mm
ESAGONO
CHIAVE
mm
39JACO_PP_DF_04_02 1/4" 1/8" 35 28
39JACO_PP_DF_04_04 1/4" 1/4" 39 21
39JACO_PP_DF_05_04 5/16" 1/4" 44 20
39JACO_PP_DF_06_04 3/8" 1/4" 43 20
39JACO_PP_DF_06_06 3/8" 3/8" 43 24
39JACO_PP_DF_06_08 3/8" 1/2" 44 28
39JACO_PP_DF_08_06 1/2" 3/8" 49 24
39JACO_PP_DF_08_08 1/2" 1/2" 50 28
39JACO_PP_DF_10_08 5/8" 1/2" 54 28




VERSIONE
IN

POLIPROPILENE
DIAMETRO
TUBO METRICO
mm
FILETTO
NPT
IN POLLICI
LUNGHEZZA
RACCORDO

mm
ESAGONO
CHIAVE
mm
39JACO_PP_DF_M06_02 6 1/8" 35 28
39JACO_PP_DF_M06_04 6 1/4" 39 21
39JACO_PP_DF_M08_04 8 1/4" 44 20
39JACO_PP_DF_M10_04 10 1/4" 43 20
39JACO_PP_DF_M10_06 10 3/8" 43 24
39JACO_PP_DF_M10_08 10 1/2" 44 28
39JACO_PP_DF_M12_06 12 3/8" 49 24
39JACO_PP_DF_M12_08 12 1/2" 50 28
39JACO_PP_DF_M16_08 16 1/2" 54 28







VERSIONE
IN

PVDF-KYNAR
DIAMETRO
ESTERNO

TUBO IN POLLICI
FILETTO
NPT IN
POLLICI
LUNGHEZZA
RACCORDO

mm
ESAGONO
CHIAVE
mm
39JACO_KY_DF_04_02 1/4" 1/8" 35 28
39JACO_KY_DF_04_04 1/4" 1/4" 39 21
39JACO_KY_DF_05_04 5/16" 1/4" 44 20
39JACO_KY_DF_06_04 3/8" 1/4" 43 20
39JACO_KY_DF_06_06 3/8" 3/8" 43 24
39JACO_KY_DF_06_08 3/8" 1/2" 44 28
39JACO_KY_DF_08_06 1/2" 3/8" 49 24
39JACO_KY_DF_08_08 1/2" 1/2" 50 28
39JACO_KY_DF_10_08 5/8" 1/2" 54 28





VERSIONE
IN
PVDF-KYNAR


DIAMETRO
TUBO METRICO
mm
FILETTO
NPT
IN POLLICI
LUNGHEZZA
RACCORDO

mm
ESAGONO
CHIAVE
mm
39JACO_KY_DF_M06_02 6 1/8" 35 28
39JACO_KY_DF_M06_04 6 1/4" 39 21
39JACO_KY_DF_M08_04 8 1/4" 44 20
39JACO_KY_DF_M10_04 10 1/4" 43 20
39JACO_KY_DF_M10_06 10 3/8" 43 24
39JACO_KY_DF_M10_08 10 1/2" 44 28
39JACO_KY_DF_M12_06 12 3/8" 49 24
39JACO_KY_DF_M12_08 12 1/2" 50 28
39JACO_KY_DF_M16_08 16 1/2" 54 28








VERSIONE
IN

NYLON
DIAMETRO
ESTERNO

TUBO IN POLLICI
FILETTO
NPT IN
POLLICI
LUNGHEZZA
RACCORDO

mm
ESAGONO
CHIAVE
mm
39JACO_NY_DF_04_02 1/4" 1/8" 35 28
39JACO_NY_DF_04_04 1/4" 1/4" 39 21
39JACO_NY_DF_05_04 5/16" 1/4" 44 20
39JACO_NY_DF_06_04 3/8" 1/4" 43 20
39JACO_NY_DF_06_06 3/8" 3/8" 43 24
39JACO_NY_DF_06_08 3/8" 1/2" 44 28
39JACO_NY_DF_08_06 1/2" 3/8" 49 24
39JACO_NY_DF_08_08 1/2" 1/2" 50 28
39JACO_NY_DF_10_08 5/8" 1/2" 54 28






VERSIONE
IN

NYLON
DIAMETRO
TUBO METRICO
mm
FILETTO
NPT
IN POLLICI
LUNGHEZZA
RACCORDO

mm
ESAGONO
CHIAVE
mm
39JACO_NY_DF_M06_02 6 1/8" 35 28
39JACO_NY_DF_M06_04 6 1/4" 39 21
39JACO_NY_DF_M08_04 8 1/4" 44 20
39JACO_NY_DF_M10_04 10 1/4" 43 20
39JACO_NY_DF_M10_06 10 3/8" 43 24
39JACO_NY_DF_M10_08 10 1/2" 44 28
39JACO_NY_DF_M12_06 12 3/8" 49 24
39JACO_NY_DF_M12_08 12 1/2" 50 28
39JACO_NY_DF_M16_08 16 1/2" 54 28





JACO STRAIGHT FEMALE FITTING JACO STRAIGHT FEMALE FITTING
