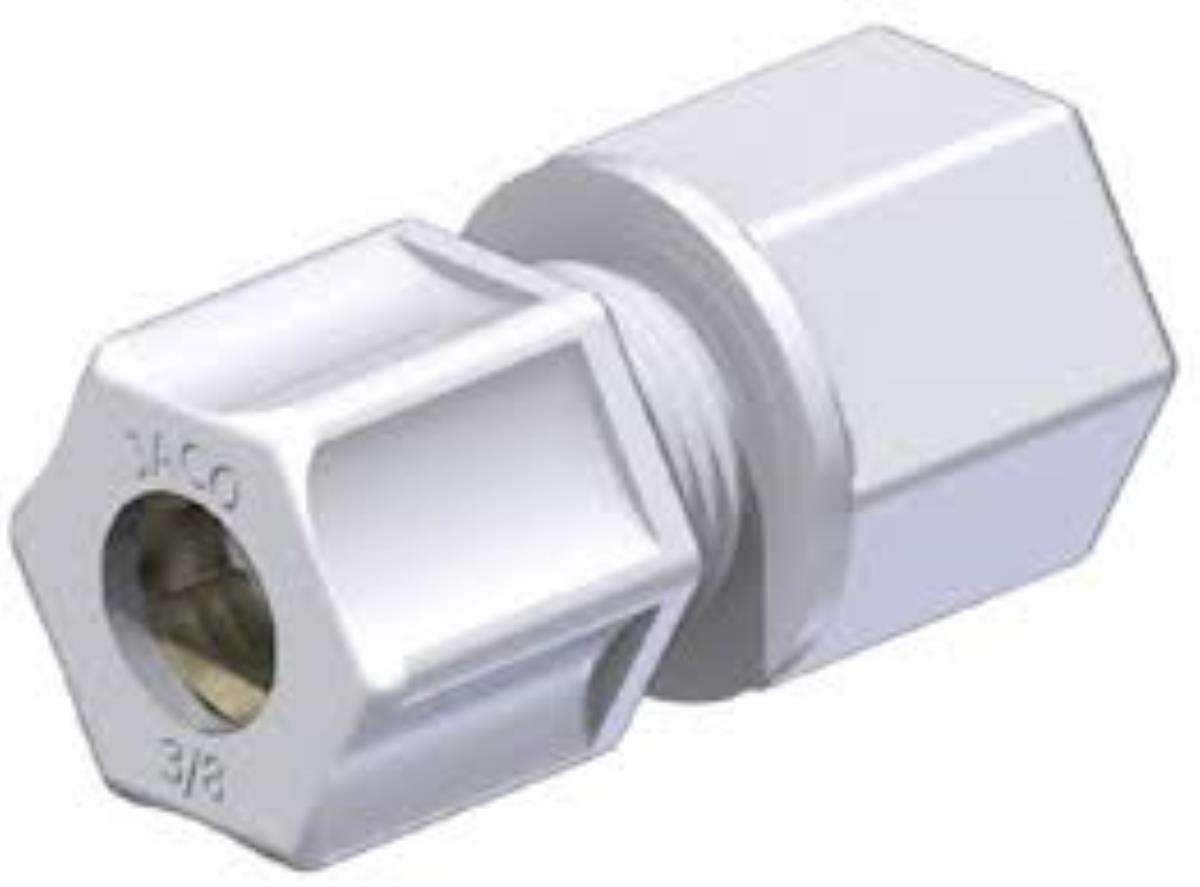

JACO STRAIGHT FEMALE FITTING
ONLINE CATALOGUE › FITTINGS FOR THE CHEMICAL AND FOOD INDUSTRY › JACO FITTINGS
Download sheet in pdf format
| VERSION IN POLYPROPYLENE | DIAMETER EXTERNAL INCH PIPE | FILLET STEAK NPT IN INCHES | LENGTH FITTING mm | HEXAGON KEY mm |
| 39JACO_PP_DF_04_02 | 1/4" | 1/8" | 35 | 28 |
| 39JACO_PP_DF_04_04 | 1/4" | 1/4" | 39 | 21 |
| 39JACO_PP_DF_05_04 | 5/16" | 1/4" | 44 | 20 |
| 39JACO_PP_DF_06_04 | 3/8" | 1/4" | 43 | 20 |
| 39JACO_PP_DF_06_06 | 3/8" | 3/8" | 43 | 24 |
| 39JACO_PP_DF_06_08 | 3/8" | 1/2" | 44 | 28 |
| 39JACO_PP_DF_08_06 | 1/2" | 3/8" | 49 | 24 |
| 39JACO_PP_DF_08_08 | 1/2" | 1/2" | 50 | 28 |
| 39JACO_PP_DF_10_08 | 5/8" | 1/2" | 54 | 28 |
| VERSION IN POLYPROPYLENE | DIAMETER METRIC TUBE mm | FILLET STEAK NPT IN INCHES | LENGTH FITTING mm | HEXAGON KEY mm |
| 39JACO_PP_DF_M06_02 | 6 | 1/8" | 35 | 28 |
| 39JACO_PP_DF_M06_04 | 6 | 1/4" | 39 | 21 |
| 39JACO_PP_DF_M08_04 | 8 | 1/4" | 44 | 20 |
| 39JACO_PP_DF_M10_04 | 10 | 1/4" | 43 | 20 |
| 39JACO_PP_DF_M10_06 | 10 | 3/8" | 43 | 24 |
| 39JACO_PP_DF_M10_08 | 10 | 1/2" | 44 | 28 |
| 39JACO_PP_DF_M12_06 | 12 | 3/8" | 49 | 24 |
| 39JACO_PP_DF_M12_08 | 12 | 1/2" | 50 | 28 |
| 39JACO_PP_DF_M16_08 | 16 | 1/2" | 54 | 28 |
| VERSION IN PVDF-KYNAR | DIAMETER EXTERNAL INCH PIPE | FILLET STEAK NPT IN INCHES | LENGTH FITTING mm | HEXAGON KEY mm |
| 39JACO_KY_DF_04_02 | 1/4" | 1/8" | 35 | 28 |
| 39JACO_KY_DF_04_04 | 1/4" | 1/4" | 39 | 21 |
| 39JACO_KY_DF_05_04 | 5/16" | 1/4" | 44 | 20 |
| 39JACO_KY_DF_06_04 | 3/8" | 1/4" | 43 | 20 |
| 39JACO_KY_DF_06_06 | 3/8" | 3/8" | 43 | 24 |
| 39JACO_KY_DF_06_08 | 3/8" | 1/2" | 44 | 28 |
| 39JACO_KY_DF_08_06 | 1/2" | 3/8" | 49 | 24 |
| 39JACO_KY_DF_08_08 | 1/2" | 1/2" | 50 | 28 |
| 39JACO_KY_DF_10_08 | 5/8" | 1/2" | 54 | 28 |
| VERSION IN PVDF-KYNAR | DIAMETER METRIC TUBE mm | FILLET STEAK NPT IN INCHES | LENGTH FITTING mm | HEXAGON KEY mm |
| 39JACO_KY_DF_M06_02 | 6 | 1/8" | 35 | 28 |
| 39JACO_KY_DF_M06_04 | 6 | 1/4" | 39 | 21 |
| 39JACO_KY_DF_M08_04 | 8 | 1/4" | 44 | 20 |
| 39JACO_KY_DF_M10_04 | 10 | 1/4" | 43 | 20 |
| 39JACO_KY_DF_M10_06 | 10 | 3/8" | 43 | 24 |
| 39JACO_KY_DF_M10_08 | 10 | 1/2" | 44 | 28 |
| 39JACO_KY_DF_M12_06 | 12 | 3/8" | 49 | 24 |
| 39JACO_KY_DF_M12_08 | 12 | 1/2" | 50 | 28 |
| 39JACO_KY_DF_M16_08 | 16 | 1/2" | 54 | 28 |
| VERSION IN NYLON | DIAMETER EXTERNAL INCH PIPE | FILLET STEAK NPT IN INCHES | LENGTH FITTING mm | HEXAGON KEY mm |
| 39JACO_NY_DF_04_02 | 1/4" | 1/8" | 35 | 28 |
| 39JACO_NY_DF_04_04 | 1/4" | 1/4" | 39 | 21 |
| 39JACO_NY_DF_05_04 | 5/16" | 1/4" | 44 | 20 |
| 39JACO_NY_DF_06_04 | 3/8" | 1/4" | 43 | 20 |
| 39JACO_NY_DF_06_06 | 3/8" | 3/8" | 43 | 24 |
| 39JACO_NY_DF_06_08 | 3/8" | 1/2" | 44 | 28 |
| 39JACO_NY_DF_08_06 | 1/2" | 3/8" | 49 | 24 |
| 39JACO_NY_DF_08_08 | 1/2" | 1/2" | 50 | 28 |
| 39JACO_NY_DF_10_08 | 5/8" | 1/2" | 54 | 28 |
| VERSION IN NYLON | DIAMETER METRIC TUBE mm | FILLET STEAK NPT IN INCHES | LENGTH FITTING mm | HEXAGON KEY mm |
| 39JACO_NY_DF_M06_02 | 6 | 1/8" | 35 | 28 |
| 39JACO_NY_DF_M06_04 | 6 | 1/4" | 39 | 21 |
| 39JACO_NY_DF_M08_04 | 8 | 1/4" | 44 | 20 |
| 39JACO_NY_DF_M10_04 | 10 | 1/4" | 43 | 20 |
| 39JACO_NY_DF_M10_06 | 10 | 3/8" | 43 | 24 |
| 39JACO_NY_DF_M10_08 | 10 | 1/2" | 44 | 28 |
| 39JACO_NY_DF_M12_06 | 12 | 3/8" | 49 | 24 |
| 39JACO_NY_DF_M12_08 | 12 | 1/2" | 50 | 28 |
| 39JACO_NY_DF_M16_08 | 16 | 1/2" | 54 | 28 |
