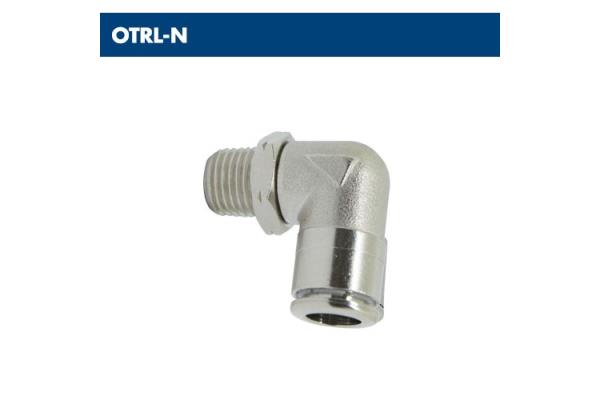

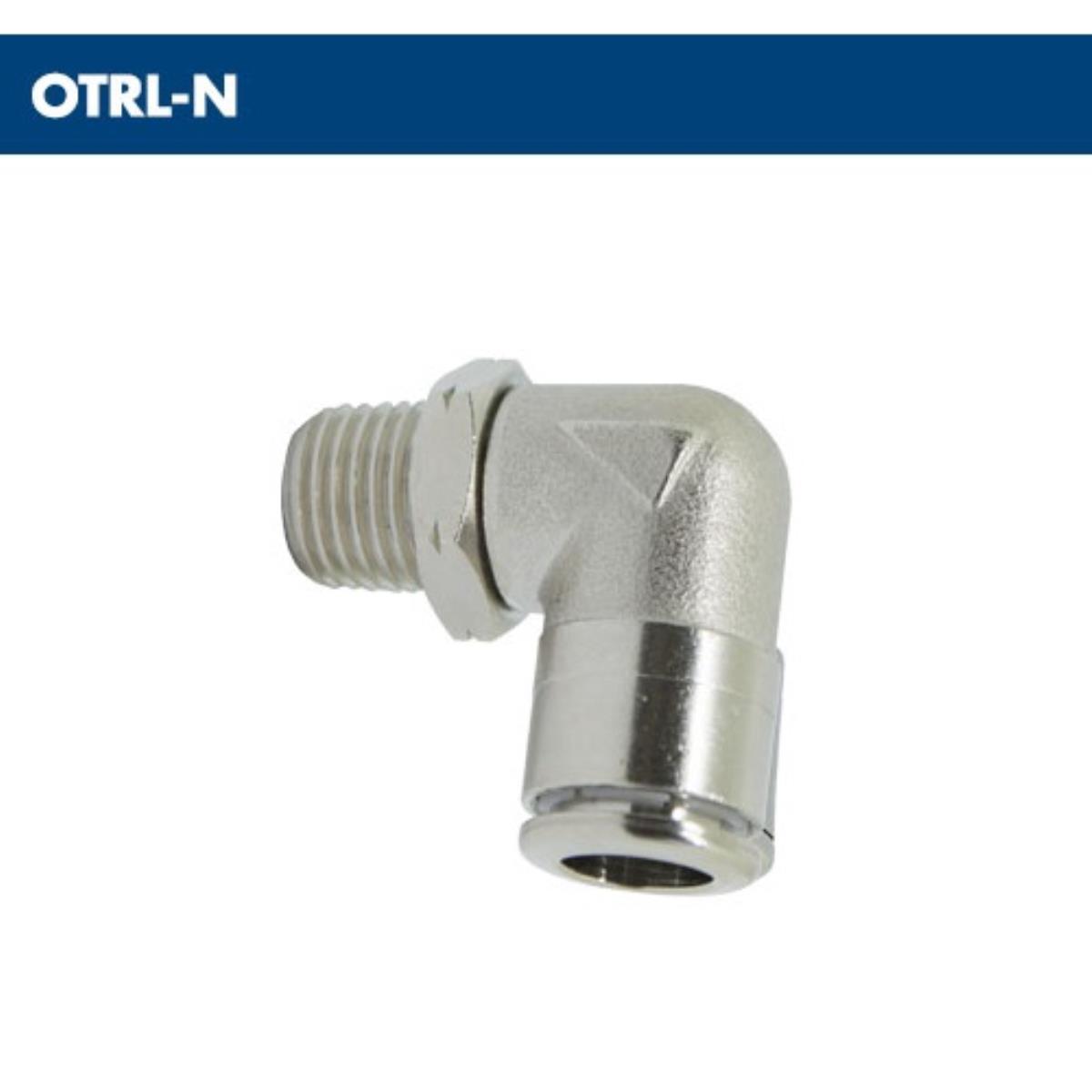

GOMITO MASCHIO GIREVOLE NPT & UNF
CATALOGO ON-LINE › RACCORDI PER ARIA COMPRESSA › RACCORDI E CONNESSIONI PER IMPIANTI PNEUMATICI › Serie 100 RACCORDI PNEUMATICI RAPIDI IN OTTONE NICHELATO SPINTORE METALLICO
Scarica scheda in formato pdf
Codice: art.100_11 OTRL-N
art. 100_9 OTRL-R
Fluidi Compatibili: Aria · Aria Compressa · Vuoto · Pressione Esercizio: 16 Bar
Confezione standard 10 pezzi.
art. 100_9 OTRL-R
GOMITO MASCHIO GIREVOLE NPT & UNF NICHELATO PER TUBO METRICO
Temperatura Esercizio: da -20 ºC a 80 ºC
Materiali Costruttivi: Ottone nichelato UNI EN 12164 CW 614N e UNI EN 12165 CW 617N
Tubi Utilizzabili: Tubo Poliammide · Tubo Polietilene · Tubo PoliuretanoTipi Oring: NBR senza silicone Materiali Costruttivi: Ottone nichelato UNI EN 12164 CW 614N e UNI EN 12165 CW 617N
Fluidi Compatibili: Aria · Aria Compressa · Vuoto · Pressione Esercizio: 16 Bar
Confezione standard 10 pezzi.
| CODICE | Tubo | filetto | Lunghezza | Chiave | PESO |
| mm | NPT | mm | CH | g | |
| OTRL532UF1032 | 5/32" | UNF 10/32" | 18,0 | 3/8" | 11,0 |
| OTRL532N01 | 5/32" | N 1/8" | 19,5 | 9/16" | 20,5 |
| OTRL532N02 | 5/32" | N 1/4" | 19,5 | 9/16" | 24,0 |
| OTRL1-4N01 | 1/4" | N 1/8" | 21,5 | 9/16" | 23,0 |
| OTRL1-4N02 | 1/4" | N 1/4" | 21,5 | 9/16" | 26,0 |
| OTRL1-6N01 | 5/16" | N 1/8" | 23,5 | 9/16" | 23,0 |
| OTRL1-6N02 | 5/16" | N 1/4" | 23,5 | 9/16" | 24,0 |
| OTRL1-6N03 | 5/16" | N 3/8" | 23,5 | 11/16" | 34,0 |
| OTRL38N01 | 3/8" | N 1/8" | 26,0 | 11/16" | 40,0 |
| OTRL38N02 | 3/8" | N 1/4" | 26,0 | 11/16" | 43,0 |
| OTRL38N03 | 3/8" | N 3/8" | 26,0 | 11/16" | 47,0 |
| OTRL38N04 | 3/8" | N 1/2" | 26,0 | 7/8" | 60,0 |
| OTRL1-2N02 | 1/2" | N 1/4" | 31,0 | 7/8" | 58,0 |
| OTRL1-2N03 | 1/2" | N 3/8" | 31,0 | 7/8" | 61,0 |
| OTRL1-2N04 | 1/2" | N 1/2" | 31,0 | 7/8" | 67,0 |
MALE SWIVEL ELBOW NPT & UNF
