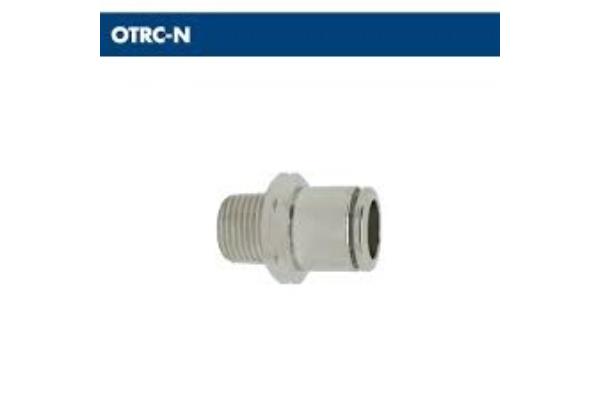

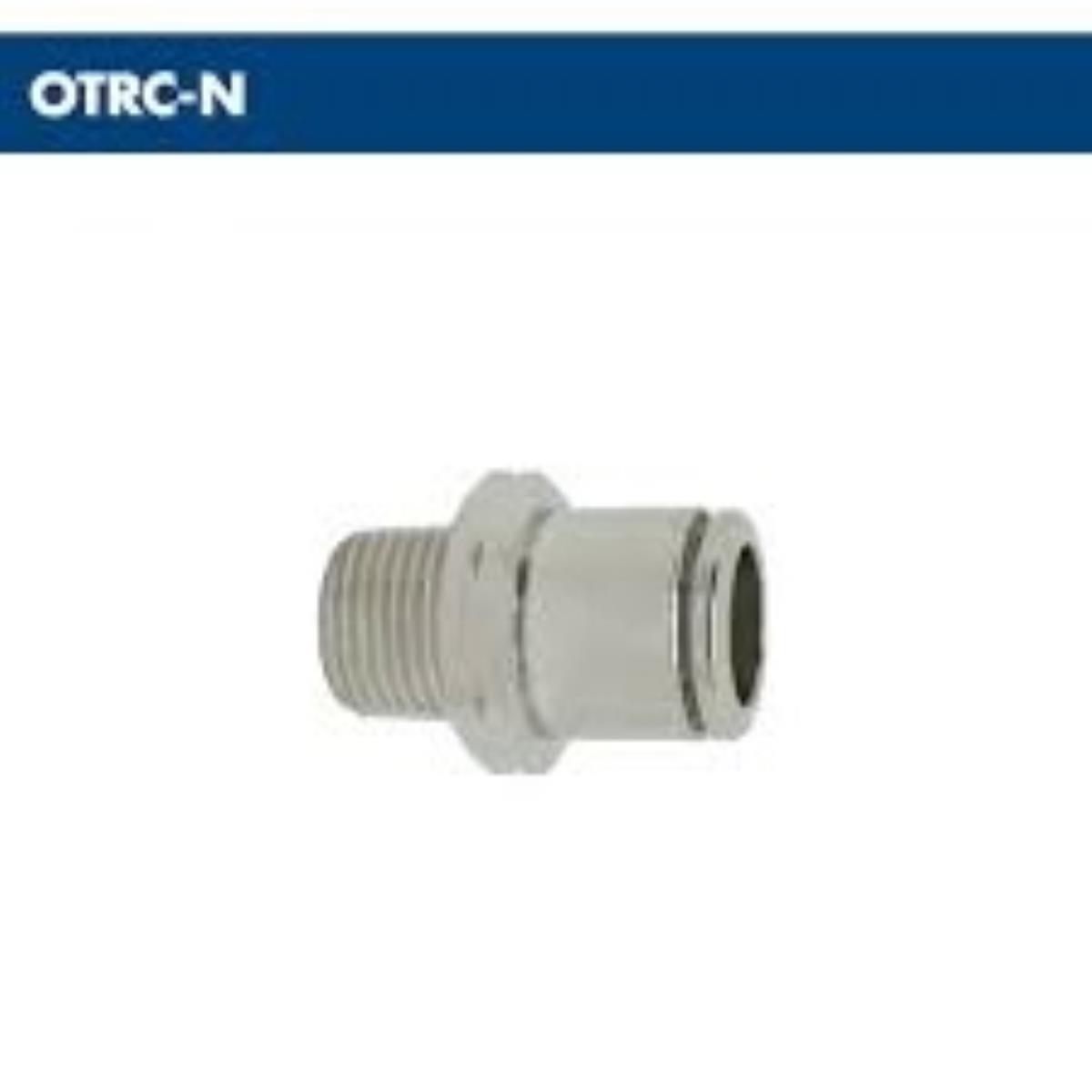

DIRITTO MASCHIO CONICO NPT NICHELATO
CATALOGO ON-LINE › RACCORDI PER ARIA COMPRESSA › RACCORDI E CONNESSIONI PER IMPIANTI PNEUMATICI › Serie 100 RACCORDI PNEUMATICI RAPIDI IN OTTONE NICHELATO SPINTORE METALLICO
Scarica scheda in formato pdf
Codice: art. 100_3 OTRC-N
art. 100_3 OTRC-N
Fluidi Compatibili: Aria · Aria Compressa · Vuoto · Pressione Esercizio: 16 Bar
Confezione standard 10 pezzi.
art. 100_3 OTRC-N
DIRITTO MASCHIO FILETTATO NPT in POLLICI in OTTONE NICHELATO
Temperatura Esercizio: da -20 ºC a 80 ºC
Materiali Costruttivi: Ottone nichelato UNI EN 12164 CW 614N e UNI EN 12165 CW 617N
Tubi Utilizzabili: Tubo Poliammide · Tubo Polietilene · Tubo PoliuretanoTipi Oring: NBR senza siliconeMateriali Costruttivi: Ottone nichelato UNI EN 12164 CW 614N e UNI EN 12165 CW 617N
Fluidi Compatibili: Aria · Aria Compressa · Vuoto · Pressione Esercizio: 16 Bar
Confezione standard 10 pezzi.
| CODICE | Tubo | filetto | Lunghezza | Chiave | PESO |
| inch | NPT | mm | CH | g | |
| OTRC532N01 | 5/32" | N1/8" | 19,0 | 7/16" | 9,0 |
| OTRC532N02 | 5/32" | N1/4" | 20,5 | 9/16" | 16,0 |
| OTRC1-4N01 | 1/4" | N1/8" | 22,5 | 1/2" | 11,0 |
| OTRC1-4N02 | 1/4" | N1/4" | 22,5 | 9/16" | 15,0 |
| OTRC516N01 | 5/16" | N1/8" | 27,0 | 9/16" | 15,5 |
| OTRC516N02 | 5/16" | N1/4" | 25,5 | 6/16" | 16,0 |
| OTRC516N03 | 5/16" | N3/8" | 23,5 | 11/16" | 25,0 |
| OTRC38N01 | 3/8" | N1/8" | 29,0 | 11/16" | 21,5 |
| OTRC38N02 | 3/8" | N1/4" | 30,0 | 11/16" | 25,0 |
| OTRC38N03 | 3/8" | N3/8" | 26,0 | 11/16" | 24,0 |
| OTRC38N04 | 3/8" | N1/2" | 27,0 | 7/8" | 46,0 |
| OTRC1-2N02 | 1/2" | N1/4" | 34,0 | 7/8" | 37,0 |
| OTRC1-2N03 | 1/2" | N3/8" | 34,5 | 7/8" | 39,0 |
| OTRC1-2N04 | 1/2" | N1/2" | 30,5 | 7/8" | 43,0 |
NICKEL PLATED NPT CONICAL MALE STRAIGHT
