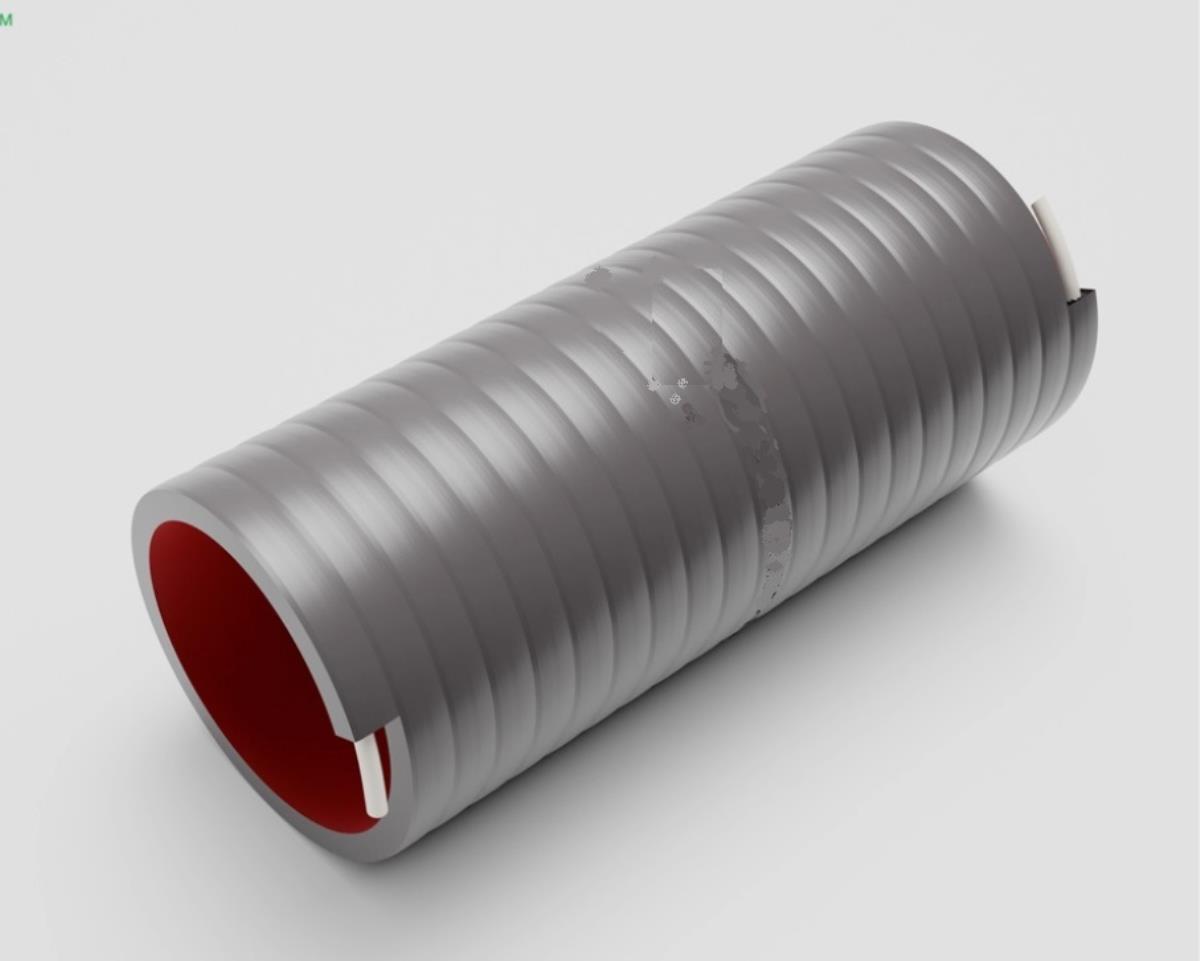

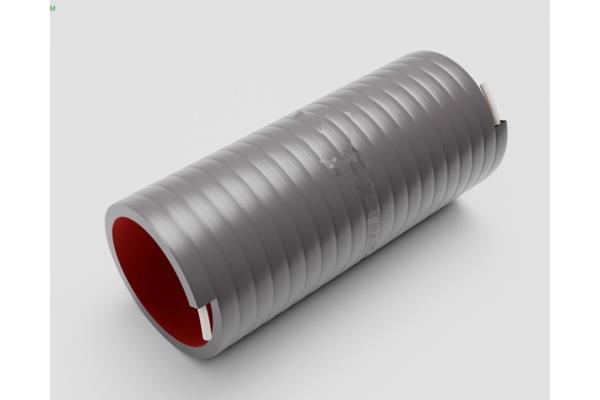

PVC hose internally coated with anti-abrasive TPU and reinforcement spiral in shock-proof rigid PVC .
Its robust structure, together with the polyurethane layer, is particularly suitable for use in harsh and highly abrasive conditions.
The antistatic version (available on request) is produced with brass-plated steel wire inserted into the plastic wall to respond even better to the needs of abrasion resistance even on the outside.

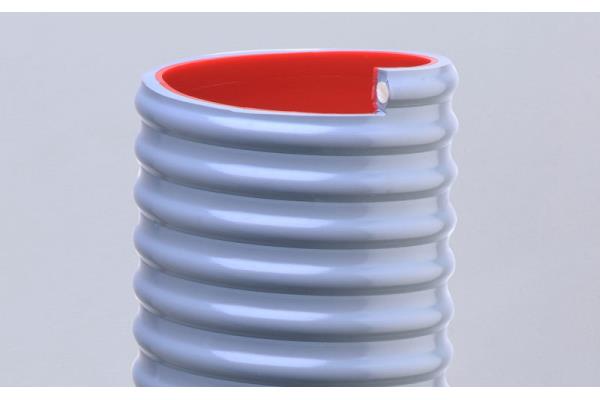

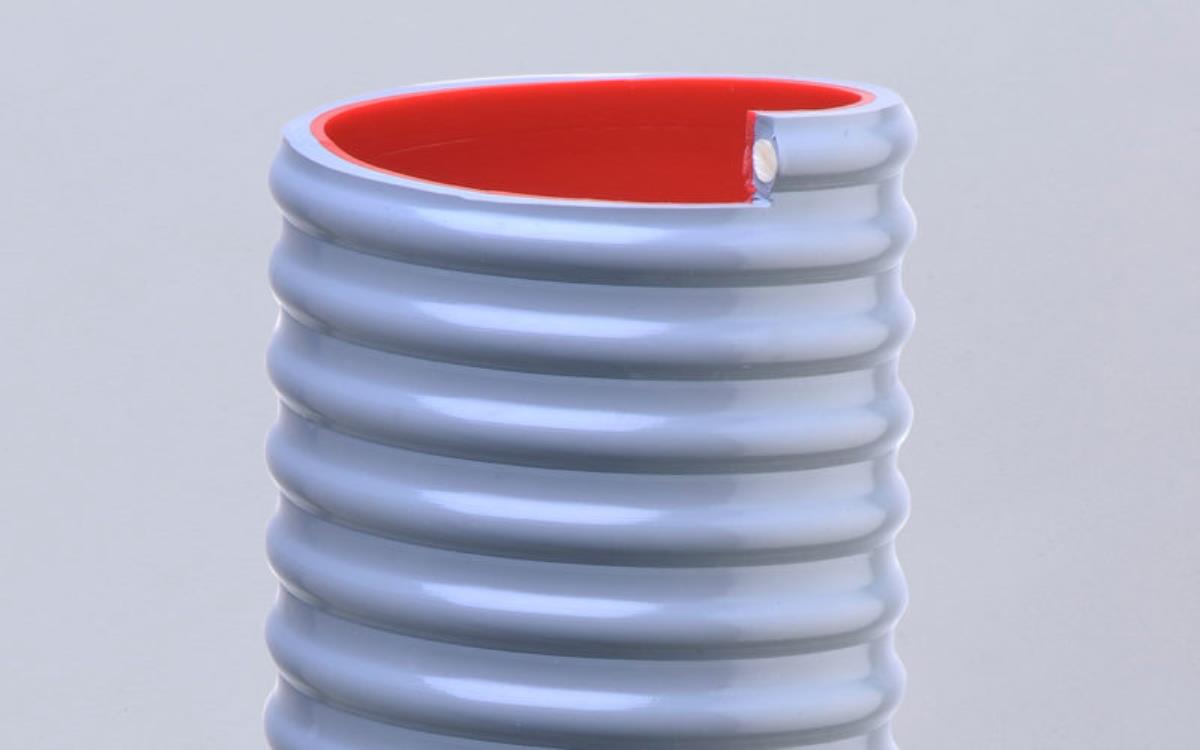

Wavy gray outer cover, smooth red interior. Operating temperature: -25°C +60°C.
FIELDS OF APPLICATION: construction, industry in general, for suction and delivery of abrasive liquids (sludge, sand, cement, grit, gravel).
Diameter hole internal mm | Weight g/m | Pressure of exercise Cafe | Pressure of explosion Cafe | Depression mH 2 O | radius of curvature mm | Roll m |
38 | 680 | 5 | 15 | 10 | 155 | 50 |
40 | 710 | 5 | 15 | 10 | 160 | 50 |
45 | 830 | 4 | 12 | 9 | 180 | 50 |
50 | 980 | 4 | 12 | 9 | 200 | 50 |
60 | 1230 | 4 | 12 | 9 | 200 | 50 |
63.5 | 1360 | 4 | 12 | 9 | 240 | 50 |
70 | 1570 | 4 | 9 | 9 | 280 | 50 |
76 | 1690 | 3 | 9 | 9 | 310 | 50 |
80 | 1790 | 3 | 9 | 9 | 320 | 50 |
90 | 2090 | 3 | 9 | 9 | 360 | 30 |
102 | 2700 | 3 | 9 | 8.5 | 410 | 30 |
110 | 2930 | 3 | 9 | 8.5 | 450 | 30 |
120 | 3270 | 2.5 | 7.5 | 8 | 480 | 30 |
127 | 3510 | 2.5 | 7.5 | 8 | 510 | 30 |
152 | 4730 | 2 | 6 | 8 | 610 | 20 |
