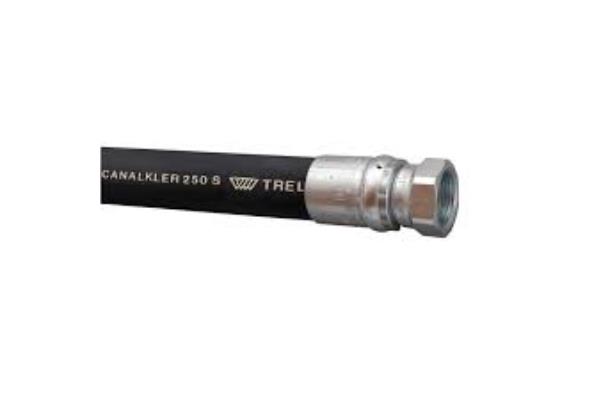

CANALKLER 250 S
ONLINE CATALOGUE › HOSES › Self-bleeder hoses
Download sheet in pdf format
Specific flexible rubber hose for heavy-duty sewerage and high-pressure water washing. Specific features of this product:
- Low flow resistance: higher speed in the sewer
- Longer lifespan
- Aramid reinforcement: greater safety
Advantages
Very low creep resistance which allows: greater cleaning efficiency, reduction of cleaning times and therefore reduction of fuel consumption. Greater durability thanks to the special covering compound with greater abrasion resistance. Better flexibility, even at low temperatures. Easy to handle and easy to use. Resistance to deformation. High resistance and safety thanks to the aramid reinforcement.
Inner tube: SBR, smooth, black.
Reinforcement: aramid fabric, woven.
Cover: SBR / NR, smooth. Very low creep resistance, black.
Working temperature range: -30° to +80° C
ZH 1/406 Approval (Guidelines for Fluid Spray Jets).
Additional Information
Supplied with test certificate on each factory assembled hose.
Joint fittings
All hoses are assembled with BSP female/BSP male.
All hose assemblies are pressure tested to 375 bar and have a unique hose number.
All hose assemblies are pressure tested to 375 bar and have a unique hose number.
| ID (mm) | OD(mm) | Operating pressure (bar) | Burst pressure (bar) | Bending radius (mm) | Weight (kg/m) | Length (m) | Item number |
13 | 25.6 | 250 | 625 | 70 | 0.45 | 40 | 5014178 |
13 | 25.6 | 250 | 625 | 70 | 0.45 | 60 | 5014179 |
13 | 25.6 | 250 | 625 | 70 | 0.45 | 80 | 5014180 |
13 | 25.6 | 250 | 625 | 70 | 0.45 | 100 | 5014916 |
13 | 25.6 | 250 | 625 | 70 | 0.45 | 120 | 5014005 |
19 | 31.6 | 250 | 625 | 90 | 0.61 | 40 | 5014181 |
19 | 31.6 | 250 | 625 | 90 | 0.61 | 80 | 5014182 |
19 | 31.6 | 250 | 625 | 90 | 0.61 | 100 | 5014459 |
19 | 31.6 | 250 | 625 | 90 | 0.61 | 120 | 5014006 |
25 | 39.3 | 250 | 625 | 100 | 0.9 | 40 | 5014183 |
25 | 39.3 | 250 | 625 | 100 | 0.9 | 50 | 5014874 |
25 | 39.3 | 250 | 625 | 100 | 0.9 | 80 | 5014184 |
25 | 39.3 | 250 | 625 | 100 | 0.9 | 100 | 5014238 |
25 | 39.3 | 250 | 625 | 100 | 0.9 | 120 | 5014007 |
25 | 39.3 | 250 | 625 | 100 | 0.9 | 150 | 5014461 |
25 | 39.3 | 250 | 625 | 100 | 0.9 | 160 | 5014185 |
25 | 39.3 | 250 | 625 | 100 | 0.9 | 180 | 5014186 |
25 | 39.3 | 250 | 625 | 100 | 0.9 | 200 | 5014520 |
25 | 39.3 | 250 | 625 | 100 | 0.9 | 240 | 5014733 |
32 | 47.6 | 250 | 625 | 130 | 1.12 | 40 | 5014187 |
32 | 47.6 | 250 | 625 | 130 | 1.12 | 80 | 5014188 |
32 | 47.6 | 250 | 625 | 130 | 1.12 | 120 | 5014008 |
32 | 47.6 | 250 | 625 | 130 | 1.12 | 150 | 5014466 |
32 | 47.6 | 250 | 625 | 130 | 1.12 | 160 | 5014189 |
32 | 47.6 | 250 | 625 | 130 | 1.12 | 180 | 5014190 |
32 | 47.6 | 250 | 625 | 130 | 1.12 | 200 | 5014655 |
38 | 54 | 250 | 500 | 155 | 1.35 | 120 | 5014009 |
