AUTOMATIC WALL MOUNTED HOSE REEL



Download sheet in pdf format

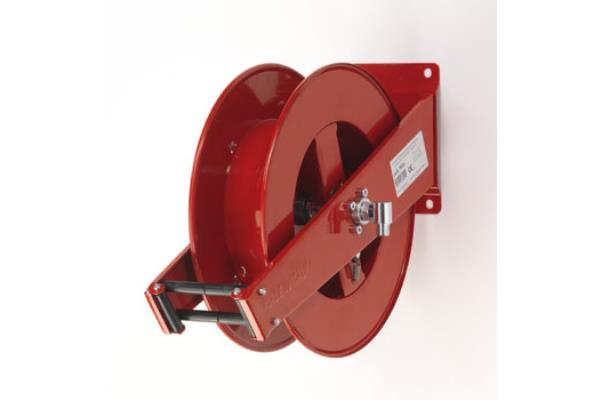

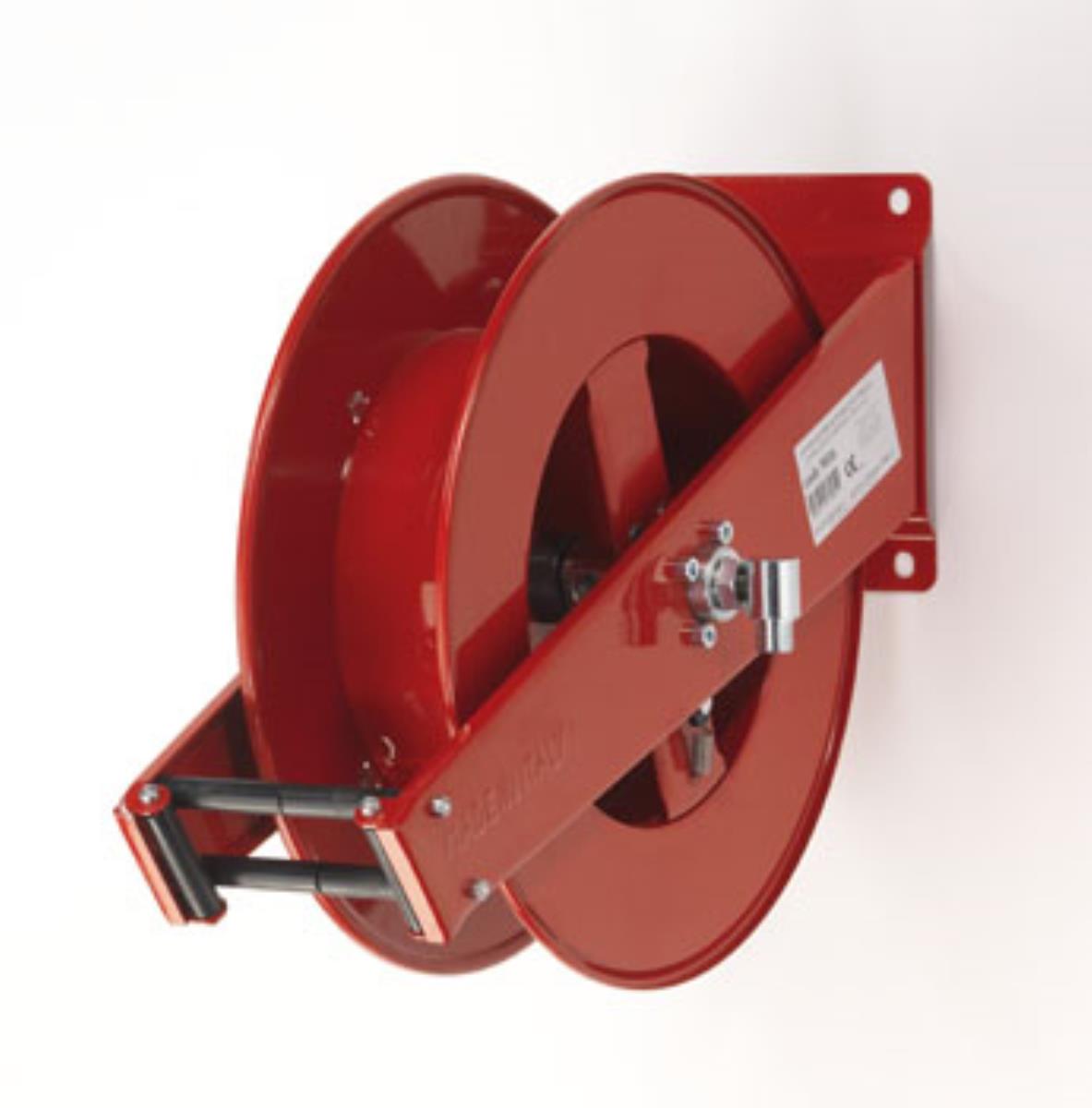

Spring-loaded hose reel in RED painted steel, suitable for use at distances of maximum 20m (with hose Ø 1/2" - 12.7mm) and maximum 25m (with hose Ø 3/8" - 9.52mm).

The reel comes standard without hose and can be used for rewinding oil, antifreeze, grease, air and water hoses.

On request, version with hydraulic brake-spring kit: i.e. a safety device for the controlled rewinding of the hose applicable on all spring hose reels, avoiding the dangers deriving from an uncontrolled release of the hose during use.

Adjustable wall bracket upon request.

Max pressure
Cafe
Attacks
-
in-out
Useful joint hole
mm
pipe diameter
OR
tube length
m
Weight

Kg
Width band
mm
Dimensions
(LPH)
mm
600 M 1/2"
-
F 1/2"
10 3/8" 15 13 120 260x570x450
1/2" 20 18 150 260x570x450
1/2" 25 19 150 260x570x450
100


M 1"
-
F 1"



20 3/4" 20 27 150 270x600x590
3/4" 25 30 200 370x640x600
3/4" 30 38 300 450x540x600
1" 20 29 150 270x600x590
1" 25 32 200 370x640x600
1" 30 40 300 450x540x600
