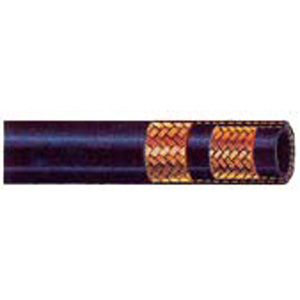

"CANALJET" HOSE FOR WELL CLEANING
ONLINE CATALOGUE › HOSES › Self-bleeder hoses
Download sheet in pdf format

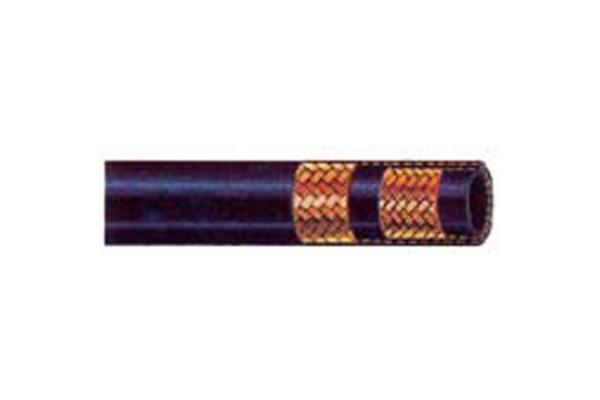

Rubber hose with double metal braid incorporated with steel reinforcement, smooth internal surface and canvas impression external surface. Rubber tube resistant to hydraulic, mineral and biological oils, water and water-emulsified oil mixtures.
Synthetic rubber cover resistant to atmospheric agents and abrasion.
Operating temperature. -40° +135° C, maximum discontinuous temperature 150° C.
Synthetic rubber cover resistant to atmospheric agents and abrasion.
Operating temperature. -40° +135° C, maximum discontinuous temperature 150° C.
| Code item | DN | Dimensions Ø mm | Dimensions Ø inch | Bar working pressure | Burst pressure Bar | Curvature radius mm | Weight g/m |
|---|---|---|---|---|---|---|---|
| 13GR2T000001/4 | 6 | 6.4x14.7 | 1/4" | 400 | 1600 | 100 | 0.360 |
| 13GR2T000005/16 | 8 | 7.9x16.3 | 5/16" | 350 | 1400 | 114 | 0.400 |
| 13GR2T000003/8 | 10 | 9.5x18.7 | 3/8" | 330 | 1320 | 127 | 0.510 |
| 13GR2T000001/2 | 12 | 12.7x21.8 | 1/2" | 275 | 1100 | 178 | 0.620 |
| 13GR2T000005/8 | 16 | 15.9x25.0 | 5/8" | 250 | 1000 | 200 | 0.715 |
| 13GR2T000003/4 | 20 | 19.0x29.0 | 3/4" | 215 | 860 | 240 | 0.955 |
| 13GR2T000001 | 25 | 25.4x36.8 | 1" | 165 | 650 | 300 | 1.32 |
