MULTI-TUBE EXTRAFLEX POLYURETHANE SPIRAL



Download sheet in pdf format

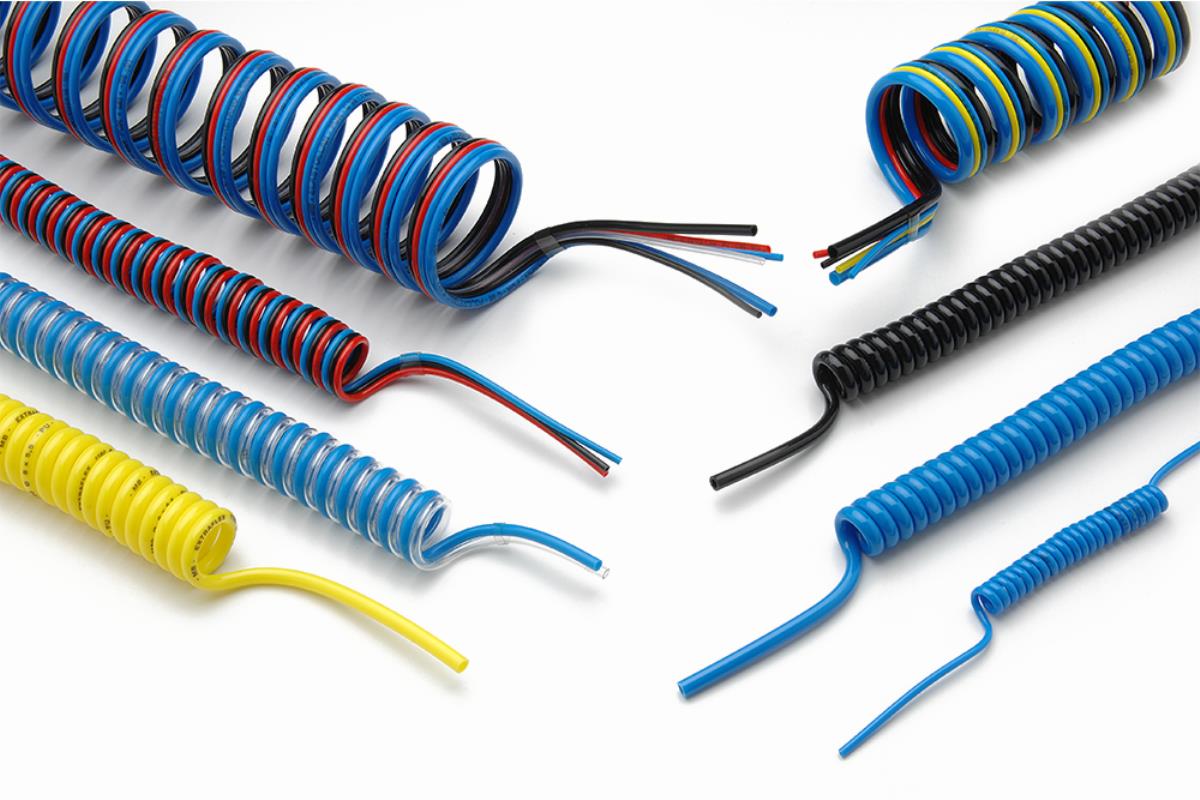

Spiral multitube made with heat-sealed ester polyurethane tubes of different colors to allow simple distinction of the circuits. The best solution to keep the tube bundle compact and compact.

Made with two types of processes: with a proprietary welding technique that fixes the tubes permanently, while allowing the individual tubes to be separated quickly and easily, and with the thermoforming process which exploits the ability of thermoplastic materials to "memorize" the shape impressed when exposed to heat. Standard products consist of tubes with different colors and shapes defined as follows, but customized solutions allow you to choose colors in any combination, mix different diameters and combine them in almost any configuration.

On request: Tubes of different diameters, Tubes of different colors. Polyurethane tubes of various products. Sheathed and heat-welded electrical cables. Different tube arrangement configurations.

2-PIPE MULTI-TUBE



OR
external (mm)

OR
internal (mm)

Spiral length
(m)

Spiral diameter
(mm)

Number
Of
coils

Meters
linear (m)

Length
operational (m)

SMT98C2X4X2

4

2

xx

xx

xx

xx

xx

SMT98C2.5X4X2

4

2.5

xx

xx

xx

xx

xx

SMT98C2.7X4.3X2

4.3

2.7

xx

xx

xx

xx

xx

SMT98C4X6X2

6

4

xx

xx

xx

xx

xx

3-PIPE MULTI-TUBE



OR
external (mm)

OR
internal (mm)

Spiral length
(m)

Spiral diameter
(mm)

Number
Of
coils

Meters
linear (m)

Length
operational (m)

SMT98C2X4X3

4

2

xx

xx

xx

xx

xx

SMT98C2.5X4X3

4

2.5

xx

xx

xx

xx

xx

SMT98C2.7X4.3X3

4.3

2.7

xx

xx

xx

xx

xx

SMT98C4X6X3

6

4

xx

xx

xx

xx

xx
