POLYURETHANE HOSES - EXTRAFLEX C98 HEAT-WELDED MULTITUBE
ONLINE CATALOGUE › HOSES › Hoses for Pneumatic Applications › POLYURETHANE - ELASTOLLAN - EXTRAFLEX HOSES
Download sheet in pdf format

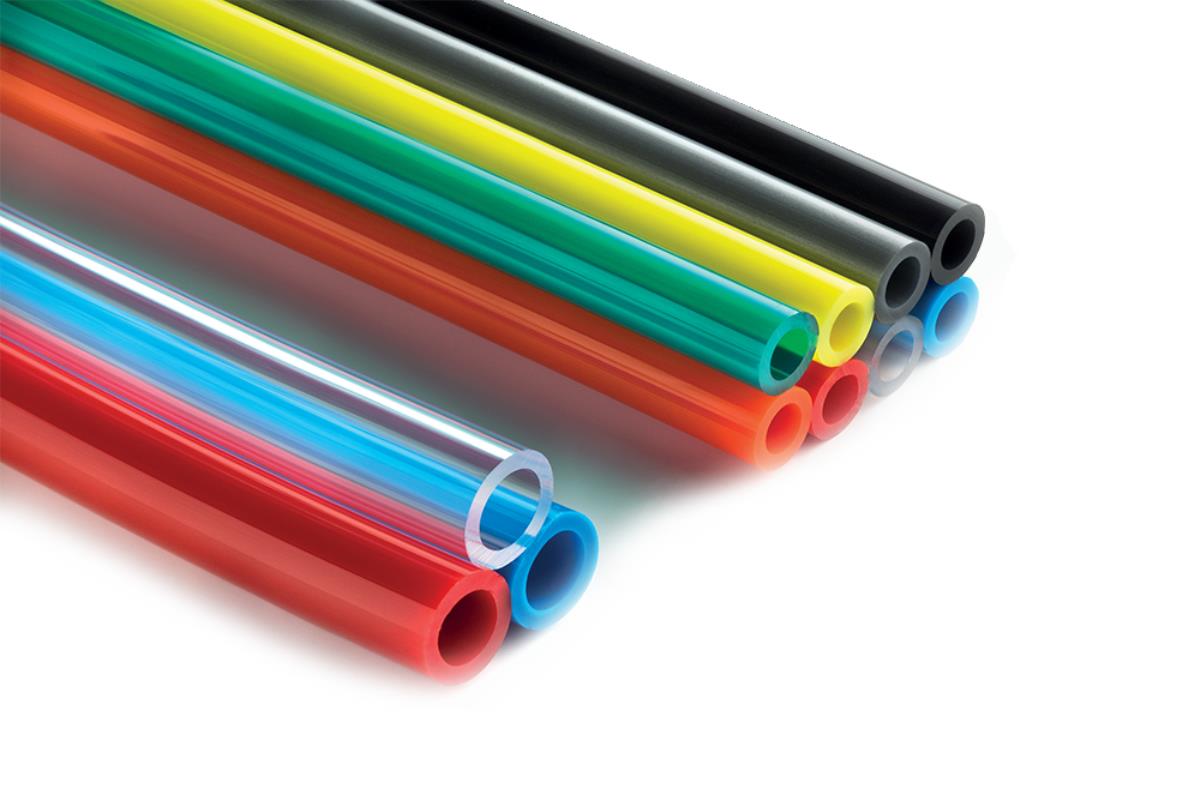

Heat-welded polyurethane multitube is made with a proprietary welding process technique that secures tubes permanently , while allowing individual tubes to be separated quickly and easily , leaving no residue. Standard products consist of tubes with different colors and shapes defined as follows, but customized solutions allow you to choose colors in any combination, mix different diameters and combine them in almost any configuration.
- Pipes of different diameters;
- Different color tubes;
- Pipes of various polyurethane products;
- Sheathed and heat-welded electrical cables;
- Different tube arrangement configurations;
- Multi-tube spirals
Standard lengths: 25-50-100 m
MULTI-PIPE CONFIGURATION
2-PIPE MULTI-TUBE
ITEM | External Ø (mm) | Internal Ø (mm) | Bending radius (mm) | Working pressure (BAR) | STANDARD (mm) |
MT98C2X4X2 | 4 | 2 | xx | 22 | 8x4 |
MT98C2.5X4X2 | 4 | 2.5 | xx | 15 | 8x4 |
MT98C2.7X4.3X2 | 4.3 | 2.7 | xx | 15 | 8.6x4.3 |
MT98C4X6X2 | 6 | 4 | xx | 14 | 12x6 |
MT98C5.5X8X2 | 8 | 5.5 | xx | 12 | 16x8 |
MT98C6X8X2 | 8 | 6 | xx | 11 | 16x8 |
MT98C8X10X2 | 10 | 8 | xx | 8 | 20x10 |
MT98C9X12X2 | 12 | 9 | xx | 9 | 24x12 |
3-PIPE MULTI-TUBE
ITEM | External Ø (mm) | Internal Ø (mm) | Bending radius (mm) | Working pressure (BAR) | dimensions | inline dimensions (mm) |
MT98C2.5X4X3 | 4 | 2.5 | xx | 15 | - | 12x4 |
MT98C4X6X3 | 6 | 4 | xx | 14 | 12x10 | 18x6 |
MT98C6X8X3 | 8 | 6 | xx | 11 | 16x14 | 24x8 |
MT98C8X10X3 | 10 | 8 | xx | 8 | 30x10 | 20x17 |
4-PIPE MULTI-TUBE
ITEM | External Ø (mm) | Internal Ø (mm) | Min bending radius (mm) | Max working pressure (BAR) | dimensions | dimensions |
MT98C2.5X4X4 | 4 | 2.5 | xx | 15 | 8x8 | 16x4 |
MT98C4X6X4 | 6 | 4 | xx | 14 | 12x12 | 24x6 |
MT98C6X8X4 | 8 | 6 | xx | 11 | 16x16 | - |
5-PIPE MULTI-TUBE
ITEM | External Ø (mm) | Internal Ø (mm) | Min bending radius (mm) | Max working pressure (BAR) | dimensions |
MT98C4X6X5 | 6 | 4 | xx | 14 | 12x15 |
6-PIPE MULTI-TUBE
ITEM | External Ø (mm) | Internal Ø (mm) | Min bending radius (mm) | Max working pressure (BAR) | dimensions | dimensions |
MT98C4X6X6 | 6 | 4 | xx | 14 | 18x12 | 36x6 |
MT98C6X8X6 | 8 | 6 | xx | 11 | 24x16 | 48x8 |
8-PIPE MULTI-TUBE
ITEM | External Ø (mm) | Internal Ø (mm) | Min. bending radius | Max. working pressure | dimensions |
MT98C2.5X4X8 | 4 | 2.5 | xx | 15 | 16x8 |
MT98C4X6X8 | 6 | 4 | xx | 14 | 24x12 |
MT98C6X8X8 | 8 | 6 | xx | 11 | 32x16 |
MULTI-TUBE WITH 10 TUBES
ITEM | External Ø (mm) | Internal Ø (mm) | Min bending radius (mm) | Max. working pressure | dimensions |
MT98C2.5X4X10 | 4 | 2.5 | xx | 15 | 20x8 |
MT98C4X6X10 | 6 | 4 | xx | 14 | 30x12 |
MT98C6X8X10 | 8 | 6 | xx | 11 | 40x16 |
MULTITUBE WITH 12 TUBES
ITEM | External Ø (mm) | Internal Ø (mm) | Min bending radius (mm) | Max working pressure (BAR) | dimensions | dimensions |
MT98C2.5X4X12 | 4 | 2.5 | xx | 15 | 24x8 | 48x4 |
MT98C4X6X12 | 6 | 4 | xx | 14 | 36x12 | 72x6 |
MT98C6X8X12 | 8 | 6 | xx | 11 | 48x16 | 96x8 |
